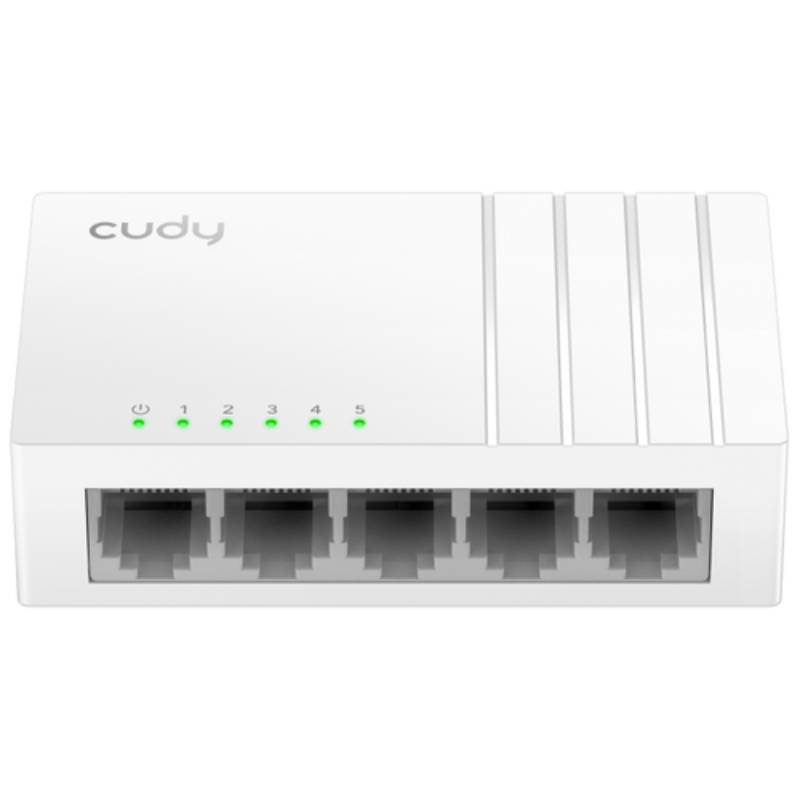

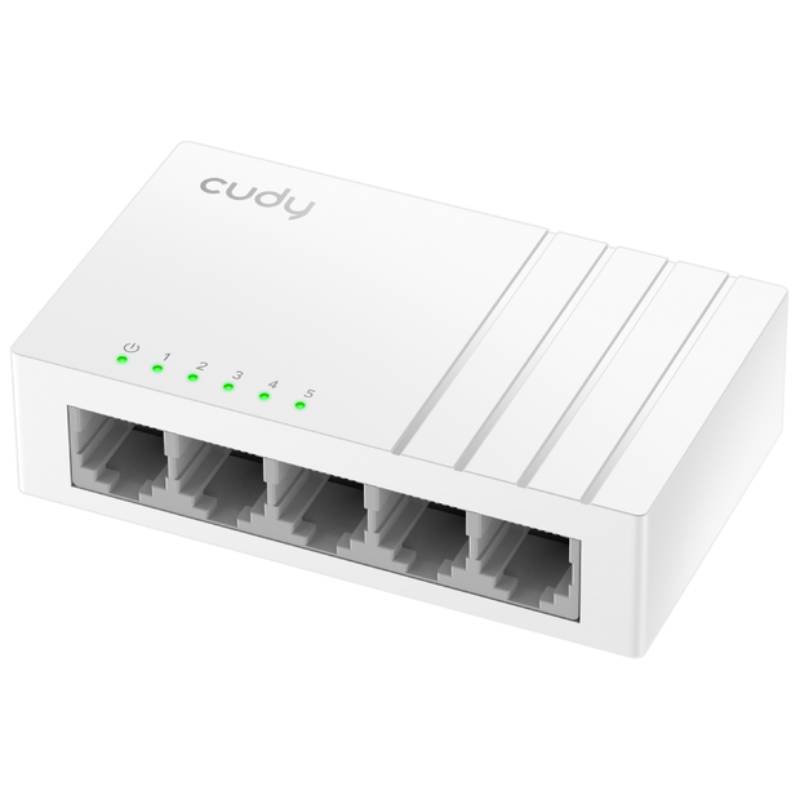

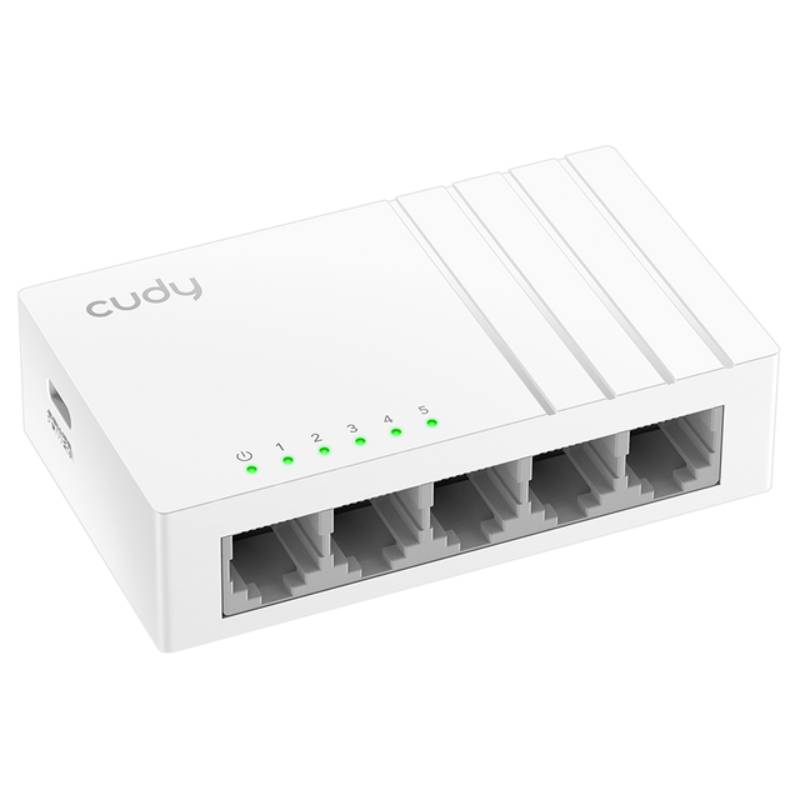

GS105U - 5-Port Gigabit Ethernet Switch with USB-C Power Jack 1.0
An Ethernet switch powered by USB-C, ideal for sharing a wired network on a desktop.
 |
Powering via USB-C |
 |
5× Gigabit Ethernet Ports |
 |
3 Mbit Packet Buffer |
 |
Max 2W, Idle 1.4W |
 |
Desktop, Wall-Mount |
 |
88×52.5×24 mm |
|
Specidicatins: |
|
Model Version |
GS105U 1.0 |
|
Interfaces |
5 Gigabit RJ45 Ports |
|
LEDs |
Power, Speed/Link/ACT of Each Ethernet Port |
|
Power Input |
USB-C Port |
|
Copper Speed and Distance |
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 140 meters at Gigabit |
|
MAC Address Table |
2048 |
|
Max Switching Capacity |
10 Gbps |
|
Max Forwarding Rate |
7.44 Mpps |
|
Jumbo Frame |
15 KB |
|
Packet Buffer |
3 Mbit |
|
Basic Power Saving |
True |
|
Power Methods |
DC via USB-C Jack, DC5V 0.55A |
|
Power Adapter Input |
100V - 240V, 50Hz |
|
Power Adapter Output |
5V, 0.55A |
|
Max Power Consumption |
2W |
|
Idle Power Consumption |
1.4W |
|
Operating Temperature |
0℃ ~ 40℃ |
|
Storage Temperature |
-40℃ ~ 70℃ |
|
Operating Humidity |
10% ~ 90% non-condensing |
|
Storage Humidity |
5% ~ 90% non-condensing |
|
Dimensions |
88×52.5×24 mm |
|
Product Weight |
53 g |
|
Casing Material |
Plastic |
|
Installation |
Desktop, Wall-mount |
|
Retail Package Dimension |
92×89×48 mm |
|
Retail Package Weight (EU) |
124 g |
