WR6500H - BE6500 2.5G Wi-Fi 7 Router 1.0
A dual-band WiFi 7 router with an aggregate of 6.5 Gbps speed, one 2.5G WAN, and four Gigabit LAN, catering to multi-Gig internet access, gaming, and entertainment scenarios.
 |
Broadcom 2 GHz Quad-Core CPU |
 |
6-Stream Dual-Band Wi-Fi 7 |
 |
5765 Mbps + 688 Mbps Wi-Fi |
 |
1× 2.5GbE and 4× GbE |
 |
200 Connected Devices 2 |
 |
Covers 140 m² (1,500 ft²) 3 |
 |
VPN Server and Client |
 |
Cudy App, Cloud Control |
|
Specifications : |
|
Model Version |
WR6500H 1.0 |
|
CPU |
2.0 GHz Quad-core, ARM Cortex-A7 |
|
Flash/ROM |
128 MB (1 Gbit) NAND |
|
DDR/RAM |
512 MB (4 Gbit) DDR4 |
|
5 GHz Wi-Fi Speed |
5765 Mbps |
|
2.4 GHz Wi-Fi Speed |
688 Mbps |
|
5 GHz Wi-Fi Streams |
4T4R (4×4 MIMO) |
|
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|
Wi-Fi Antennas |
6× Fixed |
|
5 GHz Antenna Gain Max |
5.27 dBi |
|
2.4 GHz Antenna Gain Max |
5.19 dBi |
|
FEM or PA/LNA |
5 GHz: 4× External
2.4 GHz: 2× Internal |
|
Beamforming |
True |
|
Range Performance |
Max: 240 m (787 ft)
Indoor WiFi range varies depending on the layout and wall materials. |
|
Wall Performance |
Two wooden walls < 10 cm
One concrete wall < 20 cm or two concrete walls < 10 cm |
|
2.5G RJ45 Ports |
1 |
|
Gigabit RJ45 Ports |
4 |
|
Ethernet Notes |
The 2.5G port is WAN, Gigabit ports are LAN |
|
LED |
System
Internet
Wi-Fi
WPS |
|
Physical Buttons |
Power On/Off
WPS
Reset |
|
Power Input |
DC Jack |
|
Power Methods |
DC |
|
DC |
12V 1.5A |
|
Power Adapter |
Input: 100–240V, 50/60 Hz AC
Output: 12V 1.5A DC |
|
Max Power Consumption |
17W |
|
Environment |
Operating Temp: 0–40°C (32–104°F)
Storage Temp: -40–70°C (-40–158°F)
Humidity: 10–90% (non-condensing)
Storage Humidity: 5–95% (non-condensing) |
|
Certifications |
FCC, CE |
|
Installation |
Desktop, Wall-mount |
|
Dimension |
253×152.5×48.2 mm |
|
Product Weight |
580.4 g |

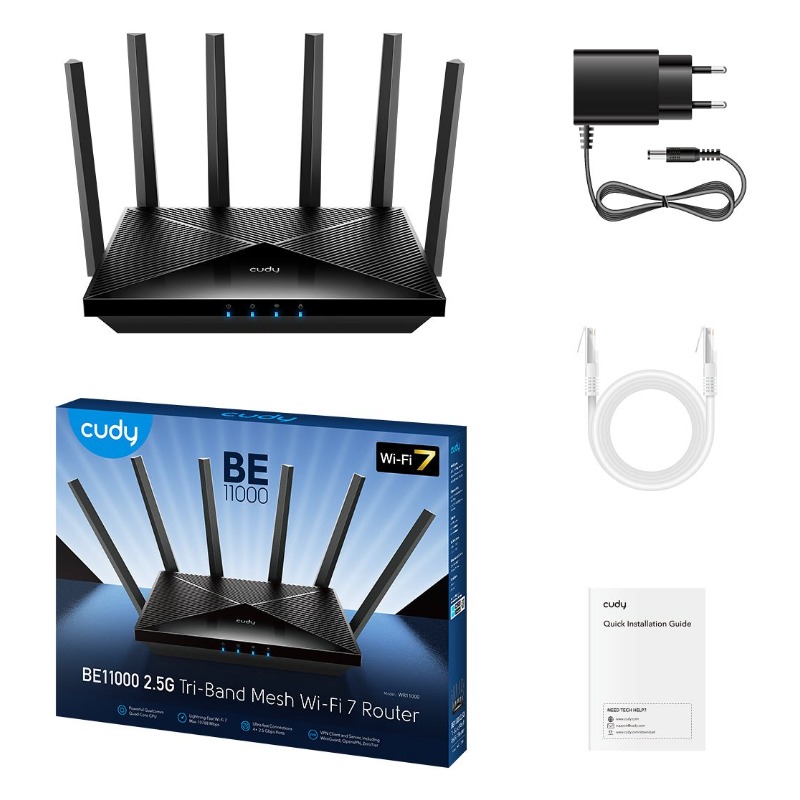

| Package Contents: |
|---|
| 1 x wr6500h
|
| 1 x Power Adapter 12v 1.5A
|
| 1 x Ethernet Cable
|
| 1 x User Guide |
|
