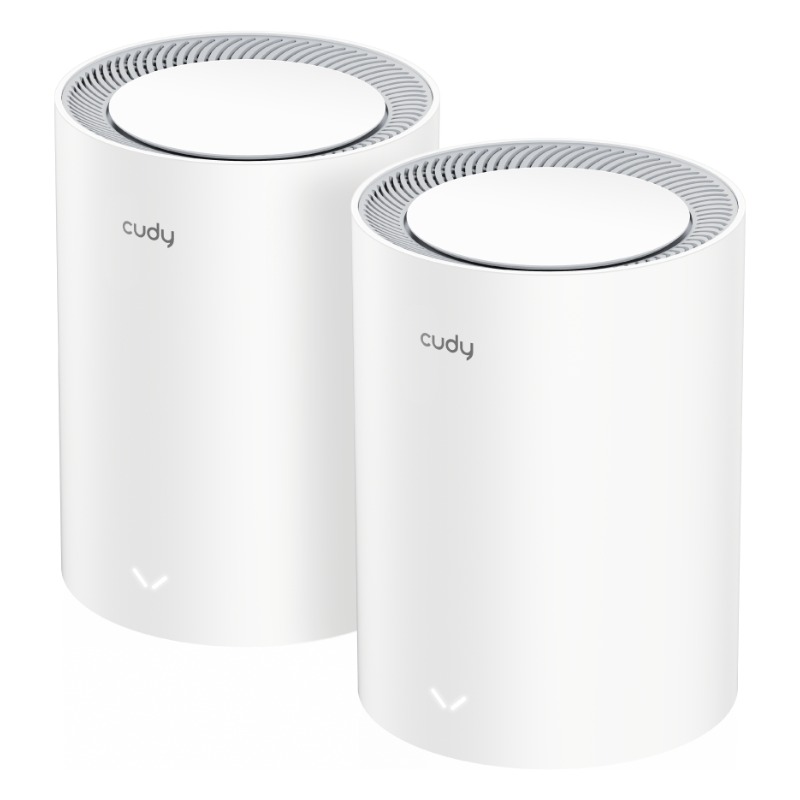

M3000(2-Pack) - AX3000 2.5G Mesh Wi-Fi 6 System White v2.0
A mesh WiFi 6 system with five antennas to provide a super-fast network for large homes with 4K streaming and gaming demands.
Suitable for internet access up to 2.5 Gbps.
 |
1.3 GHz Dual-Core CPU
|
 |
4-Stream Dual-Band Wi-Fi 6
|
 |
2402 Mbps + 574 Mbps Wi-Fi 1
|
 |
200 Connected Devices 2
|
 |
Fast Roaming
|
 |
Cudy Mesh, VPN Server and Client
|
 |
Multi-Band Simultaneous Backhaul
|
 |
Cudy App, Cloud Control
|
|
Specifications: |
|
Model Version |
M3000(2-Pack) v2.0 |
|
CPU |
CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53 |
|
Memory/Storage |
Flash/ROM: 128 MB (1 Gbit) NAND |
|
DDR/RAM |
256 MB (2 Gbit) DDR3 |
|
Wireless |
5 GHz Wi-Fi Speed: 2402 Mbps |
|
|
2.4 GHz Wi-Fi Speed: 574 Mbps |
|
|
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) |
|
|
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) |
|
|
Wi-Fi Antennas: 5× Internal |
|
|
5 GHz Antenna Gain Max: 5.1dBi |
|
|
2.4 GHz Antenna Gain Max: 4.2dBi |
|
FEM or PA/LNA |
5 GHz: 3× Internal
2.4 GHz: 2× Internal |
|
Beamforming |
True |
|
Range Performance |
Max: 220 m Actual WiFi range may vary |
|
Wall Performance |
Two wooden walls with thickness < 10 cm
One concrete wall with thickness < 20 cm
Two concrete walls with thickness < 10 cm |
|

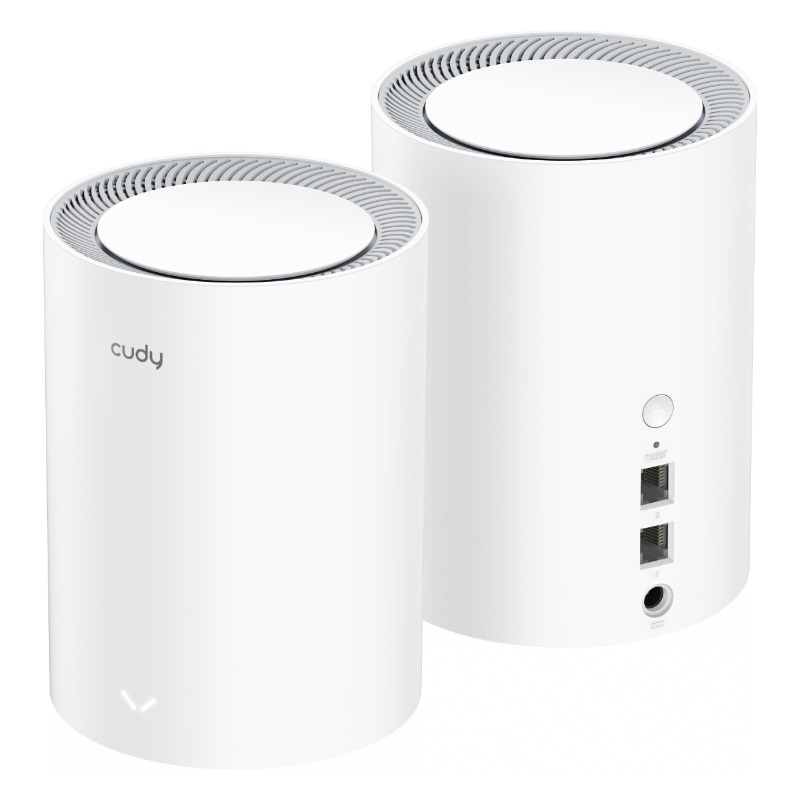

Interfaces |
2.5G RJ45 Ports: 1
Gigabit RJ45 Ports: 1 |
|
Ethernet Notes |
The 2.5G port is the WAN port, the Gigabit port is LAN port |
|
LED |
System
Speed/Link/ACT of Ethernet Port |
|
Physical Buttons |
WPS Button
Reset Button |
|
Power Input |
DC Jack |
|
Power |
Power Methods: DC
DC: 12V 1A |
|
Power Adapter |
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
|
Max Power Consumption (W) |
11.5W |
|
Idle Power Consumption (W) |
4.2W |
|
Environmental |
Operating Temperature: 0 ℃ ~ 40 ℃
Storage Temperature: -40 ℃ ~ 70 ℃
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing |
|
Certifications |
FCC, CE |
|
Mechanical |
Installation: Desktop |
|
Dimension |
Φ110×154.5 mm
Φ4.33×6.08 inches |
|
Product Weight |
720 g |
