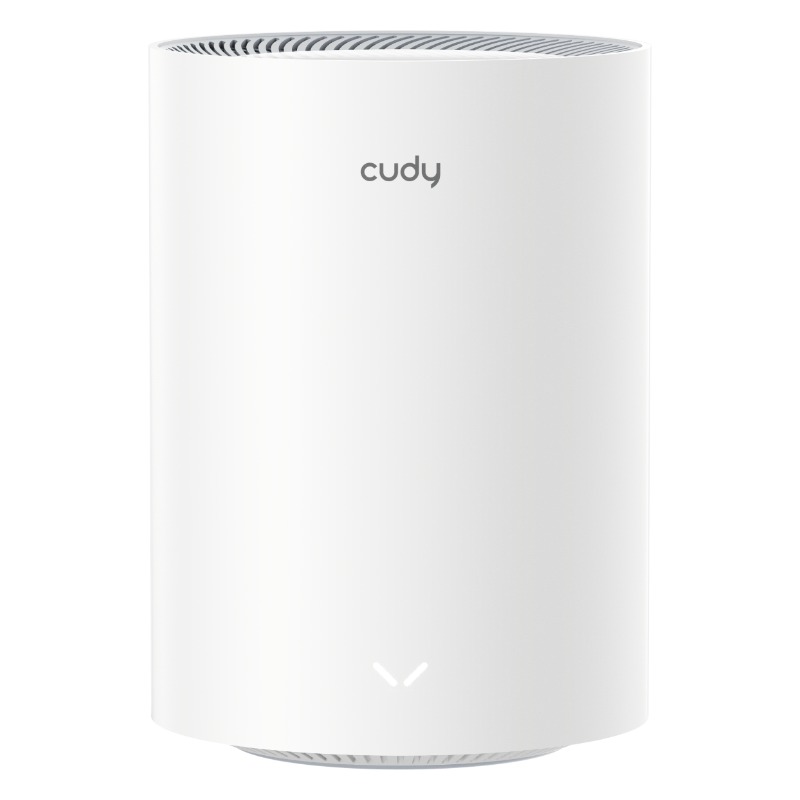

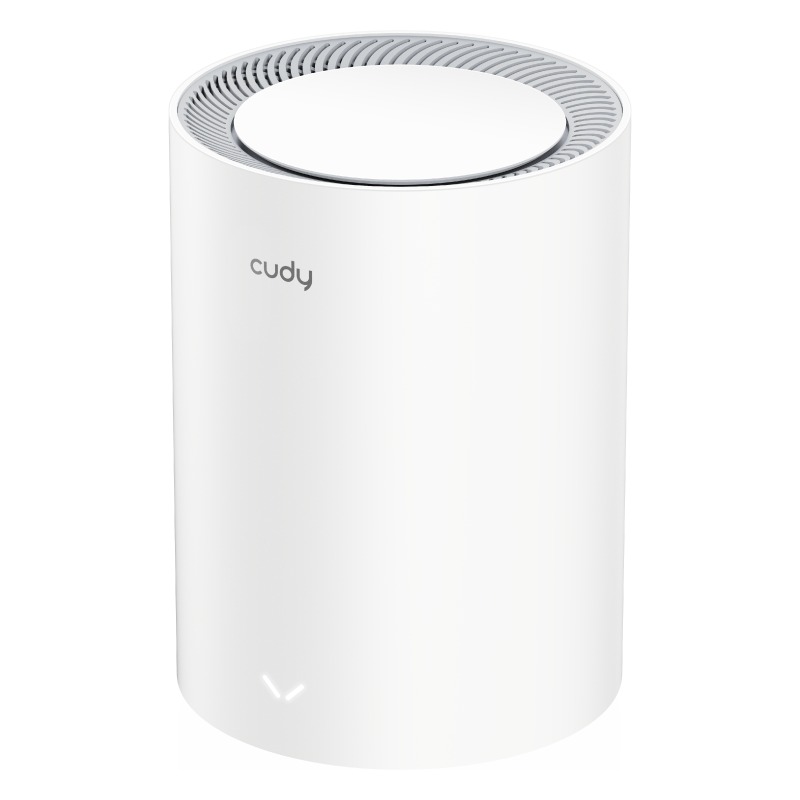

M3600(1-Pack) - BE3600 Gigabit Mesh Wi-Fi 7 System v1.0
A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and three Gigabit ports, catering to large home with Gigabit Internet access.
 |
2.0 GHz Quad-Core, ARM Cortex-A7
|
 |
4-Stream Dual-Band Wi-Fi 7
|
 |
2882 Mbps + 688 Mbps Wi-Fi
|
 |
200 Connected Devices 2
|
 |
3× Gigabit Ethernet Ports
|
 |
Cudy Mesh, VPN Server and Client
|
 |
Multi-Band Simultaneous Backhaul
|
 |
Cudy App, Cloud Control
|
|
Specifications: |
|
Model Version |
M3600 v1.0 |
|
CPU |
2.0 GHz Quad-Core, ARM Cortex-A7 |
|
Flash/ROM |
128 MB (1 Gbit) NAND |
|
DDR/RAM |
512 MB (4 Gbit) DDR3L |
|
5 GHz Wi-Fi Speed |
2882 Mbps |
|
2.4 GHz Wi-Fi Speed |
688 Mbps |
|
5 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|
Wi-Fi Antennas |
4× Internal |
|
5 GHz Antenna Gain Max |
5.5dBi |
|
2.4 GHz Antenna Gain Max |
5.4dBi |
|
FEM or PA/LNA |
5 GHz: 2× External
2.4 GHz: 2× Internal |
|
Beamforming |
True |
|
Range Performance |
Max: 220 m |
|
Wall Performance |
Two wooden walls <10 cm
One concrete wall <20 cm
Two concrete walls <10 cm |
|
Indoor Coverage Reference |
2 Pack: 200 m²
3 Pack: 270 m² |
|

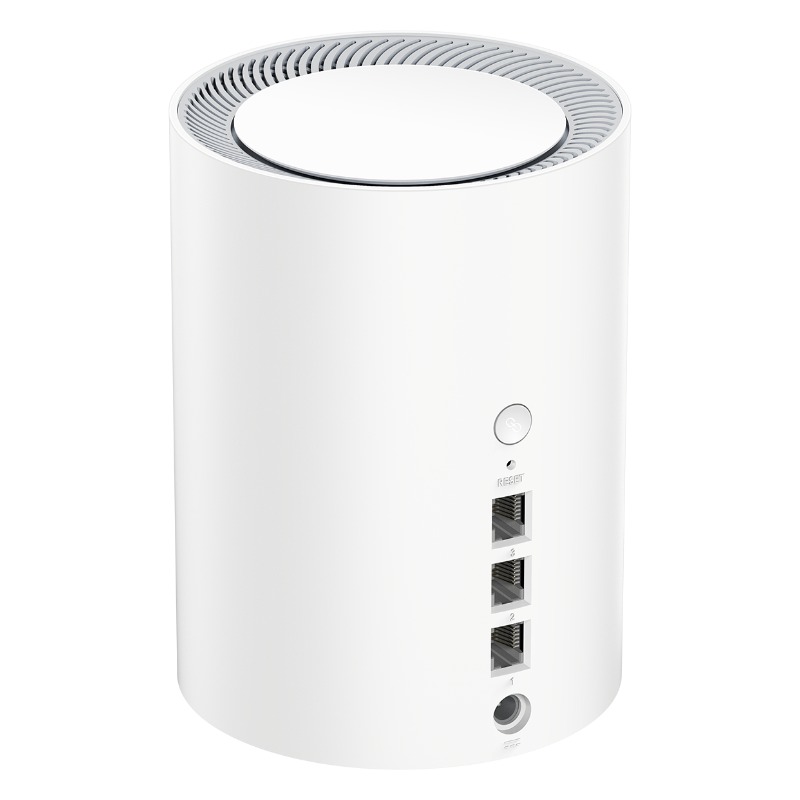

Gigabit RJ45 Ports |
3 |
|
Ethernet Notes |
1× WAN port, 2× LAN ports |
|
LED |
System
Speed/Link/ACT of Ethernet Port |
|
Physical Buttons |
WPS Button
Reset Button |
|
Power Input |
DC Jack |
|
Power Methods |
DC |
|
DC |
12V 1A |
|
Power Adapter |
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
|
Max Power Consumption |
9W |
|
Operating Temperature |
0 ℃ ~ 40 ℃ |
|
Storage Temperature |
-40 ℃ ~ 70 ℃ |
|
Humidity |
10% ~ 90% non-condensing |
|
Storage Humidity |
5% ~ 95% non-condensing |
|
Certifications |
FCC, CE |
|
Installation |
Desktop |
|
Dimension |
Φ110×154.5 mm |
