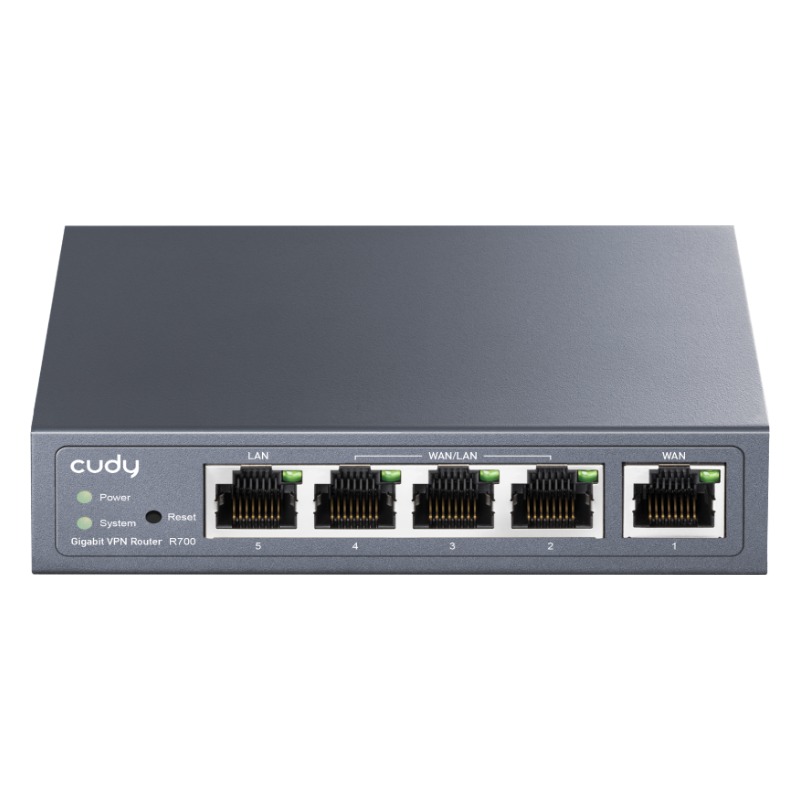

R700 - Gigabit Multi-WAN Router v1.0
A router as the gateway of business networks, featuring up to four Multi-WAN for improved redundancy, load balancing, and VPN functions.
 |
1× GbE WAN, 3× GbE WAN/LAN, 1× GbE LAN |
 |
Load Balance or Link Backup Modes |
 |
VPN, Firewall, Routing |
|
Model Version |
|
R700 |
1.0 |
|
CPU |
|
CPU Details |
880 MHz Dual-Core |
|
Memory/Storage |
|
Flash/ROM |
16 MB (128 Mbit) NOR |
|
DDR/RAM |
128 MB (1 Gbit) DDR3 |
|
Interfaces |
|
Gigabit RJ45 Ports |
5 |
|
Ethernet Notes |
1× WAN Port, 3× WAN/LAN Ports, 1× LAN Port |
|
LED |
Power
System
Speed/Link/ACT of Ethernet Port |
|
Physical Buttons |
Reset Button |
|
Power |
|
Power Input |
DC Jack |
|
Power Methods |
DC 12V 1A |
|
Power Adapter |
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
|
Reliability |
|
Environment |
Operating Temperature: 0 ℃ ~ 40 ℃
Storage Temperature: -40 ℃ ~ 70 ℃
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing |
|
Grounding Methods |
Grounding Point |
|
Certifications |
FCC, CE |
|
Mechanical |
|
Installation |
Desktop
Wall-mount |
|
Casing Material |
Metal |
|
Dimension |
119×85×28 mm |
|
Product Weight |
273 g |
| Package Contents: |
|---|
| 1 x R700 v1.0
|
| 1 x Power Adapter 12V, 1A
|
| 1 x Ethernet Cable
|
| 1 x User Guide |
| Additional Images: |
|---|
 |
 |
|
|
|
