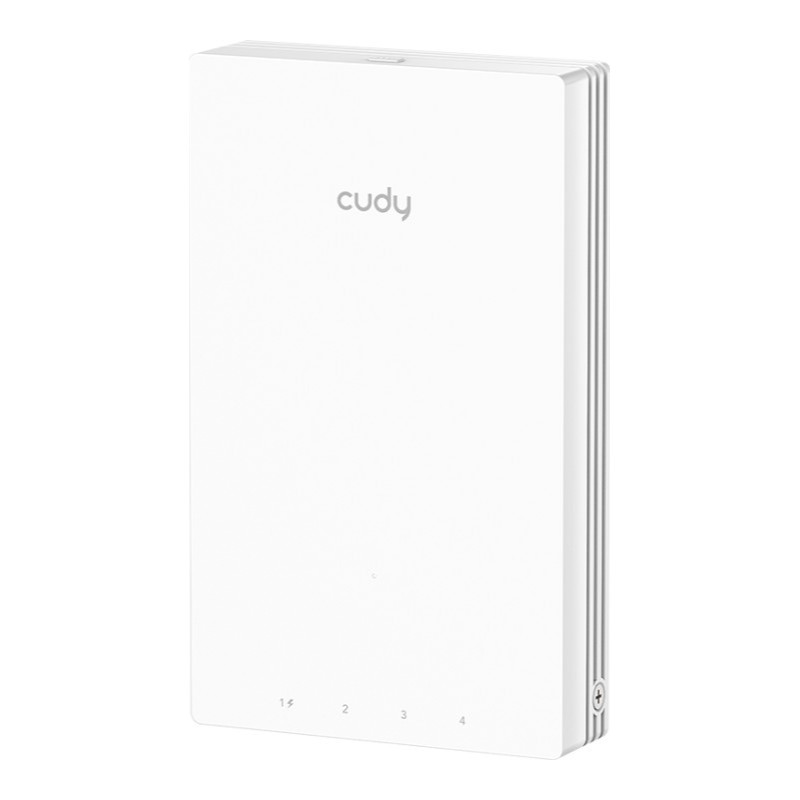

Cudy AP3000 Wall, Wall-Plate Wi-Fi 6 Access Point, AX3000 v1
[3722][AP3000 Wall]

Price: 60,53€

Order or Qty		Price
> 500€	5+	59,92€
> 1000€	10+	59,32€
> 2000€	20+	58,71€
> 5000€	40+	58,11€
> 10000€	100+	57,50€

Prices exclude VAT

In Stock: 2

Available quantity within
3-5 working days: 55

Order Qty:

UPC:	6971690793395

AP3000 Wall - Wall-Plate Wi-Fi 6 Access Point, AX3000 v1

An in-wall WiFi 6 AP with a built-in 5-GbE switch ideal for covering a room or ensuite in hospitality environments. One PoE output allows for connecting an IP phone or other PSE-enabled devices.

	1.3 GHz Dual-Core CPU
	4-stream dual-band Wi-Fi 5
	2402 Mbps + 574 Mbps Wi-Fi

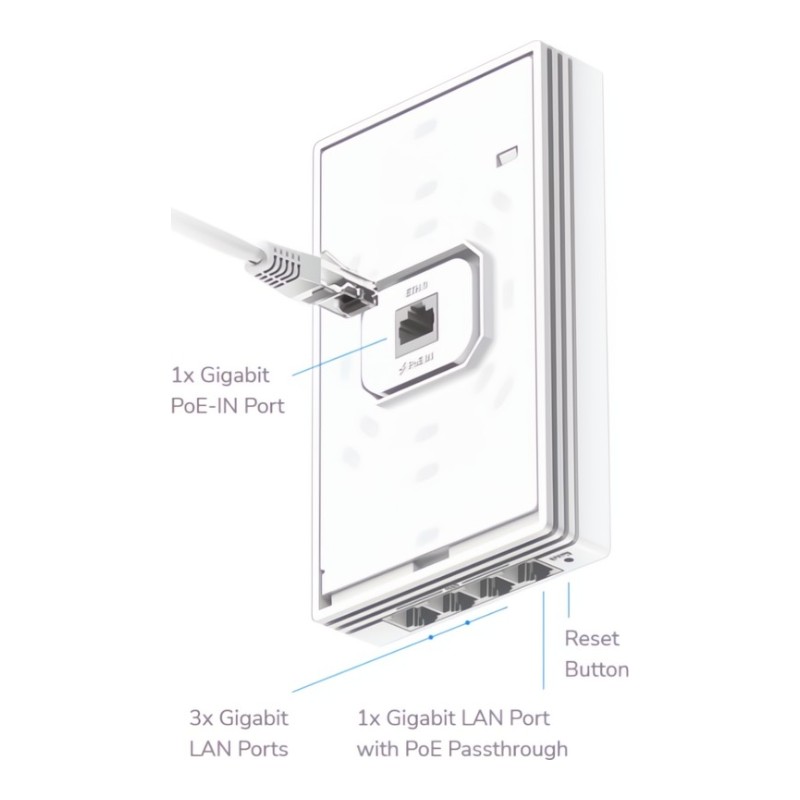

	1× GbE PoE In, 1× GbE PoE Out, 3× GbE
	802.3at/af, Passive PoE
	PoE Passthrough
	60 Connected Devices
	Modes : AP/MESH

Product Links:
Product Page	Datasheet	Quick Start Guide

Specifications:
CPU	1.3 GHz Dual-Core
RAM	256 MB DDR3
Storage	128 MB NAND Flash
WiFi Standard	AX3000 (WiFi 6)
Wireless Interface
5 GHz Speed	2402 Mbps (2x2 MIMO + Extra Stream)
2.4 GHz Speed	574 Mbps (2x2 MIMO)
Antennas	3x Internal
Beamforming	Supported
Range Performance	Max: 80 m (Open space)
Networking & Power

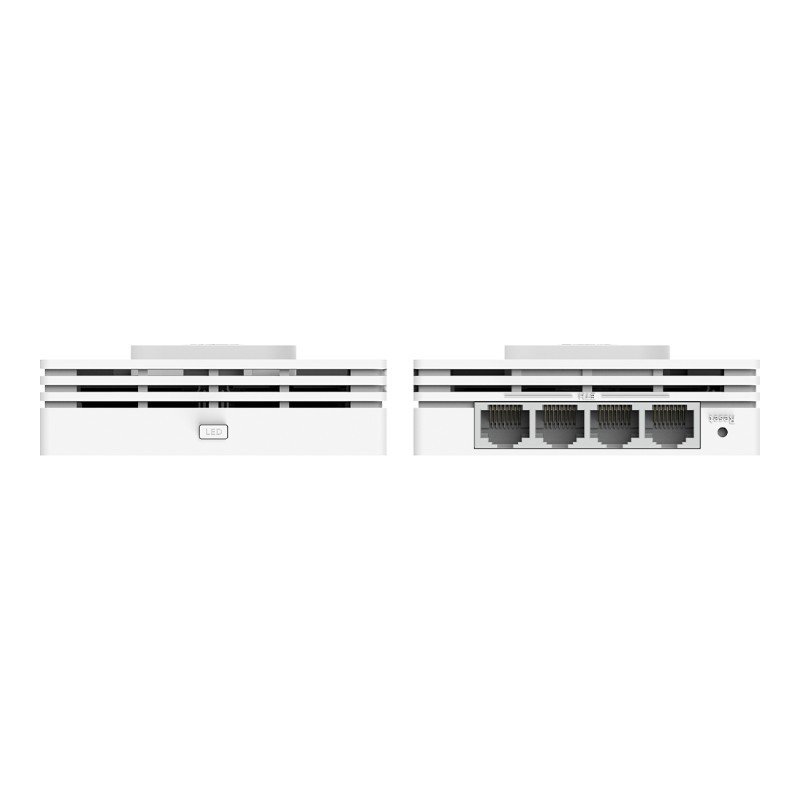

Ethernet Ports	5x Gigabit RJ45

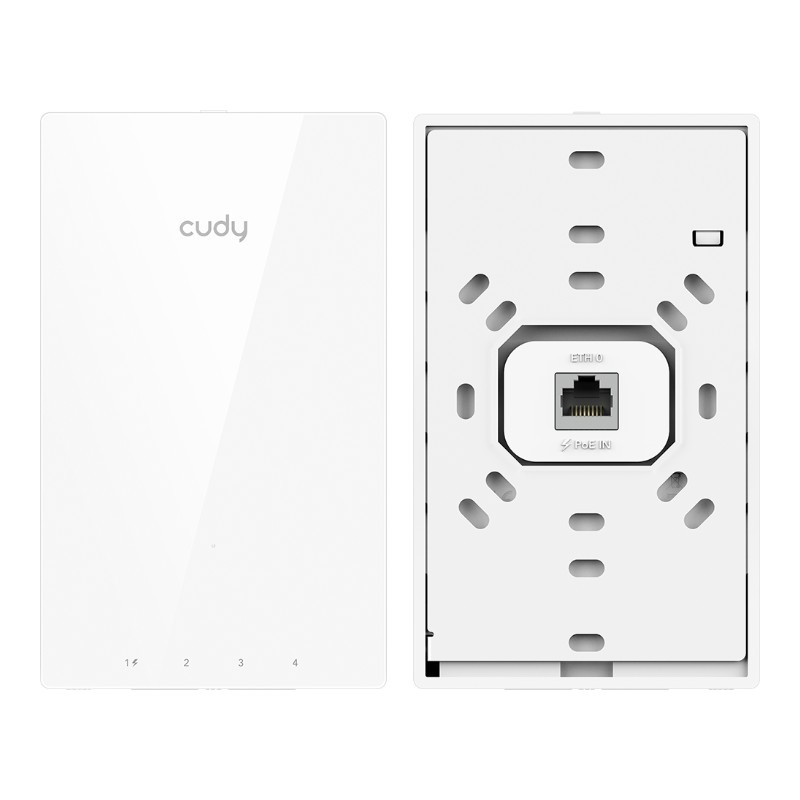

PoE Support	PoE In (Back) / PoE Passthrough (Front Bottom)
Power Method	802.3at/af PoE / Passive PoE (48V)
Max. Power Consumption	12 W
Mechanical & Environmental
Dimensions	143 x 86 x 27.6 mm
Weight	299 g
Operating Temperature	0 ℃ to 40 ℃
Reliability	Hardware Watchdog, ESD Protection
