Alta Labs S48-APOE, 48 Port PoE Switch, 740W
[3478][S48-APOE]

Price: 744,73€

Order or Qty		Price
> 500€	5+	737,28€
> 1000€	10+	729,83€
> 2000€	20+	722,39€
> 5000€	40+	714,94€
> 10000€	100+	707,49€

Prices exclude VAT

No Stock

Order Qty:

UPC:	845882005886

S48-APOE - 48 Port PoE Switch, 740W

The S48-APOE from Alta Labs is a cloud-managed rackmount switch featuring (32) Gigabit + (16) 2.5 Gigabit Ethernet ports, all of which support the 802.3af/at PoE standard (30 W per port) with a total PoE budget of 740 W.

For easy long-distance expansion, the switch also includes 4 optical SFP+ ports supporting Multi-Gigabit speeds (1/2.5/5 or 10 Gbps).

Product Links:
Product Page	Datasheet	Quick Start Guide	YouTube

Mechanical
Dimensions	440 x 310 x 44 mm
Weight	4.99 kg
Material Type	SGCC
Material Finish	Powder coat - Matte
Color	Metallic gray
Ports
Interface Ports	(32) 10/100/1000 Mbps, (16) 10/100/1000/2500 Mbps
SFP/SFP+	(4) SFP+
Switching Capacity	240 Gbps
Non-blocking Throughput	120 Gbps
Forwarding Rate	178.6 Gbps
PoE Budget/Max	740 Watts
PoE Supply	30 Watts per port
Per Port PoE	(48) 802.3at PoE+
Non-PoE Ports	None
LEDs
PoE	Orange
Network	Orange: 10/100, Blue: 1000/2500 Gbps
SFP/SFP+	Blue: 1 Gbps White: 10 Gbps
Hardware
Packet Buffer	16 Mbit
MAC Table Size	32K
Energy Efficient Ethernet	Yes
Management	Factory reset button
Band	2.4 GHz (For Bluetooth Setup)
Bluetooth Version	BLE
Total Power	6 dBm EIRP
Gain	2 dBi
Power
Idle Power Consumption	15 Watts
Max Power Consumption w/o PoE	X3 Watts
Max Power Consumption Full PoE	X Watts
Output	PoE+, 54VDC, 0.6A Max.
Power Supply	Universal AC, 100 - 240VAC 50-60Hz Internal
RJ45 Port Surge Protection	12kV for ESD - contact, 25kV for ESD - Air
Environmental
Mounting	Rackmount, Wallmount
Operating Temperature	-5 to 50° C
Operating Humidity	10 to 90% Noncondensing
IP Rating	None
EMI Rating	-
Cooling Fan	Yes
Certifications	CE, FCC, IC

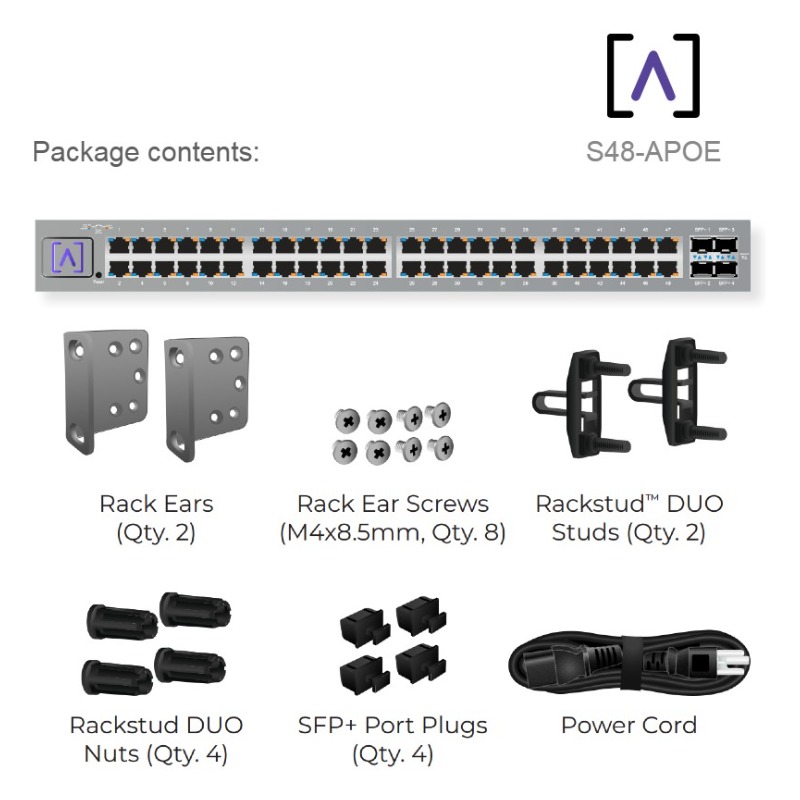

Package Contents:
1 x S48-APOE
1 x AC Cable - EU
2 x Rack Ears
8 x Rack Ear Screws - M4x8.5mm
2 x Rackstud™ DUO Studs
4 x Rackstud DUO Nuts
4 x SFP+ Port Plugs
1 x Kit στερέωσης οροφής
0 x Χωρίς PoE
