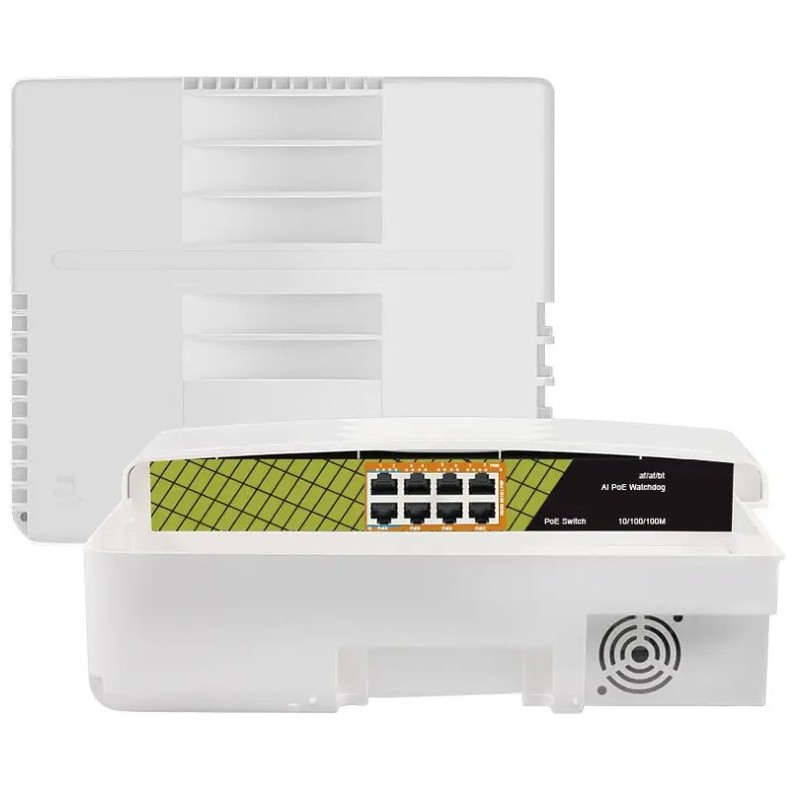

GNT-P1008G6-F - Outdoor Gigabit PoE Switch 8port (8 PoE-Out), 802.3af/at
Gigabit PoE switch hidden together with the source in an outdoor chassis, IP65 protection, without management with 8x Gigabit ports
The ideal PoE switch for outdoor installations and power up to 8 devices (camera/Wi-Fi AP).
The switch offers silent fanless operation, 8x 10/100/1000 Mbps of which all 8 ports support the PoE function (802.3af/at, 30W/port, port No. 1 and 2 even supports 802.3af/at/bt - 60W/port)
Total PoE budget of 120W and power supply via a 230V AC connector thanks to the built-in power supply.

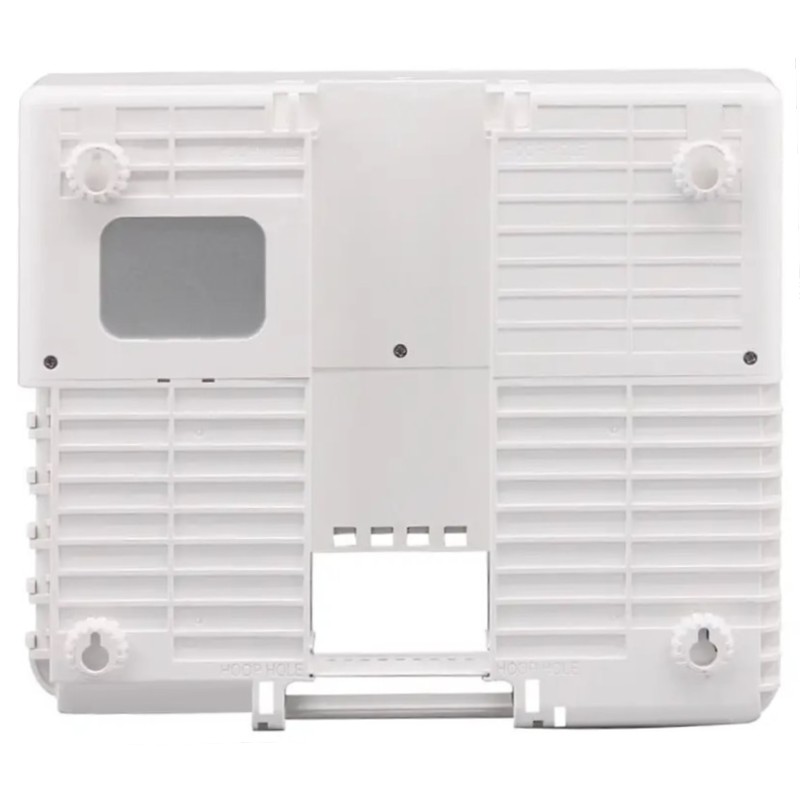

The entire outdoor chassis can be attached to a wall or to a mast with steel straps.
-

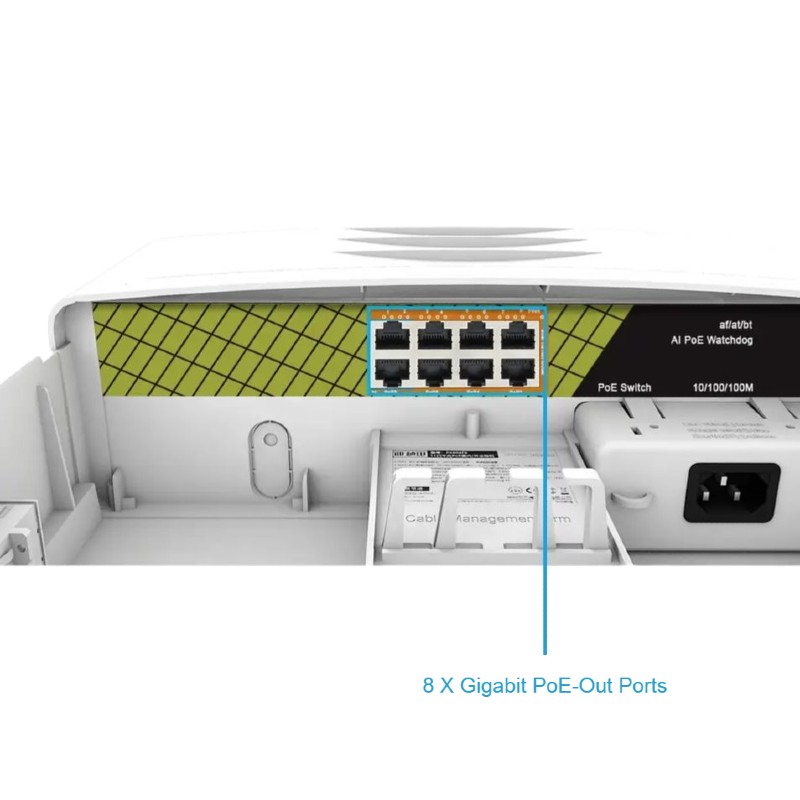

(8) 10/100/1000 Mbps PoE Ports
-
230V AC power supply
-
(6) 802.3af/at PoE (30W/port) + (2) 802.3af/at/bt PoE (60W/port)
-
PoE budget 120W
-
Plastic chassis with IP65
-
Silent operation without fans
-
PoE watchdog
-
Dimensions 310 x 260 x 100 mm
-
Wall or mast mount installation.
|
Specifications: |
|
LAN speed |
(8) 10/100/1000Mbps |
|
Power over Ethernet |
802.3at, 802.3bt |
|
Power type |
PoE |
|
PoE type |
PoE-Out |
|
PoE-Out standards |
802.3af, 802.3at, 802.3bt |
|
PoE Out ports |
8 |
|
PoE budget |
120W |
|
Max. power consumption |
120W |
|
Design |
Desktop |
|
Fans |
Without fan |
|
Chassis design |
Plastic |
|
Operating temperature |
-10°C up to 55°C |
|
Dimensions |
310 x 260 x 100 mm |
|
MAC address table |
8000 |
|
Switchning capacity |
16Gbps |
