UAP
UniFi is a revolutionary WiFi system which combines carrier class performance, unlimited scalability, disruptive pricing, and a virtual management controller.
Unlike traditional enterprise WiFi systems utilizing a hardware WiFi Switch, Unifi uses a virtual client/server application that requires zero cost and no additional hardware.
UniFi Access Points feature the latest in WiFi 802.11n MIMO technology capable of 300Mbps speeds with ranges up to 153m.
After the UniFi server is installed, the UniFi controller can be accessed through any device using a web browser.
The UniFi controller allows the operator to instantly provision thousands of UniFi APs, map out networks, quickly manage system traffic, and further provision individual Unifi AP devices.
|
Specifications: |
|
Dimensions: |
20 x 20 x 3.65 cm |
|
Weight: |
290 g (430 g with mounting kits) |
|

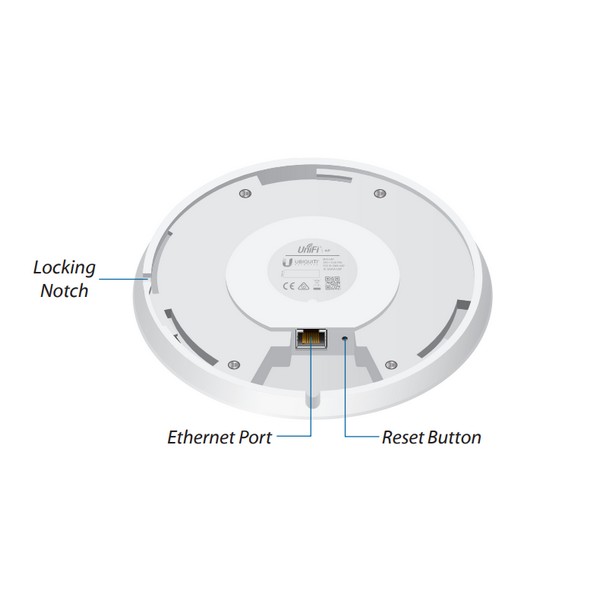

Ports: |
Ethernet (Auto MDX, 10/100 Mbps) |
|
Buttons: |
Reset |
|
Antennas: |
Integrated 3dBi omni gain (supports 2x2 MIMO with spatial diversity) |
|
Wi-Fi Standards: |
802.11 b/g/n* |
|
Power Method: |
Passive Power over Ethernet (12-24V) |
|
Power Supply: |
24V 0,5A PoE Adapter included |
|
Maximum Power Consumption: |
4 W |
|
Max TX Power: |
20 dBm |
|
BSSID: |
Up to four per radio |
|
Power: |
Save Supported |
|
Wireless Security: |
WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i |
|
Certifications: |
CE, FCC, IC |
|
Mounting: |
Wall/Ceiling (Kits included) |
|
Operating Temperature: |
-10°C to 70°C |
|
Operating Humidity: |
5% - 80% Condensing |
|
Advanced Traffic Management: |
|
VLAN: |
802.1Q |
|
Advanced QoS: |
WLAN prioritization |
|
Guest Traffic Isolation: |
Supported |
|
WMM: |
Voice, video, best effort, and background |
|
Concurrent Clients: |
100+ |
|
Supported Data Rates (Mbps): |
|
802.11n: |
MCS0 - MCS15 (6.5 Mbps to 300 Mbps), HT 20/40 |
|
802.11b: |
1, 2, 5.5, 11 |
|
802.11g: |
6, 9, 12, 18, 24, 36, 48, 54 |

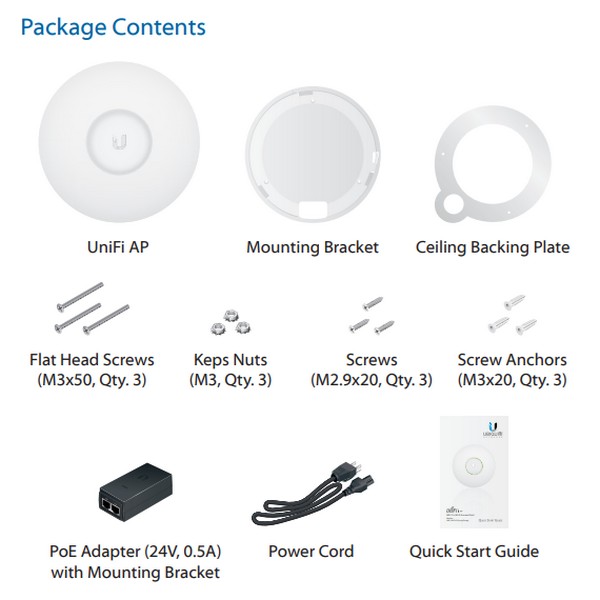

| Package Contents: |
|---|
| 1 x UAP
|
| 1 x Ceiling Mounting Kit
|
| 1 x PoE Adapter 24V, 0.5A with Mounting Bracket
|
| 1 x Power Cord |
|
