Features:
RJ45 Input / Output connector
Input / Output common ground

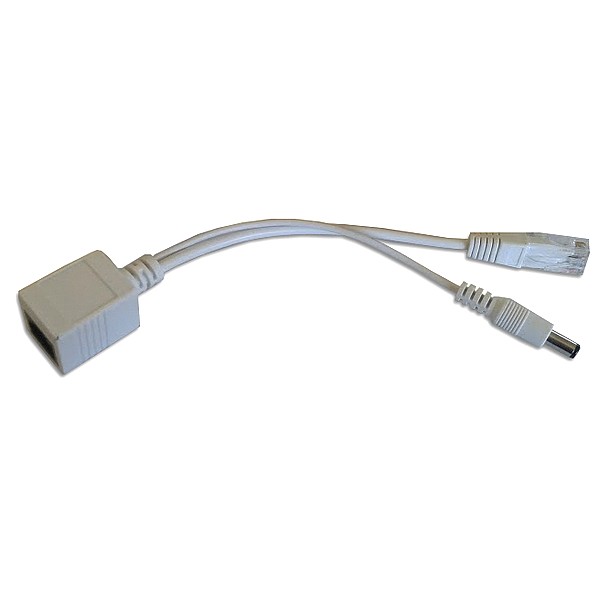

Power / Data Splitter
Ethernet switches expand to Wireless AP
|
Input / Output Specifications : |
|
DC Input Voltage |
48V ± 5 % |
|
DC Output Voltage |
48V ± 5 % |
|
Max Output Current |
0.4A Max. |
|
Over Current Protection |
None |
|
General Sepcifications: |
|
Operating Temperature |
0oC ~ +50oC |
|
Storage Temperature |
-20oC ~ +70oC |
|
Humidity |
Up to 90% |
|
Weight |
50gr |
|
Dimensions |
230x25x20mm |
|
Input Pins
RJ-45 Plug |
Output Pins
RJ-45 Jack |
|
1 |
Tx(+) |
Tx(+) |
1 |
|
2 |
Tx (-) |
Tx (-) |
2 |
|
3 |
Rx (+) |
Rx (+) |
3 |
|
4 |
V+ |
N.C. |
4 |
|
5 |
V+ |
N.C. |
5 |
|
6 |
Rx (-) |
Rx (-) |
6 |
|
7 |
GND |
N.C. |
7 |
|
8 |
GND |
N.C. |
8 |
|
