LanController2
IP Managed Lan Controller HW2.0
[LanController2]
The product is
no longer available

IP Managed Lan Controller HW2.0

Lan Controller HW2

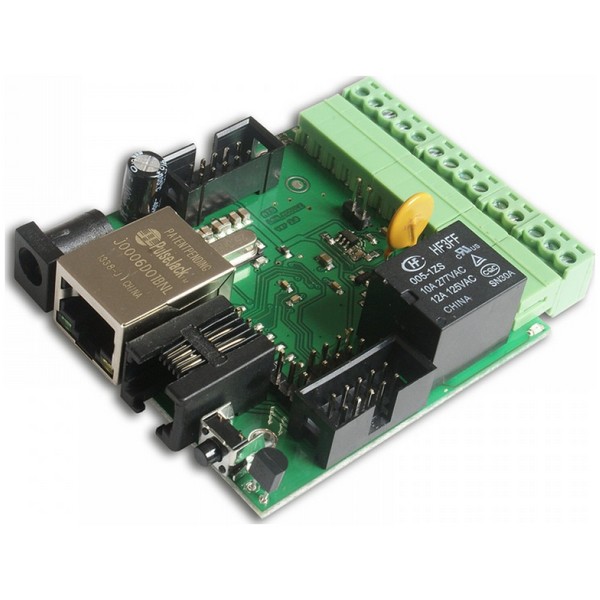

LAN controller is a simple, but innovative device which has long been lacking in the market network solutions. A small board serves as a web server which presents the various sensor readings and allows you to remotely control up to 5 outputs. Additionally Events Config feature  allow you to program the appropriate action when sensor readings met certain conditions. ISP can use watchdog function, it check the ping up to 5 network devices, and if no response runs the relays. Useful for many applications can be a Scheduler, that allows the on / off the device at a specified time or for a specified period of time. There is also PWM output  to control brightness of light or an electric motor speed. For far rom socket installation board could be powered by passive PoE. Few  versions of firmware is available today, each is developed and after publication customer could upgrade it by preapred software. In Accessory are presented all sensors and upgrade kits compatible with Lan Controller.

Specifications
Digital Input 4
Digital Output 5 (1+4)
Analog Input 4
1-Wire Yes - RJ11 4/6
Power Supply 8-28V DC
Device Power 0.6W
RP Protection YES
Temp -20C +85C
Size 60x68mm
Wieght 50g
