Switch » ES-48-500W
UBNT ES-48-500W, EdgeSwitch, 48-port Managed PoE+ Gigabit Switch 500W
[1494][ES-48-500W]
Price: 737,71€
 Order or Qty  Price
 > 500€  5+   730,33€
 > 1000€  10+   722,95€
 > 2000€  20+   715,58€
 > 5000€  40+   708,20€
 > 10000€  100+   700,82€
Prices exclude VAT

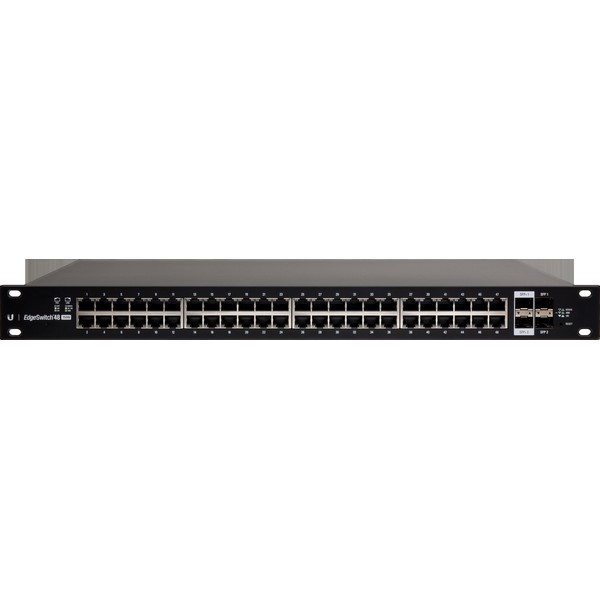

UBNT ES-48-500W, EdgeSwitch, 48-port Managed PoE+ Gigabit Switch 500W

Available after:
2023-02-08
Order Qty:
UPC:810354022272

ES-48-500W

The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

It supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Two SFP ports support uplinks of up to 1 Gbps.

The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface.

Specifications:
Dimensions: 485.04 x 44.45 x 285.6 mm
Weight: 5.3 kg
Total Non-Blocking Throughput: 70 Gbps
Max. Power Consumption: 500 W
Power Method: 100-240VAC/50-60Hz, Universal Input
Power Supply: AC/DC, Internal, 500W DC
LEDs Per Port:
RJ45 Data Ports
SFP Data Ports

PoE, Speed/Link/Activity
Speed/Link/Activity

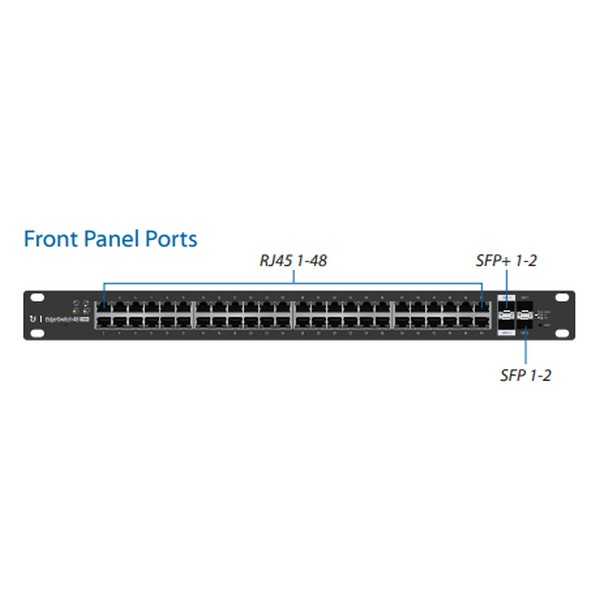

Networking Interfaces: 48x 10/100/1000Mbps RJ45 Ethernet Ports
2x 1Gbps SFP Ethernet Ports
2x 1/10Gbps SFP+ Ethernet Ports
Management Interface: Ethernet In/Out of Band
Certifications: CE, FCC, IC
Rackmount: yes, 1U
ESD/EMP Protection: Air: ±24kV, Contact: ±24kV
Operating Temperature: -5°C to 40°C
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
PoE Per Port:
PoE Interfaces: POE+ IEEE 802.3af/at (Pins 1,2+, 3, 6-)
24VDC Passive PoE (Pins 4,5+,7,8-)
Max. PoE+ Wattage per Port by PSE:   34.2 W
Voltage Range 802.3at Mode: 50-57 V
Max. Passive PoE Wattage per Port: 17 W
24V Passive PoE Voltage Range: 20-27 V


Additional Images:



Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
