Internet of Things » Sensor » IOT-HC-SR501
PIR Pyroelectric Infrared Motion Sensor HC-SR501
[IOT-HC-SR501]
Price: 1,44€
 Order or Qty  Price
 > 500€  5+   1,41€
 > 1000€  10+   1,38€
 > 2000€  20+   1,35€
 > 5000€  40+   1,32€
 > 10000€  100+   1,30€
Prices exclude VAT

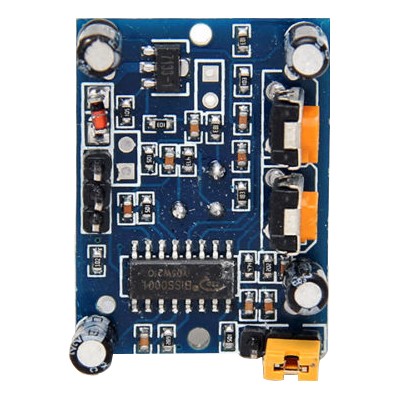

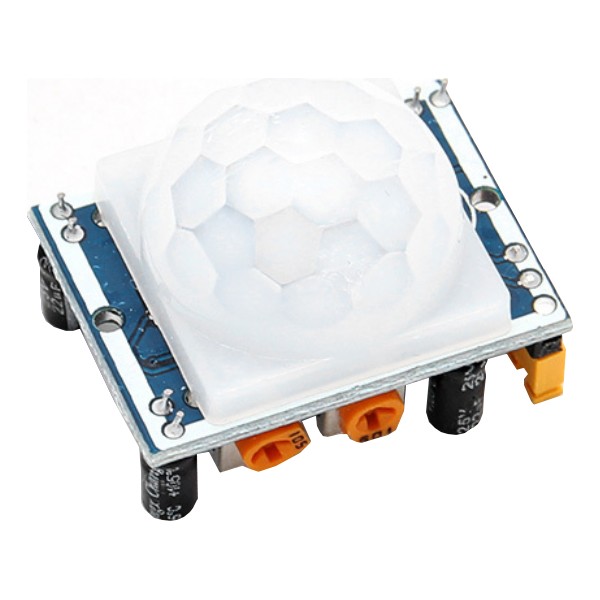

PIR Pyroelectric Infrared Motion Sensor HC-SR501

In Stock: 3
Order Qty:

Specifications:

Operating voltage: DC5V to 20V

Static power consumption: 65 microamps

Level output: 3.3V, low 0V

Delay time: adjustable (0.3 seconds to 18 seconds)

Blockade Time: 0.2 seconds

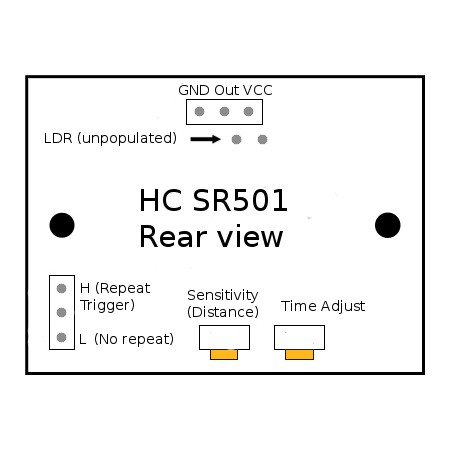

Trigger Mode: L can not be repeated, H can be repeated default value H

Sensing range: less than 120 degree cone angle of less than 7 meters

Operating temperature: -15 to +70 degrees

PCB Dimensions: 32 * 24mm, screw hole distance 28mm, screw aperture 2mm sensor lens size: (diameter): 23mm (default)

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
