XM1584 Adjustable Ultra-small size DC-DC step-down
[IOT-XM1584]
Price: 0,74€
 Order or Qty  Price
 > 500€  5+   0,73€
 > 1000€  10+   0,71€
 > 2000€  20+   0,70€
 > 5000€  40+   0,68€
 > 10000€  100+   0,67€

XM1584 Adjustable Ultra-small size DC-DC step-down

No Stock
Order Qty:

XM1584 Ultra-small size DC-DC step-down 3A adjustable power supply module.

Specifications
Input voltage: 4.5~28V
Output Voltage: 0.8V~20V
Output current: Output Current : 3A(Max)
Conversion efficiency: Up to 92%
Switching Frequency: 1.5MHz(Max),1MHz(Typ)
Operating temperature: -20 ℃ to +85 ℃

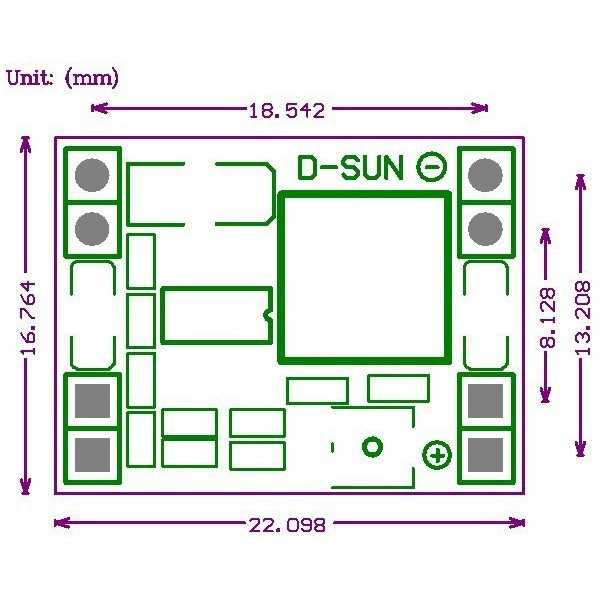

Size: 22mm * 17mm * 4mm

Additional Images:
