Internet of Things » Sensor » IOT-HC-SR04

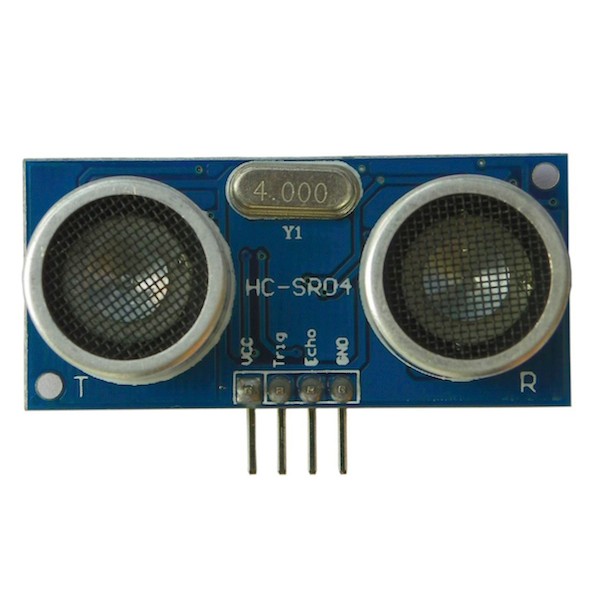

HC-SR04 Ultrasonic Module Distance Measuring Transducer Sensor
[IOT-HC-SR04]
Price: 1,40€
 Order or Qty  Price
 > 500€  5+   1,37€
 > 1000€  10+   1,34€
 > 2000€  20+   1,32€
 > 5000€  40+   1,29€
 > 10000€  100+   1,26€
Prices exclude VAT

HC-SR04 Ultrasonic Module Distance Measuring Transducer Sensor

In Stock: 9
Order Qty:

Product features:

Ultrasonic ranging module HC - SR04 provides 2cm - 400cm non-contact measurement function, the ranging accuracy can reach to 3mm.

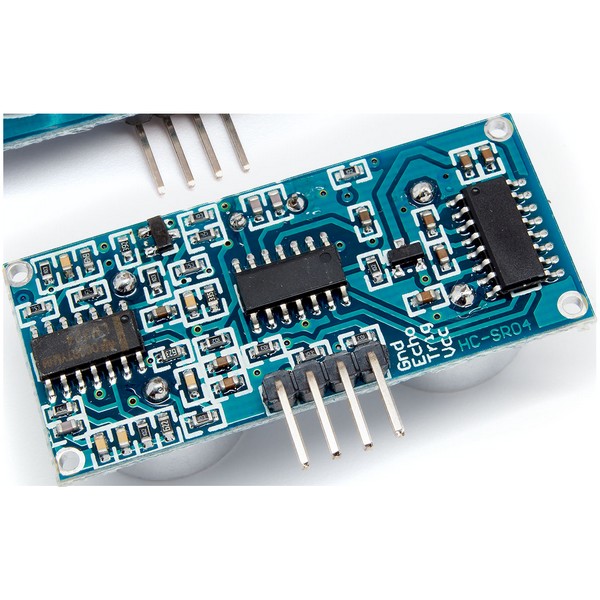

The modules includes ultrasonic transmitters, receiver and control circuit.

The basic principle of work:
   (1) Using IO trigger for at least 10us high level signal,
   (2) The Module automatically sends eight 40 kHz and detect whether there is a pulse signal back.
   (3) IF the signal back, through high level , time of high output IO duration is the time from sending ultrasonic to returning.

Test distance = (high level time×velocity of sound (340M/S) / 2,

Specifications
Working voltage: 5V
Working Current: 15mA
Working Frequency: 40Hz
Max Range: 4m
Min Range: 2cm
Measuring Angle: 15 degree
Rectifier: Non-Synchronous Rectification
Trigger Input Signal: 10uS TTL pulse
Echo Output Signal: Input TTL lever signal and the range in proportion
Sizeļ¼š 45*20*15mm

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
