Electronics » Display » OLED128YB

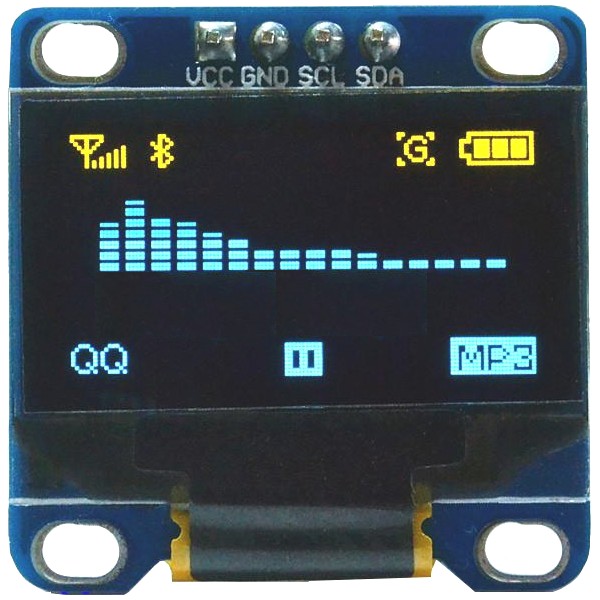

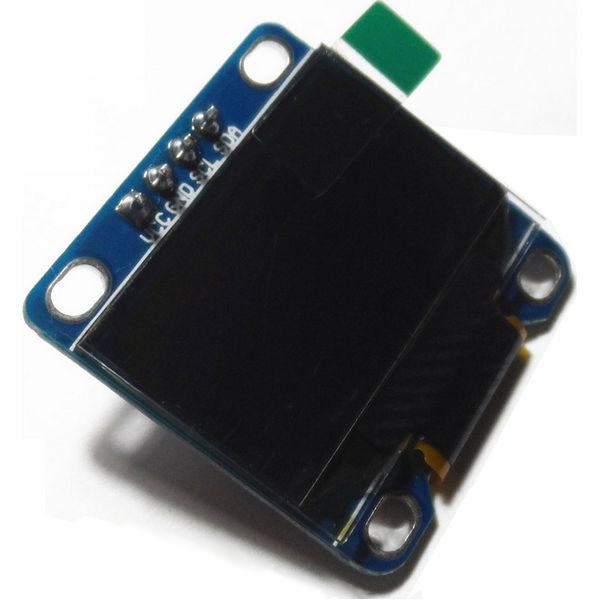

0.96" I2C 128X64 OLED LCD Module SSD1306 - Yellow/Blue
[1570][OLED128YB]
Price: 2,72€
 Order or Qty  Price
 > 500€  5+   2,66€
 > 1000€  10+   2,61€
 > 2000€  20+   2,55€
 > 5000€  40+   2,50€
 > 10000€  100+   2,45€
Prices exclude VAT

0.96" I2C 128X64 OLED LCD Module SSD1306 - Yellow/Blue

No Stock
Order Qty:
UPC:728615666212

IOT-OLED128YB OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode.

In contrast to LCD technology, OLED does not require a backlight.

OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

Specifications:
Resolution: 128*64 pixels
Viewing angle: 160°
Power consumption:  Full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30℃ to +70℃

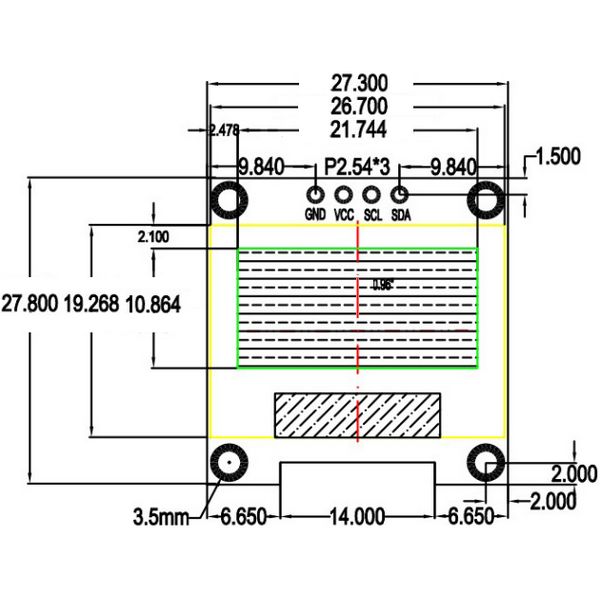

Size: 27*27*4.1mm
Interface: I2C/IIC
Dirver IC: SSD1306
Color: Yellow / Blue
Weight: 15gr


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
