PoE » Passive Splitter » EZ-RJ45ECS-SPL
EZ-RJ45ECS-SPL- RJ45 Ethernet Connector System - DC Splitter
[EZ-RJ45ECS-SPL]
Price: 4,48€
 Order or Qty  Price
 > 500€  5+   4,39€
 > 1000€  10+   4,30€
 > 2000€  20+   4,21€
 > 5000€  40+   4,12€
 > 10000€  100+   4,03€
Prices exclude VAT

EZ-RJ45ECS-SPL- RJ45 Ethernet Connector System - DC Splitter

In Stock: 25
Order Qty:

EZ-RJ45ECS-SPL connector system is a field replaceable outdoor rated Ethernet connection system for high speed 10BaseT, 100BaseT and 1000BaseT networks.

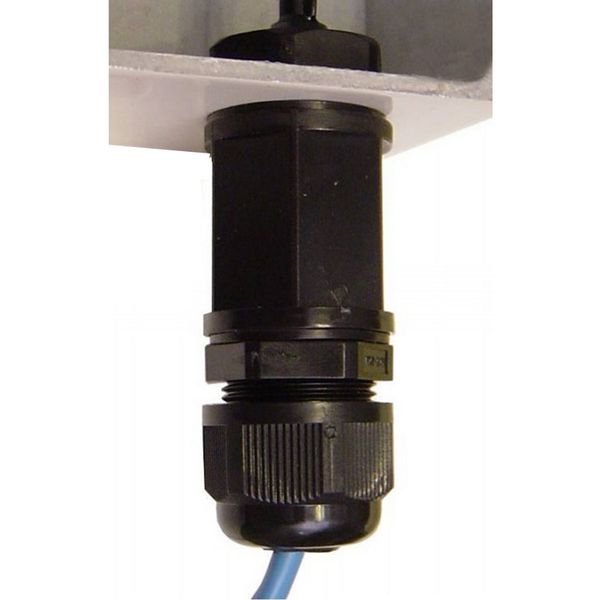

The system features a standard RJ45 Receptacle mounted in a UV protected housing and a mating cable gland which passes an RJ45 connector and seals the cable to IP68 requirements.

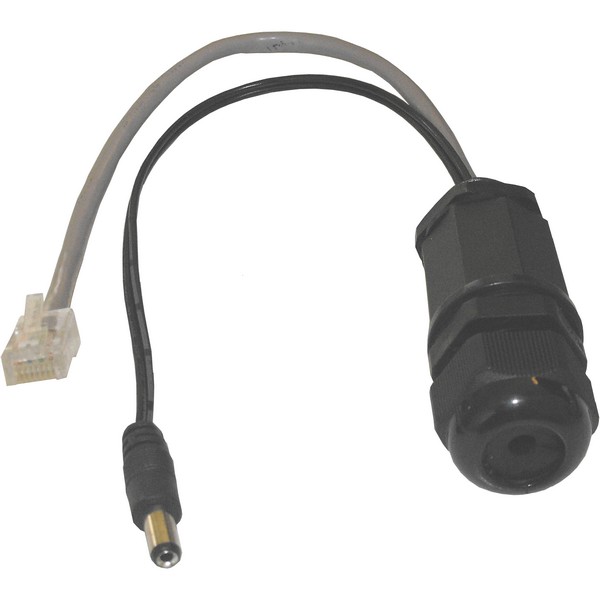

Introduces a PoE Splitter option to power non PoE enabled devices via a provided 2.1mm standard DC connector.

Also provides for quick and easy disconnect and reconnect of equipment.

Because of its many unique design features and low cost, it is a universal solution for many industries where a sealed and waterproof, yet removable, Ethernet connection is required.

Specifications:
Part Number EZ-RJ45ECS20-S
RJ45 10/10/1000 Cat5e
Mechanical Cat5 Cable Strain Relief
Material UV Resistant Nylon 66
Sealing IP67
Temperature -40°C to +85°C
Installation Hole Size ø 22mm
Installation Panel Size 1.5mm-2.5mm

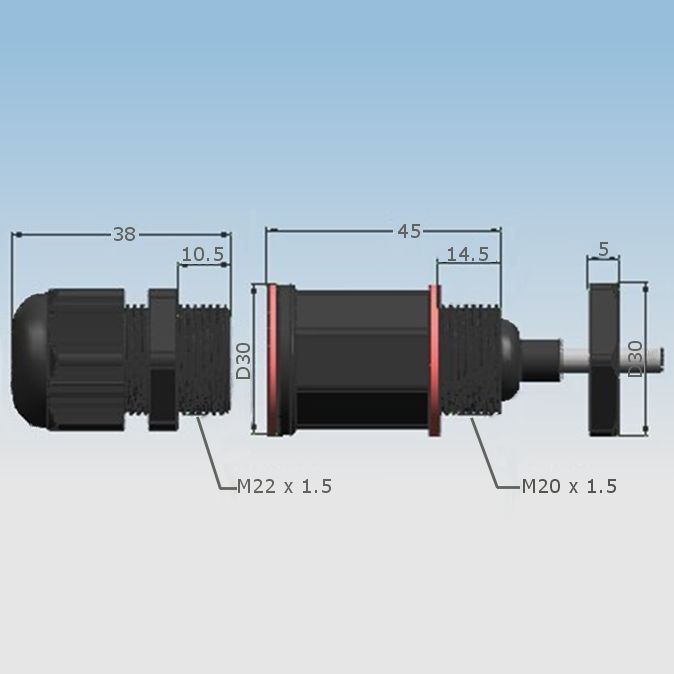

Gland Dimensions 87mm x 30mm
Overal Dimenstions 30cm x 3cm
Weight 50gr

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
