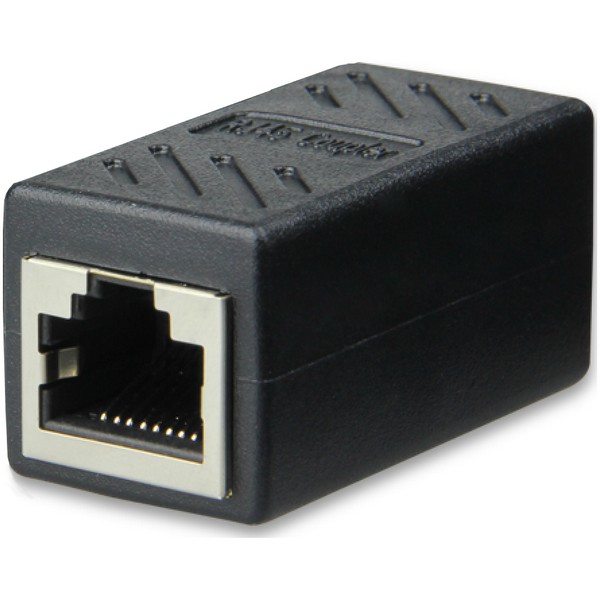

EZ-RJ4CPL - Cat6 Ethernet coupler - Black

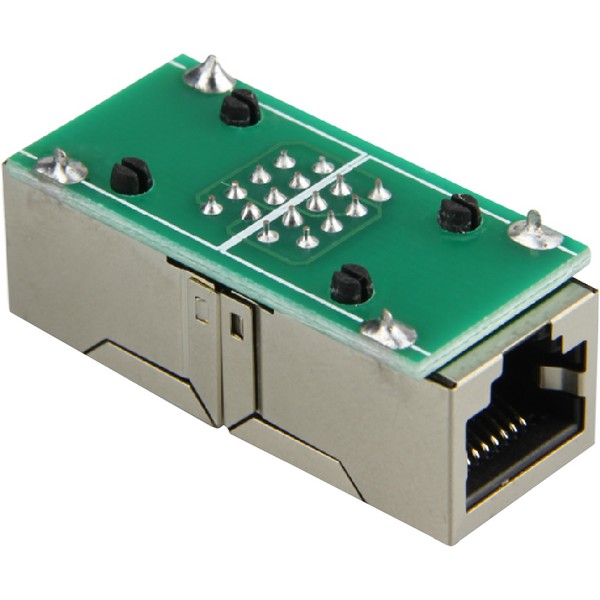

The system features a shielded RJ45 Receptacle mounted in a UV protected housing which passes an RJ45 connector.
The system provides for quick and easy disconnect and reconnect of equipment.
Because of its many unique design features and low cost, the EZ-RJ4CPL is a universal solution for many industries where an ethernet coupling system is required.
These include indoor applications such as wireless equipment or video surveillance equipment and indoor applications such as equipment used in factory automation or harsh industrial processes.
|
Specifications: |
|
Part # |
EZ-RJ4CPL |
|
Connector Type |
RJ45 Female to RJ45 Female (8P8C) |
|
Supported Speeds |
10/100/1000 Mbps (Gigabit Ethernet) |
|
Category Compatibility |
Cat5, Cat5e, Cat6 |
|
Wiring Configuration |
Straight-through (Pin 1 to Pin 1) |
|
Physical & Material |
|
Housing Material |
Eco-friendly ABS (High-impact plastic) |
|
Contact Material |
Gold-plated phosphor bronze |
|
Dimensions |
37.2 x 22.7 x 19.4 mm |
|
Weight |
11 g |
|
Compliance |
|
Standard |
TIA/EIA 568-C.2 |
|
Certifications |
RoHS compliant |
