Antenna 5.xGHz » AF-5G34-S45
UBNT AF-5G34-S45, 5 GHz airFiber Dish, 34 dBi, Slant 45
[AF-5G34-S45]
Price: 290,34€
 Order or Qty  Price
 > 500€  5+   287,44€
 > 1000€  10+   284,53€
 > 2000€  20+   281,63€
 > 5000€  40+   278,73€
 > 10000€  100+   275,82€
Prices exclude VAT

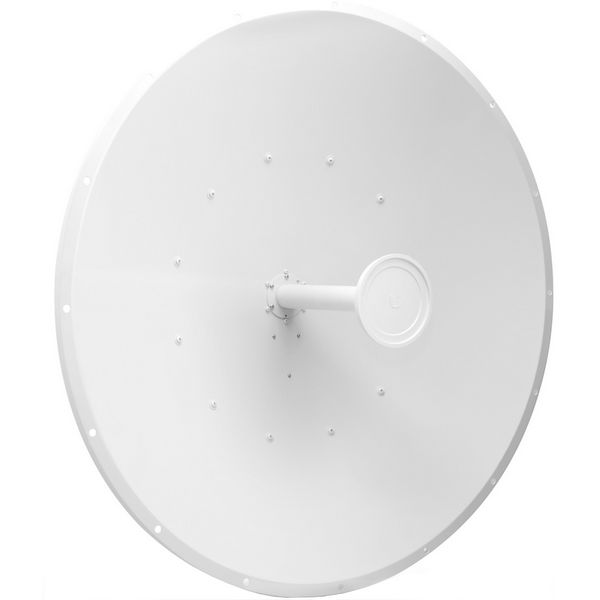

UBNT AF-5G34-S45, 5 GHz airFiber Dish, 34 dBi, Slant 45

Ships in:
3-5 working days
Order Qty:

AF‑5G34‑S45

The airFiber X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point bridging.

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.

Connectors and Interfaces:
Rocket kit:  Yes
RF connectors:  (2) RSMA female
Physical characteristics:
Antenna design:  Parabolic
Wind load:  200 km/h
Purpose:  Outdoor
Weight:  13,5 kg
Depth:  421 mm
Width:  1050 mm
Height:  1050 mm
Wireless features:
Cross-Pol Isolation:  35 dB
MIMO, SISO:  2 x 2 (slant)
Polarization:  VH (slant)
F/B ratio:  42 dB
VSWR:  < 1,4
Wireless frequency:  5 GHz
Beam angle - H. pol. :
Beam angle - V. pol. :
Type of antenna:  Directional
Antenna gain:  34 dBi


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
