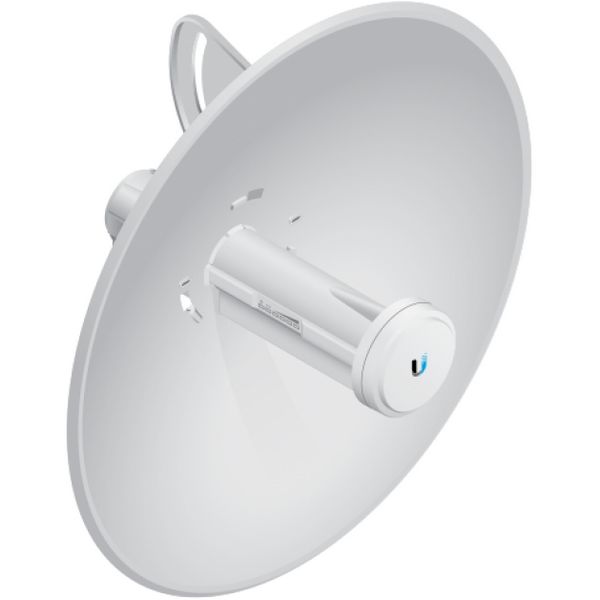

Powerbeam ac PBE-5AC-300
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability.
The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
The form factor of the PowerBeam ac features the highest gain for its size.
The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.
|
Specifications: |
|
CPU: |
Atheros MIPS 74Kc, 560 MHz |
|
Memory: |
128 MB DDR2, 8 MB Flash |
|
Networking Interface: |
10/100/1000 Ethernet Port |
|
Wireless Approvals: |
FCC, IC, CE |
|
RoHS Compliance: |
Yes |
|
Dimensions: |
|
Radome Excluded: |
325 x 325 x 256 mm |
|
Radome Included: |
364 x 364 x 276 mm |
|
Weight: |
|
Radome Excluded: |
1.203 kg |
|
Radome Included: |
2.55 kg |
|
Power Supply: |
24V, 0.5A Gigabit PoE |
|
Power Method: |
Passive PoE |
|
Max. Power Consumption: |
5.5W |
|
Gain: |
22 dBi |
|
Operating Frequency: |
|
Wind Loading: |
200.2 N @ 200 km/h (45 lbf @ 125 mph) |
|
Wind Survivability: |
200 km/h (125 mph) |
|
Channel Sizes: |
PtP Mode: 10/20/30/40/50/60/80 MHz |
|
Gain: |
22 dBi |
|
Max. VSWR: |
1.5:1 |
|
Built-In Mechanical Downtilt: |
± 20° |
