ES-24-LITE
Ubiquiti ES-24-LITE, EdgeSwitch 24 Lite - Non POE
[1660][ES-24-LITE]
The product is
no longer available
Prices exclude VAT

Ubiquiti ES-24-LITE, EdgeSwitch 24 Lite - Non POE

UPC:810354022265

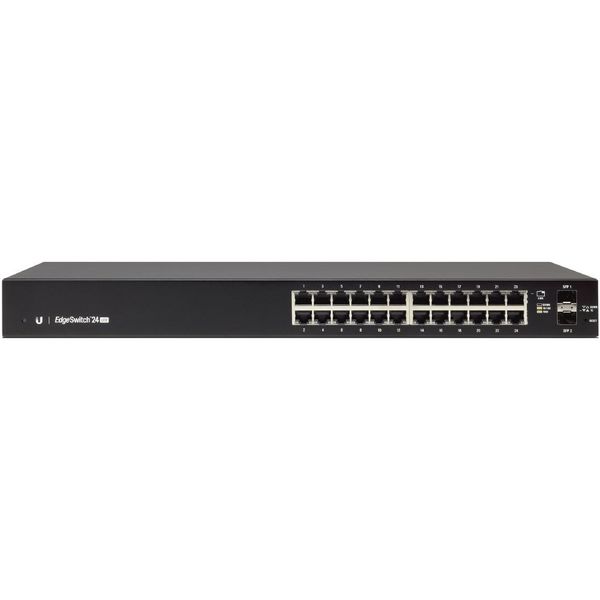

EdgeSwitch Lite ES‑24‑LITE

The EdgeSwitch Lite simultaneously processes traffic on all ports at line rate without any packet loss.

It supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Two SFP ports support uplinks of up to 1 Gbps.

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface.

For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

Specifications:
Dimensions: 443 x 43 x 221 mm
Weight: 2.6 kg
Total Non-Blocking Throughput:   26 Gbps
Max. Power Consumption: 25 W

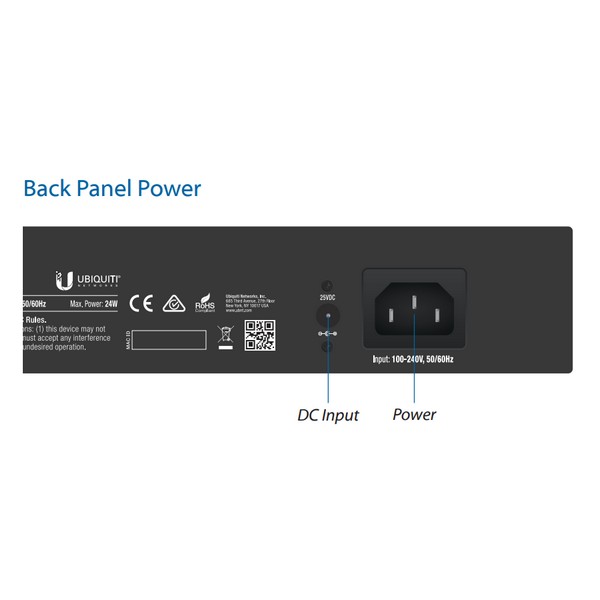

Power Method: 100-240VAC/50-60Hz, Universal Input
Power Supply: AC/DC, Internal, 25W DC
LEDs Per Port:
RJ45 Data Ports
SFP Data Ports

Speed/Link/Activity
Speed/Link/Activity

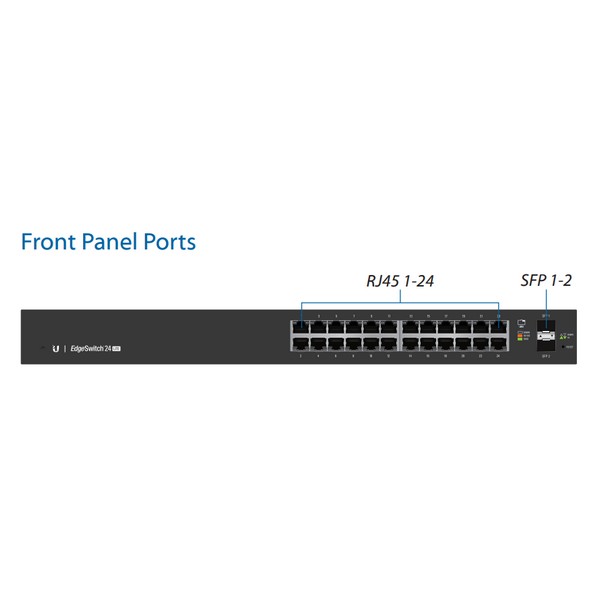

Networking Interfaces: 24x 10/100/1000Mbps RJ45 Ethernet Ports
2x 1Gbps SFP Ethernet Ports
Management Interface: Ethernet In/Out of Band
Certifications: CE, FCC, IC
Rackmount: yes, 1U
ESD/EMP Protection: Air: ±24kV, Contact: ±24kV
Operating Temperature: -5°C to 40°C
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
