PoE
»
Passive Splitter
»
EZ-POEPS03

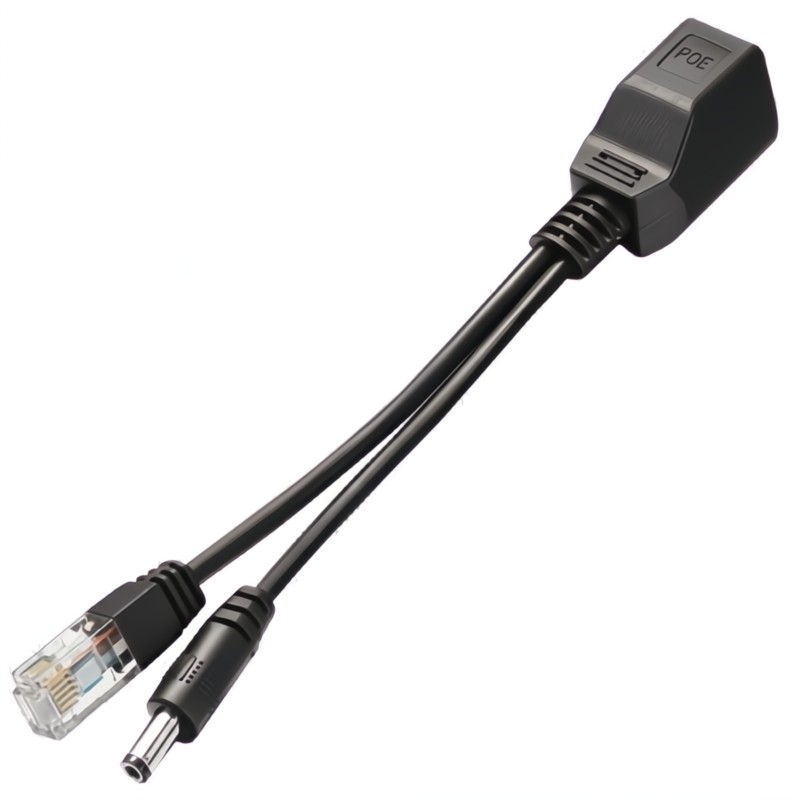

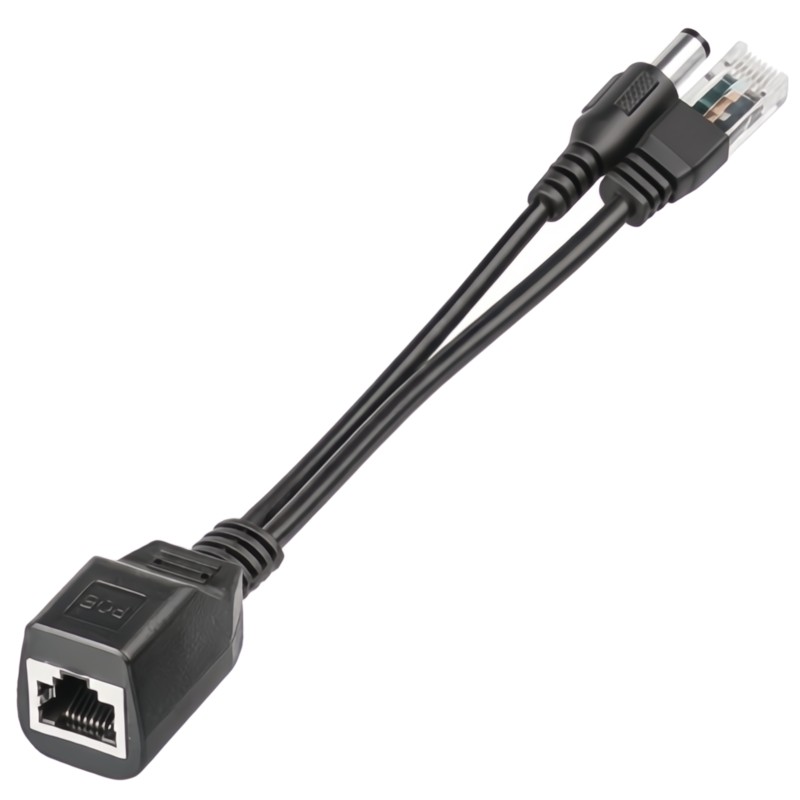

PoE 10/100 Passive Splitter - cat6 - Black
[EZ-POEPS03]
Price: 0,89€
Order or Qty
Price
> 500€
5+
0,87€
> 1000€
10+
0,85€
> 2000€
20+
0,84€
> 5000€
40+
0,82€
> 10000€
100+
0,80€
Prices exclude VAT
In Stock: 53
Order Qty:
Shipping estimate
EZ-POEPS03
Features:
Cat6 Cable
Shielded RJ45 Jack
RJ45 Input / Output connector
Input / Output common ground
Power / Data Splitter
Ethernet switches expand to Wireless AP
Product Links:
Datasheet
Input / Output Specifications :
DC Input Voltage
48V ± 5 %
DC Output Voltage
48V ± 5 %
Max Output Current
0.4A Max.
Over Current Protection
None
General Specifications:
Operating Temperature
0
o
C ~ +50
o
C
Storage Temperature
-20
o
C ~ +70
o
C
Humidity
Up to 90%
Weight
50gr

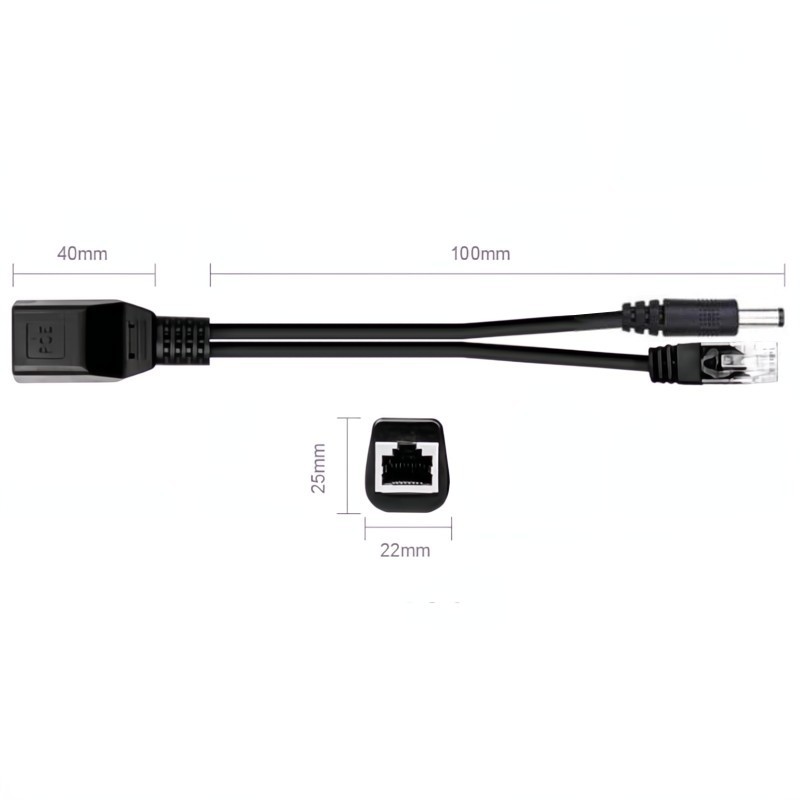

Dimensions
160x22x21mm
Input
Pins
RJ-45 Plug
Output
Pins
RJ-45 Jack
1
Tx(+)
Tx(+)
1
2
Tx (-)
Tx (-)
2
3
Rx (+)
Rx (+)
3
4
V+
N.C.
4
5
V+
N.C.
5
6
Rx (-)
Rx (-)
6
7
GND
N.C.
7
8
GND
N.C.
8
Package Contents:
1 x EZ-POEPS03
Additional Images:
Return for:
Refund:
Store Credit:
Repair:
20 day(s)
40 day(s)
12 month(s)
