PoE » PoE Injector » PSI-348G
KMETech 10/100/1000 PoE injector
[1671][PSI-348G]
Price: 3,26€
 Order or Qty  Price
 > 500€  5+   3,19€
 > 1000€  10+   3,13€
 > 2000€  20+   3,06€
 > 5000€  40+   3,00€
 > 10000€  100+   2,93€
Prices exclude VAT

KMETech 10/100/1000 PoE injector

In Stock: 6
Order Qty:

The new KMETech PSI-348G is a shielded Gigabit PoE adapter for powering any UBNT or RouterBOARD over Gigabit Ethernet.

The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device.

Power is supplied on Ethernet pins 4,5(+) and 7,8(-)

Simply connect your power source and then use an ethernet cable to connect the injector to the device.

Helps reducing number of wires that lead up the tower.

For using with any UBNT or RouterBOARD that supports passive PoE.

Input / Output Specifications :
DC Input Voltage 12-48V ± 5 %
DC Output Voltage 12-48V ± 5 %
Max Output Current 0.4A Max.
Over Current Protection  Multi-Fuse Open
General Specifications:
Operating Temperature 0oC ~ +50oC
Storage Temperature -20oC ~ +70oC
Humidity Up to 90%
Weight 40gr

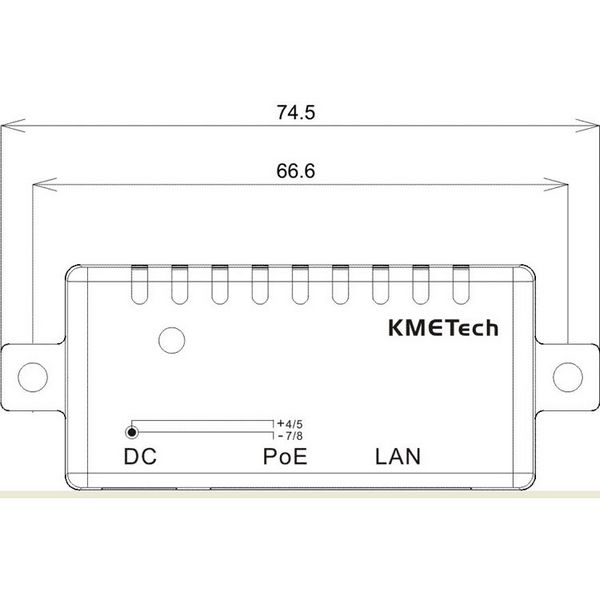

Dimensions 75mm * 28mm * 21mm

Input Pins

Output Pins
1 TxD1+ TxD1+ 1
2 TxD1- TxD1- 2
3 RxD2+ RxD2+ 3
4 BI_D3+ BI_D3+ / V+ 4
5 BI_D3-  BI_D3- / V+ 5
6 RxD2- RxD2- 6
7 BI_D4+ BI_D4+ / V- 7
8 BI_D4- BI_D4- / V- 8


Additional Images:



Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
