Ubiquiti ES-12F, EdgeSwitch Fiber 12

UPC:810354023606

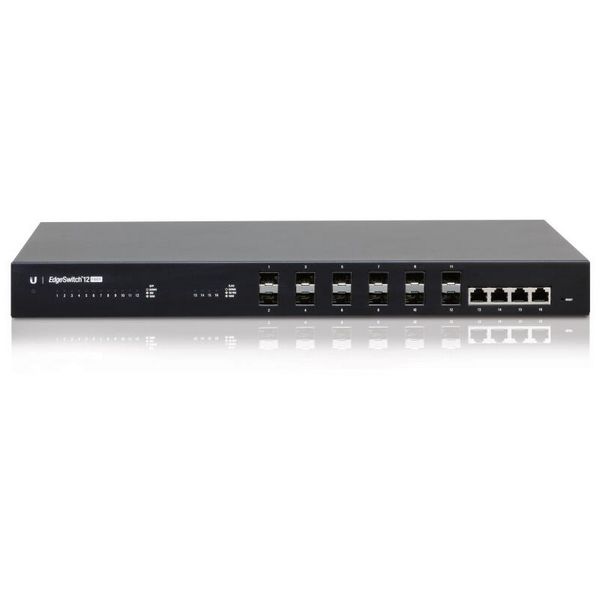

EdgeSwitch 12 FIBER

The EdgeSwitch Fiber is an aggregation switch that offers robust performance, low latency, and intelligent switching for growing networks.

For fiber connectivity, the EdgeSwitch Fiber features 12 SFP ports, eight of which also support 100 Mbps.

For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.

The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

For its total, non‑blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps.

Specifications:
Dimensions: 443 x 221 x 43 mm
Weight: 2.68kg with Rack-Mount Brackets Included
2.59kg with Rack-Mount Brackets Excluded
Enclosure Characteristics: SGCC Steel
Total Non-Blocking Throughput:   16 Gbps
Switching Capacity: 32 Gbps
Forwarding Rate: 23.81 Mpps
Max. AC Power Consumption: 56 W

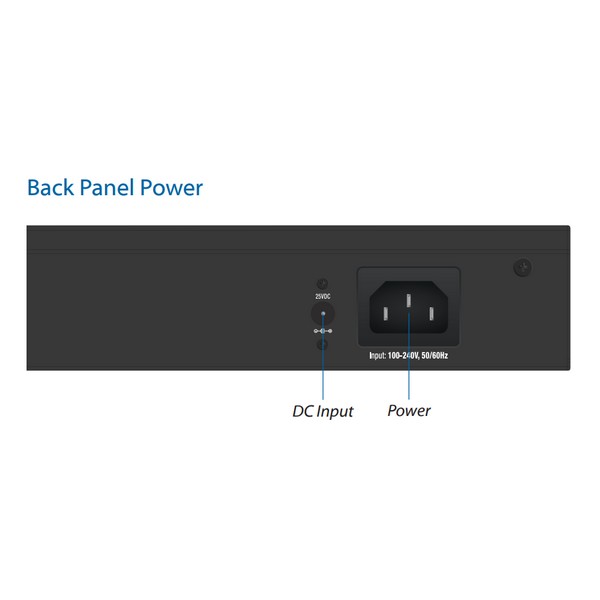

Power Method AC: 100-240VAC/50-60 Hz, Universal Input
DC: 56W, 16 to 25V, with 2.5 mm DC Power Inline Connector
Supported Voltage Range: AC: 100 to 240VAC
DC: 16 to 25VDC
Power Supply: AC/DC, Internal, 56 W DC
LEDs Per Data Port: Speed/Link/Activity

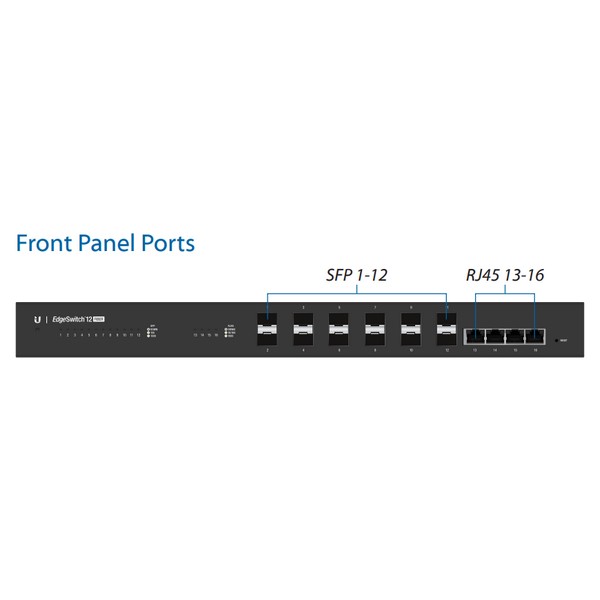

Networking Interfaces: (8) 100/1000 Mbps SFP Ethernet Ports
(4) 1000 Mbps SFP Ethernet Ports
(4) 10/100/1000 Mbps RJ45 Ethernet Ports
Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications: CE, FCC, IC
Rackmount: Yes, 1U High
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -5°C to 40°C
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
