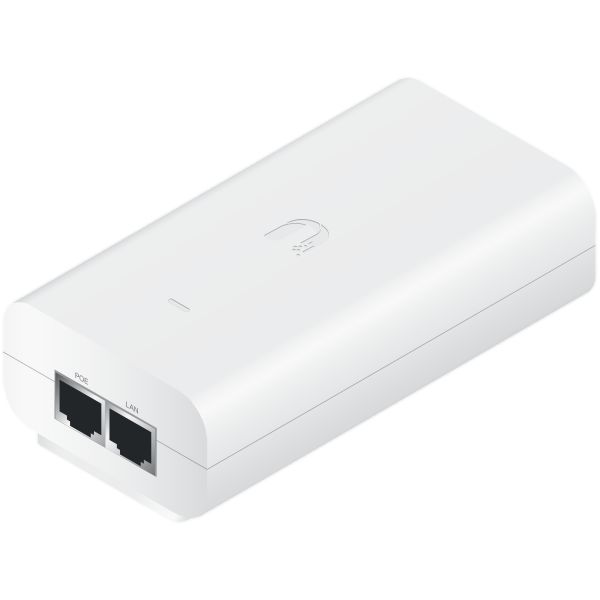

POE-54V-80W
High-quality stabilized PoE power adapter with ground, the LED indicator and 54V output voltage and 1.5A max.
Maximum output power is 80W.
This is a Gigabit version powering over all four pairs.
|
Powering |
Mode |
(+)Pins |
(-)Pins |
|
4-Pair |
A + B |
1,2,4,5 |
3,6,7,8 |
|
Specifications: |
|
Part# |
POE-54V-80W |
|
Dimensions |
123 x 65 x 34 mm |
|
Weight |
299 g |
|
Output voltage |
54V DC @ 1.5A |
|
LAN activity indicator |
No |
|
Gigabit LAN port |
Yes |
|
Remote reset capability |
No |
|
Reset button |
No |
|
Rated voltage |
100-240V AC @ 50/60Hz |
|
Input current |
0.8A @ 120V AC, 0.4A @ 240V AC |
|
Inrush current |
<80A Peak @ 120V AC, <120A Peak @ 230V AC |
|
Efficiency |
87+% |
|
Output ripple |
1% Max. |
|
Switching frequency |
100 kHz Max. |
|
Line regulation |
≤ 3% |
|
Load regulation |
≤ 5% |
|
4-pair powering |
Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) |
|
AC connector |
IEC-320 C6 |
|
Data IN / PoE |
RJ45 shielded socket |
|
Surge protection |
Difference and common mode |
|
Clamping protection |
11V data, 60V power |
|
Max. surge discharge |
1500A (8/20 μs) power |
|
Peak pulse current |
36A (10/1000 μs) data |
|
Shunt capacitance |
<5 pF data |
|
Response time |
<1 ns |
|
Storage temperature |
-30°C to 70°C |
|
Ambient operating temperature |
0°C to 40°C |
|
Ambient operating humidity |
35 to 95% noncondensing |
|
Certifications |
CE, FCC, IC, UL |
|
NDAA Compliant |
Yes |
