Electronics » Header - Terminal » 222-413
222-413- 3P WAGO type Terminal Block - Grey
[1889][222-413]
Price: 0,64€
 Order or Qty  Price
 > 500€  5+   0,63€
 > 1000€  10+   0,61€
 > 2000€  20+   0,60€
 > 5000€  40+   0,59€
 > 10000€  100+   0,58€
Prices exclude VAT

222-413- 3P WAGO type Terminal Block - Grey

In Stock: 46
Order Qty:

222-413 - 3P WAGO type Universal Compact Wire Connector Terminal Block

Easily clamped in a matter of seconds (and, where required just as quickly released) – WAGO terminal blocks and connectors have proven themselves beyond a shadow of a doubt for more than 35 years now.

In control cabinets or junction boxes, or on carrier rails – the reliability of these products makes them ideal for use in building automation and power engineering, in the automotive industry, in traffic and process technology and in mechanical engineering.

Specifications:
Total number of connection points
Total number of potentials
Color Grey
Ratings according to 1  EN 60664
Pollution degree 3
Rated voltage EN 450 V
Rated surge voltage 4 kV
Nominal current 32 A
Connection technology CAGE CLAMP®
Number of connection points
Nominal cross section  4 mm²
Solid sizes  0.2 … 4 mm² / 24 … 12 AWG
stranded, connectable  0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded wires  0.14 … 4 mm² / 24 … 12 AWG
Strip length  11 mm / 0.43 in
Type of wiring  Side-entry wiring
Flammability rating per UL 94  V2
Weight 1.6 gr

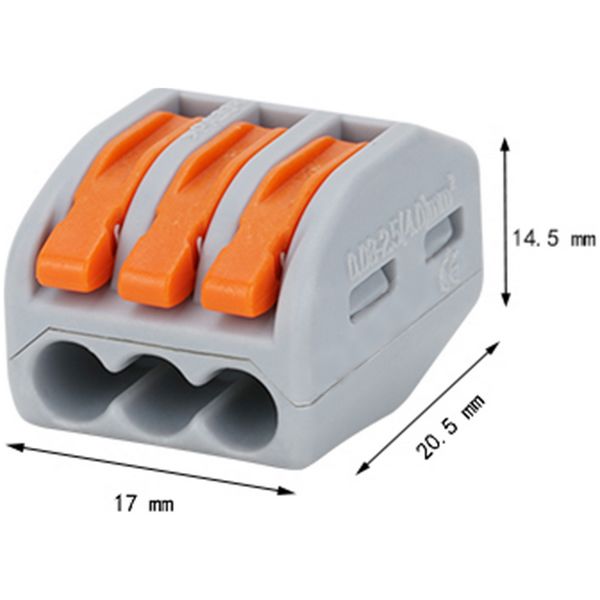

Dimentions
20.5 x 17 x 14.5mm


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
