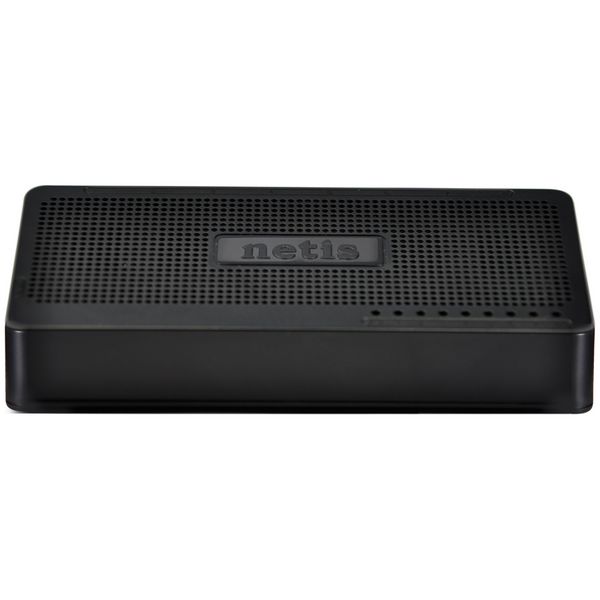

8 Port Fast Ethernet Switch
This netis ST3108S Fast Ethernet Switch provides an easy way to expand your wired network with 8 10/100Mbps Auto-Negotiation RJ45 ports.
All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports.
Together with the plug-and-play & Green Power feature, it may ensure you a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network.
-

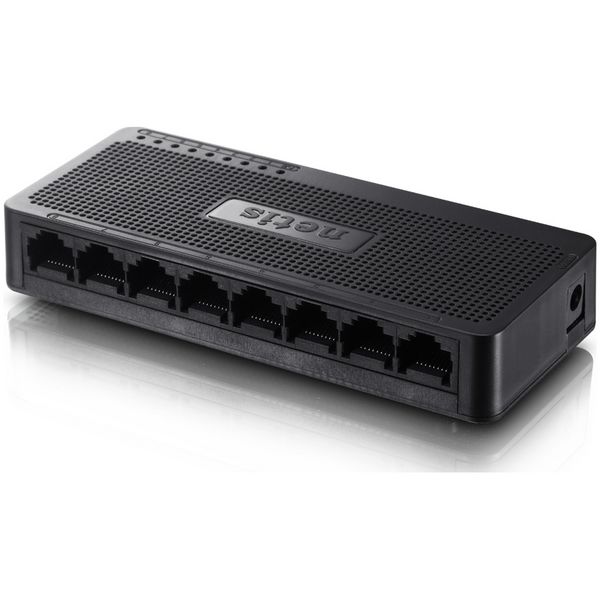

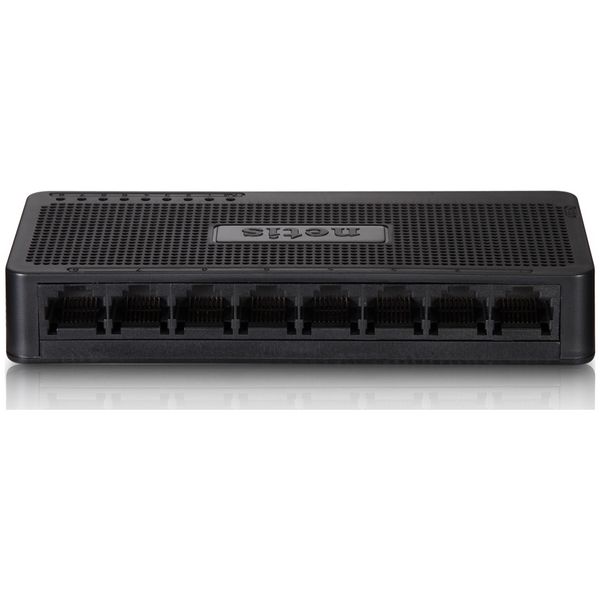

8 10/100Mbps Auto-Negotiation RJ45 ports, supports auto MDI/MDIX
-
Green Ethernet technology saves the power up to 70%
-
IEEE 802.3x flow control provides reliable data transfer
-
Plastic case, desktop or wall-mounting design better for home and office use
-
Plug and play, no configuration required
|
Hardware |
|
Interface |
8 * 10/100M RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
|
LED |
PWR, 1-8 |
|
Power Supply |
DC 5V/800mA(Output) |
|
Dimensions (L x W x H ) |
130 x 70 x 26 mm |
|
Switching Features |
|
Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3x Flow Control |
|
Access Method |
CSMA/CD |
|
Transmission Method |
Store and Forward |
|
Data Transmission Rate |
10/100Mbps(Half-duplex)
20/200Mbps(Full-duplex) |
|
MAC Address Table |
2K |
|
Others |
|
Certification |
FCC, CE, BSMI |
|
Environment |
Operating Temperature: 0℃~40℃
Storage Temperature: -20℃~70℃
Operating Humidity: 5%~90% non-condensing S
torage Humidity: 5%~90% non-condensing |
