Input / Output Specifications: |
|
DC Input Voltage |
12v-48V ± 5 % |
|
DC Output Voltage |
12v-48V ± 5 % |
|
Max Output Current |
0.4A Max per port |
|
Over Current Protection |
None |
|
General Specifications: |
|
Operating Temperature |
0oC ~ +50oC |
|
Storage Temperature |
-20oC ~ +70oC |
|
Humidity |
Up to 90% |
|
Weight |
250gr |
|
Dimensions |
230x100x20mm |
|

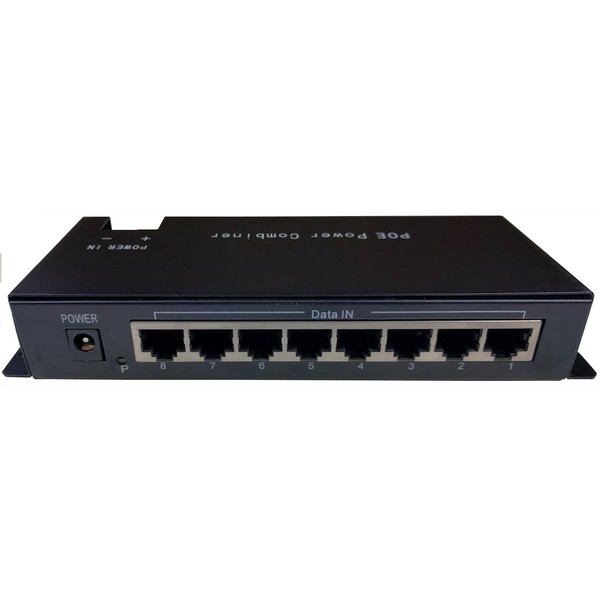

Input Pins
RJ-45 Plug |
Output Pins
RJ-45 Jack |
|
1 |
Tx(+) |
Tx(+) |
1 |
|
2 |
Tx (-) |
Tx (-) |
2 |
|
3 |
Rx (+) |
Rx (+) |
3 |
|
4 |
N.C. |
V+ |
4 |
|
5 |
N.C. |
V+ |
5 |
|
6 |
Rx (-) |
Rx (-) |
6 |
|
7 |
N.C. |
GND |
7 |
|
8 |
N.C. |
GND |
8 |
|
