IOT-PCF8574LCD
PCF8574LCD - I2C 8-bit I/O Interface for LCD
[1944][IOT-PCF8574LCD]
The product is
no longer available
Prices exclude VAT

PCF8574LCD - I2C 8-bit I/O Interface for LCD

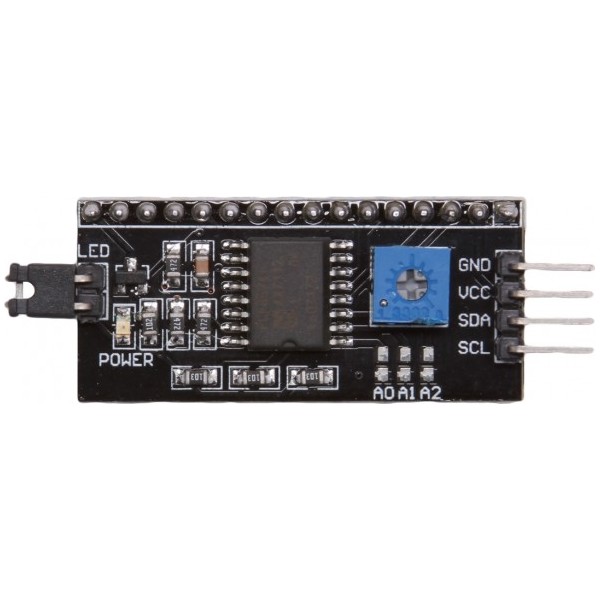

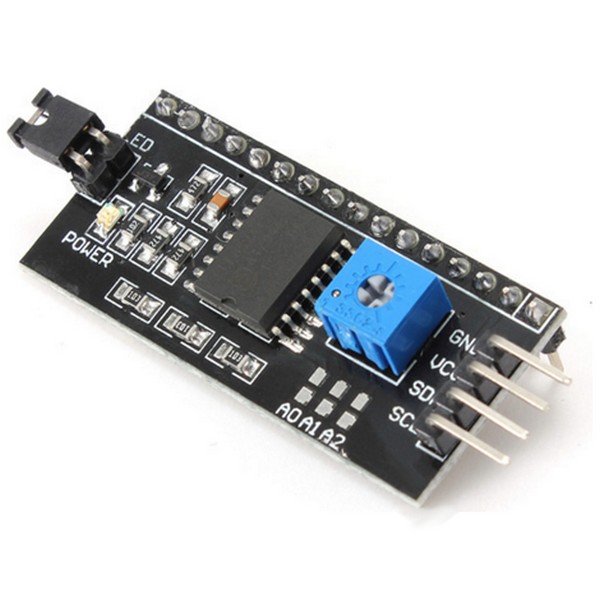

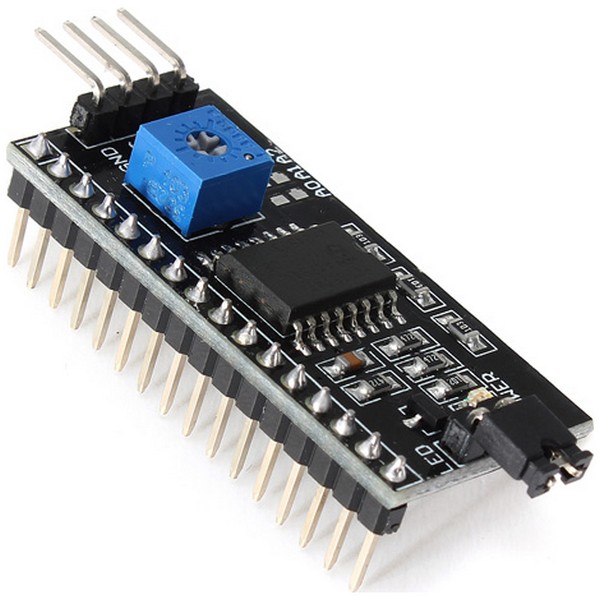

PCF8574T - I2C LCD module

Function introduction:

Based on I2C interface I/O extension module,using 2 I/O can be extended to 8 I/O (maximum can be used at the same time 8 PCF8574, expanding to 64 I/O)

PCF8574, I2C interface, and 8 bit parallel

Product Links:
Datasheet Datasheet

Specifications
Module PCF8574T
Power supply
2.6 - 6V DC
Interface I2C
GPIO
8bit parallel
Standby current
10 uA
Διαστάσεις  40.5*16.2*4.5mm
Βάρος 4gr

Additional Images:

Related Products:
IOT-LCD2004
