Antenna 2.4GHz » EZ-CM24V05PNF
5dBi 2.4GHz Ceiling Mount OMNI Antenna - N-Type Female Pigtail
[1947][EZ-CM24V05PNF]
Price: 7,50€
 Order or Qty  Price
 > 500€  5+   7,35€
 > 1000€  10+   7,20€
 > 2000€  20+   7,05€
 > 5000€  40+   6,90€
 > 10000€  100+   6,75€
Prices exclude VAT

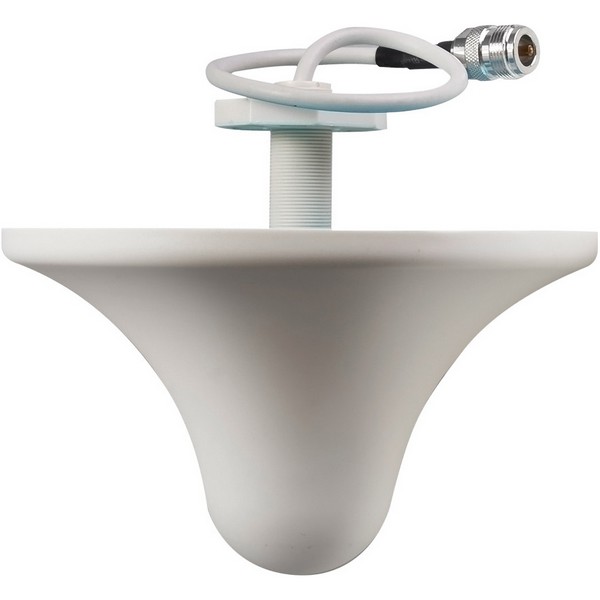

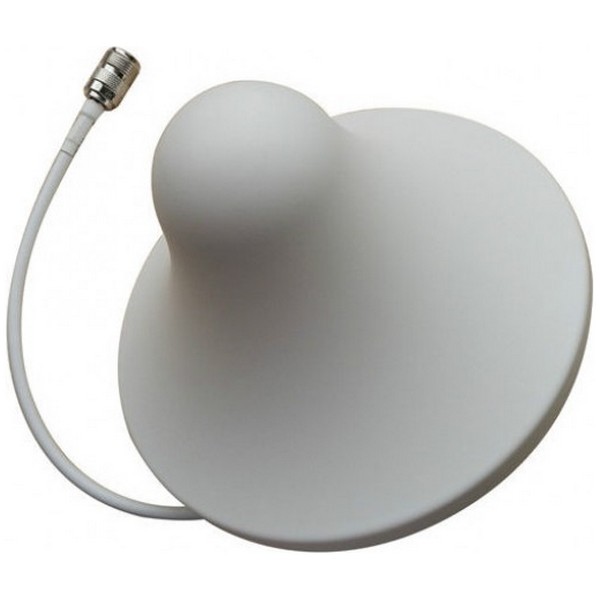

5dBi 2.4GHz Ceiling Mount OMNI Antenna - N-Type Female Pigtail

In Stock: 3
Order Qty:

The EZ-CM24V05PNF Indoor Ceiling OMNI antenna systems offered by e-zy.net are designed for in-building transmission of Wireless LAN signals.

The antennas are constructed of UL94-V0 white ABS plastic. The low profile attractive styling blends well in almost any office or home environment.

Mounting is simplified with a single hole mount design to easily mount to drop ceilings or fixed ceilings.

The antenna comes with a threaded plastic connector long enough to mount through a max 1" thick ceiling.

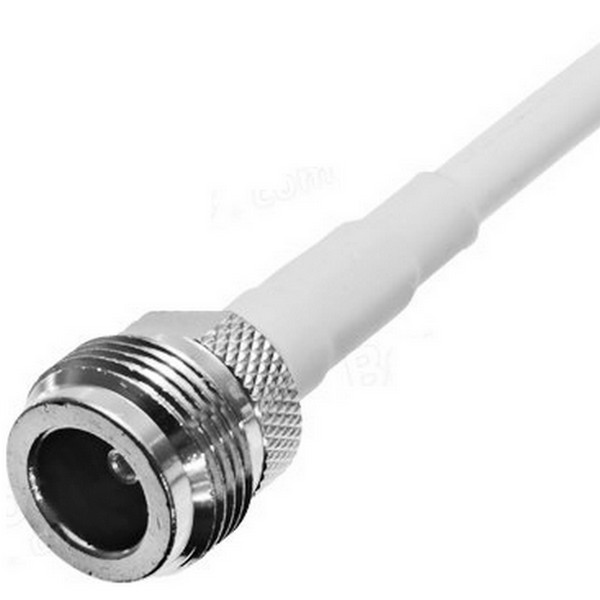

An an N-Type Female connector in a 30cm pigtail comes through the top part of the mounting connector.

Specifications:
Freq Range 2400-2500MHz
Bandwidth 100MHz
Gain 5dBi
VSWR <1.4
Ligthning Protection DC Ground
Max Power 50W
Polarization Vertical
Impedance 50Ohm
Connector N-Type Female 30cm pigtail
Dimensions D184 x 45mm
Weight 280gr
Radome Material UV Stabilized ABS
Radiator Metrial Brass
Color Sand white
Package Weight 370gr

Additional Images:
