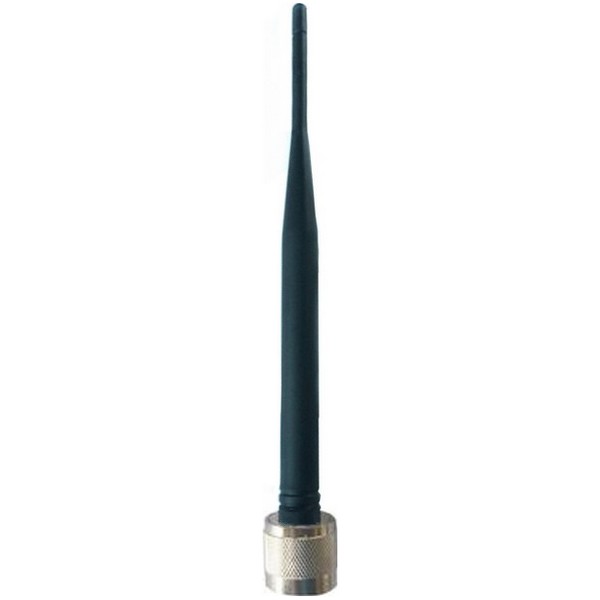

2.4GHz 5dBi Mesh OMNI (N-Male connector)
The new OM24V05MNM OMNI Directional Antenna is made of TPEE Material with steel base, provides broad coverage and 5 dBi gain, and is available with an integrated N-Type Male Connector.
The gain of this antenna is 5dBi and comes with 20o of Vertical BeamWidth.
The new OM24V05MNM antennas are designed to allow you to get more range out of your existing indoor or outdoor wireless equipment.
The antenna features high gain in an aesthetic package. Because of their high gain the user can expect extra signal strength.
This will increase range and signal strength to allow the wireless equipment to operate at optimal speed.
|
Specifications: |
|
Frequency |
2400-2485MHz |
|
Gain |
5dBi |
|
Polarization |
Vertical |
|
Vertical BeamWidth |
20° |
|
Horizontal BeamWidth |
360° |
|
Impedance |
50 Ohm |
|
Max. Input Power |
50 Watts |
|
V.S.W.R. |
<2.0 avg. |
|
Weight |
25gr |
|
Length |
200mm |
|
Diameter |
11mm |
|
Radome Material |
TPEE |
|
Radome Color |
Balck |
|
Working Temperature |
-40°C to 55°C |
|
Connector |
N-Type Male |
