Antenna 2.4GHz » EZ-OM24V05MRS
5dBi 2.4GHz Mesh OMNI Antenna - RP-SMA Plug Connector
[EZ-OM24V05MRS]
Price: 2,24€
 Order or Qty  Price
 > 500€  5+   2,20€
 > 1000€  10+   2,15€
 > 2000€  20+   2,11€
 > 5000€  40+   2,06€
 > 10000€  100+   2,02€
Prices exclude VAT

5dBi 2.4GHz Mesh OMNI Antenna - RP-SMA Plug Connector

In Stock: 34
Order Qty:

EZ-OM24V05MRS

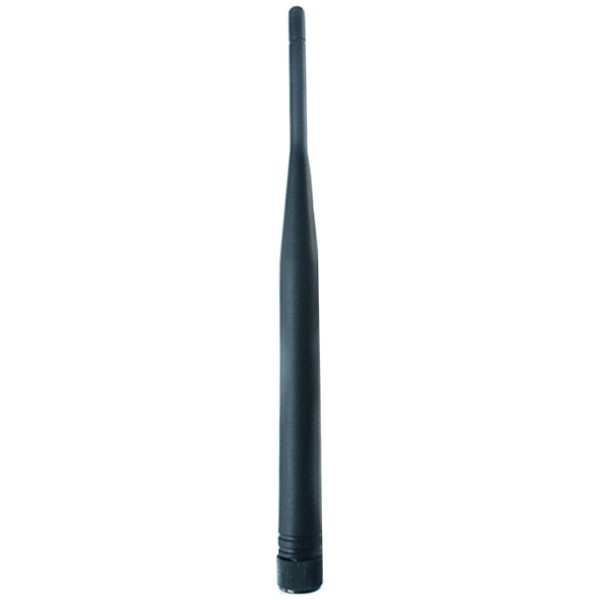

OMNI Directional Antenna is made of TPEE Material with steel base, provides broad coverage and 5 dBi gain, and is available with an integrated RP-SMA Plug Connector.

The gain of this antenna is 5dBi and comes with 50° of Vertical BeamWidth.

The antenna features high gain in an aesthetic package. Because of their high gain the user can expect extra signal strength. This will increase range and signal strength to allow the wireless equipment to operate at optimal speed.

The antenna is targeted for MESH applications and  is manufactured to mount directly on the indoor or outdoor case of the electronics. There is no mounting bracket with this OMNI Directional antenna.

It is only 19cm in length and is available with RP-SMA Connector  (Female thread / Female center pin.)

Specifications: Min Typ Max Units
Frequency 2400 - 2483 MHz
Gain 5.0 5.5 6.0 dBi
Ver Beamwidth   50°   Deg
Hor Beamwidth   360°   Deg
VSWR   1.5:1
Impedance   50   Ohm
Power     10 Watt
Temperature -10   +70 Deg C
Connector   RP-SMA
Weight   27   gr
Dimensions   190 x 14D   mm
Connector
RP-SMA Plug
Female Thread
Female Center pin
