Antenna 2.4GHz » EZ-RD24R09INM
9dBi 2.4GHz Swivel OMNI Antenna -N-Type Male Connector
[EZ-RD24R09INM]
Price: 4,80€
 Order or Qty  Price
 > 500€  5+   4,70€
 > 1000€  10+   4,61€
 > 2000€  20+   4,51€
 > 5000€  40+   4,42€
 > 10000€  100+   4,32€
Prices exclude VAT

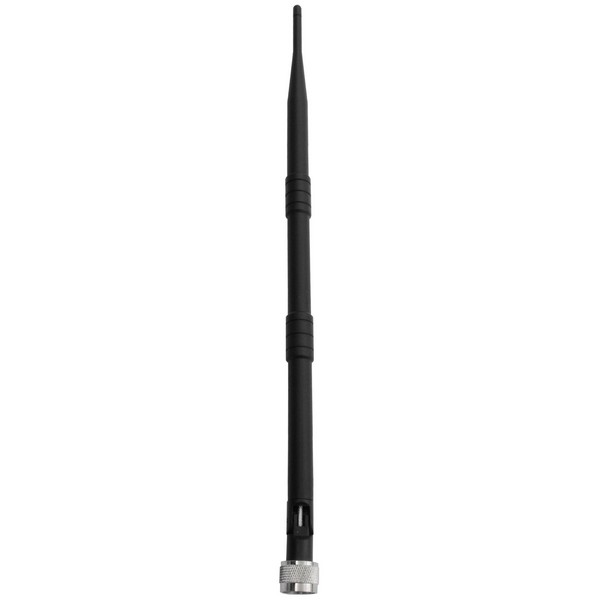

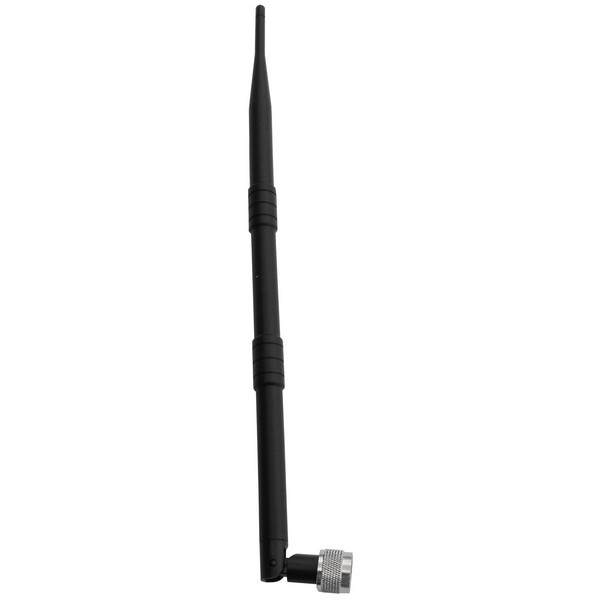

9dBi 2.4GHz Swivel OMNI Antenna -N-Type Male Connector

In Stock: 13
Order Qty:

Description :

The new EZ-OM24S09IMN OMNI Directional Antenna is made of TPEE Material with steel base, provides broad coverage and 9 dBi gain, and is available with an integrated N-Type Male Connector.

The gain of this antenna is 5dBi and comes with 10° of Vertical BeamWidth.

The antenna features high gain in an aesthetic package. Because of their high gain the user can expect extra signal strength.

This will increase range and signal strength to allow the wireless equipment to operate at optimal speed.

The EZ-OM24S09IMN is ideally suited for MESH and / or MultiPoint applications where wide coverage is desired.

Specifications: Min Typ Max Units
Frequency 2400 - 2483 MHz
Gain 9.0 9.5 10.0 dBi
Ver Beamwidth   10°   Deg
Hor Beamwidth   360°   Deg
VSWR   1.5:1
Impedance   50   Ohm
Power     10 Watt
Temp -10   +70 °C
Connector   N-Type Male
Weight   250   gr
Dimentions   495 x 20D   mm

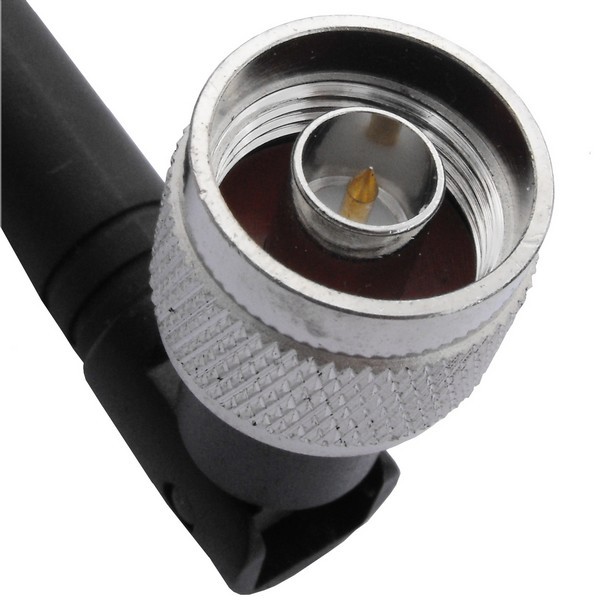

Connector :
N-Type Male
Female Thread
Male center pin
