UBNT UF-Nano, U-Fiber, Nano, GPON CPE
[UF-Nano]
Price: 62,24€
 Order or Qty  Price
 > 500€  5+   61,62€
 > 1000€  10+   61,00€
 > 2000€  20+   60,37€
 > 5000€  40+   59,75€
 > 10000€  100+   59,13€

UBNT UF-Nano, U-Fiber, Nano, GPON CPE

Ships in:
3-5 working days
Order Qty:

UF-Nano

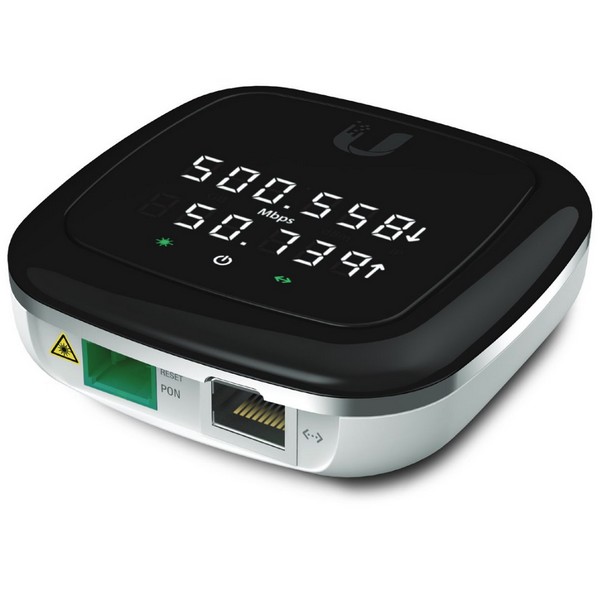

Ιs a robust, high-performance GPON CPE that features an informational LED display and a sleek, sophisticated industrial design.

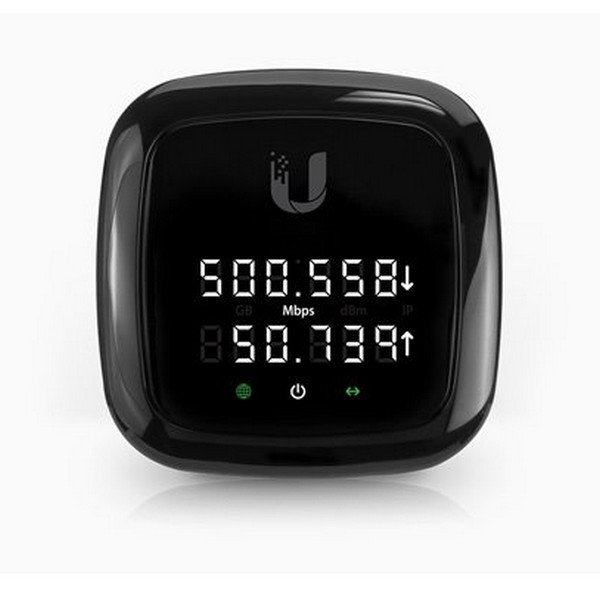

The easy-to-read display provides status information: IP address, signal strength, and current throughput.

The Nano G is powered by 24V passive PoE - a single cable to carry both power and data.

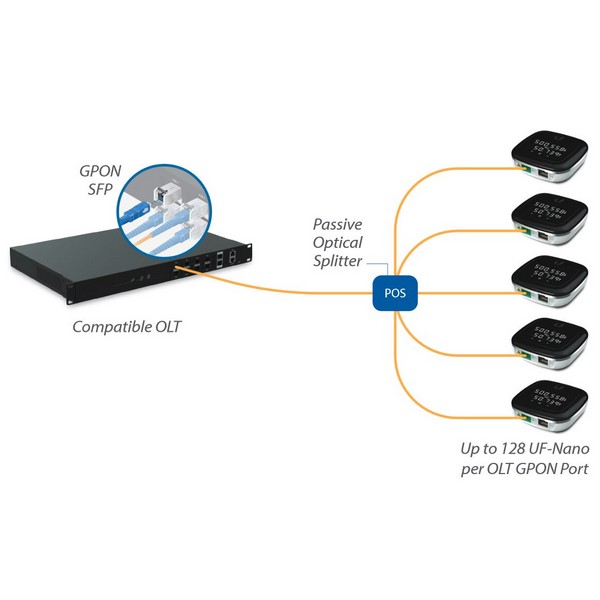

Up to 128 Nano G devices can be connected to a single GPON port.

Supporting GPON links of up to 20km, the Nano G integrates with the UFiber OLT (coming soon) and third-party OLT devices.

Specifications:
Dimensions: 77 x 77 x 28 mm
Weight: 110 g

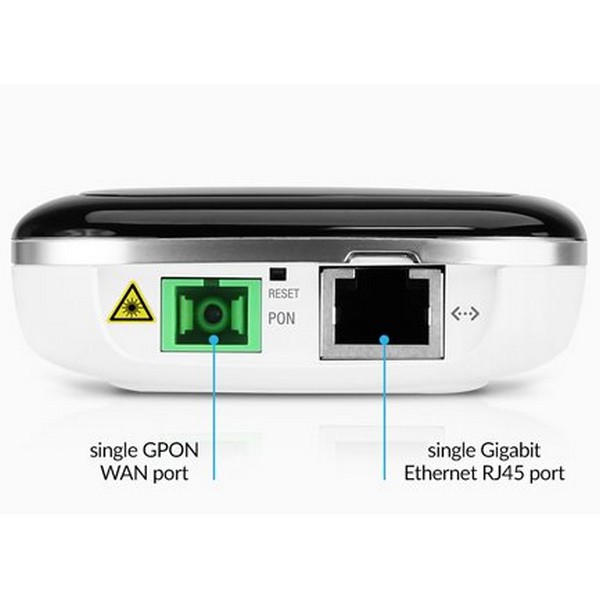

Networking Interface Speeds:   GPON WAN, ITU G.984,
2.488 Gbps Downstream,
1.244 Gbps Upstream
GbE LAN, 10/100/1000 Mbps
Management Interface : In-Band Ethernet/PON
Normal Optical Power Range: TX (Class B+): 1.5 dBm to 5 dBm
RX: -8 dBm to -28 dBm
Power Method: Passive PoE (Pins +4, 5; -7, 8)
Dying Gasp Support

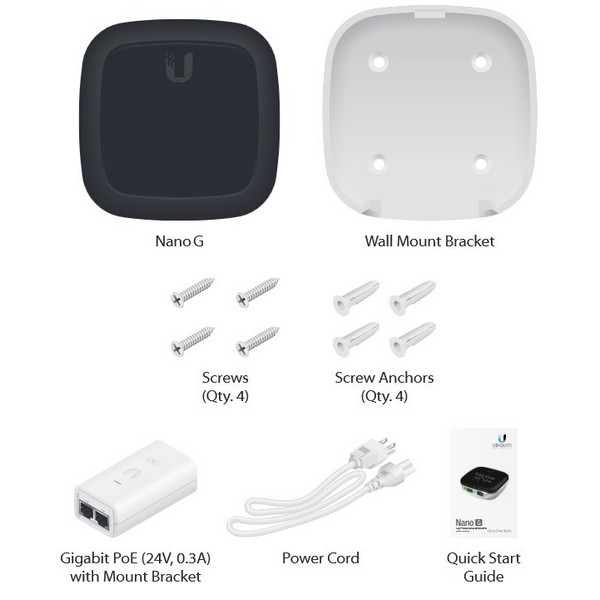

Power Supply: PoE Adapter: 24V, 0.3A (Included)
Max. Power Consumption: 7W
Supported Voltage Range: 20V to 28V
Processor Specs: MIPS-32, 240 MHz
Memory Information: 128 MB DDR3
Buttons: Display Information/Reset
Operating Temperature: -10°C to 45°C
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC


Additional Images:



Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
