Surge Protection » EZ-SPPOEGv2
EZ-SPPOEG Gigabit Ethernet Surge Protector V2
[EZ-SPPOEGv2]
Price: 14,30€
 Order or Qty  Price
 > 500€  5+   14,01€
 > 1000€  10+   13,73€
 > 2000€  20+   13,44€
 > 5000€  40+   13,16€
 > 10000€  100+   12,87€

EZ-SPPOEG Gigabit Ethernet Surge Protector V2

In Stock: 57
Order Qty:

Description :

The EZ-SPPOEG v2  is a low cost 100/1000Mbps Network POE Lightning/Surge 10KA protector to help protect equipment from surges due to lightning and grid power fluctuations.

It protects all 8 CAT6 pins with 7.5V clamp voltage on the data wires and 70V clamp voltage on the POE power wires.

It has an all metal case for EMI suppression.

16AWG ground wire.

Features :

  • Up to Gigabit Data Rate
  • 7.5V Data / 70V POE Clamping Voltage
  • CAT5 and CAT5e Compatible. All 8 pins protected.
  • Full metal housing
  • Complies with IEC 61643-21 Standard
Specifications
Operating Voltage Data 5V ; POE 48V
Clamping Voltage 7.5V Data (Pins 1,2,3,6) - 70V POE (Pins 4,5,7,8)
Max Surge Discharge Current 10KA (8/20us)
Peak Pulse Current 100A (10/1000us)
Protection Mode Differential & Common Mode L-L, L-G
Insulation Resistance >1000 MOhm
Shunt Capacitance < 25 pF
Data Rate 100/1000 Mbps
Response Time <5 ns
Operating Temperature -20 to +60°C
Storage Temperature -20 to +80°C
Operating Humidity 0% to 95% non condensing

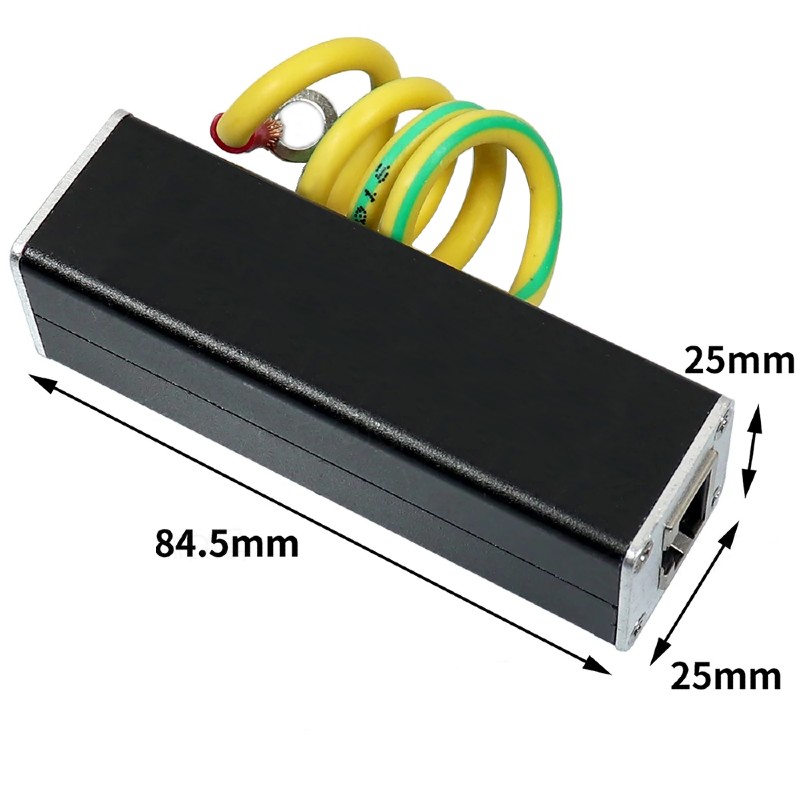

Size (L x W x H) 3.2 x 1 x 1" (82 x 25 x 25mm)
Weight 2.4oz (68g)
Ground Wire 16 AWG, 10" (26cm) long

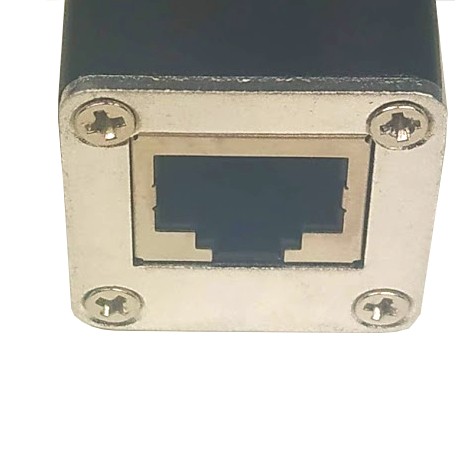

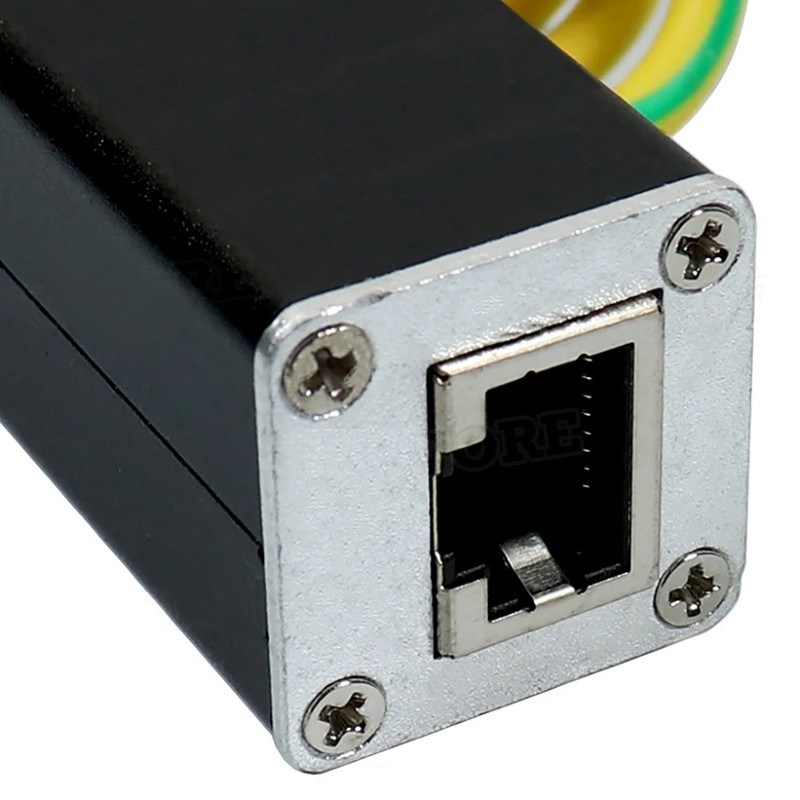

Connectors RJ45 Jacks
IEC Standard 61000-4-5, 61643-21
IEEE/ ANSI Standard C62.45


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
