Power Supply » Accessories » EZ-MDCJ2
DC Jack / Female 2.1mm To Spring Terminal Block
[EZ-MDCJ2]
Price: 0,44€
 Order or Qty  Price
 > 500€  5+   0,43€
 > 1000€  10+   0,42€
 > 2000€  20+   0,41€
 > 5000€  40+   0,40€
 > 10000€  100+   0,40€
Prices exclude VAT

DC Jack / Female 2.1mm To Spring Terminal Block

In Stock: 100
Order Qty:

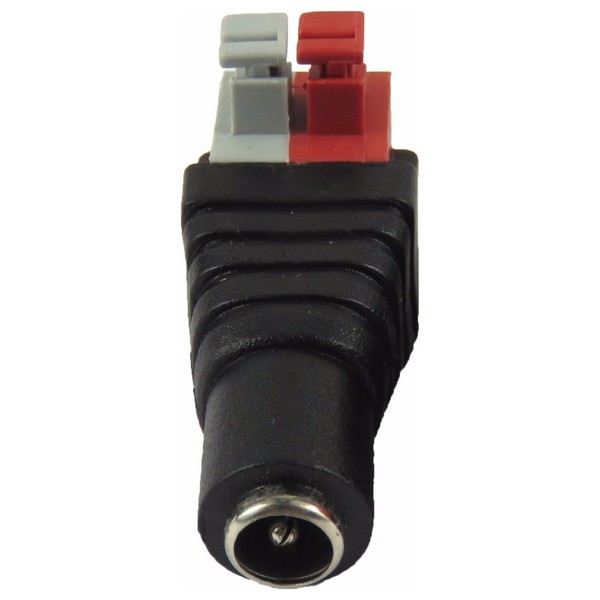

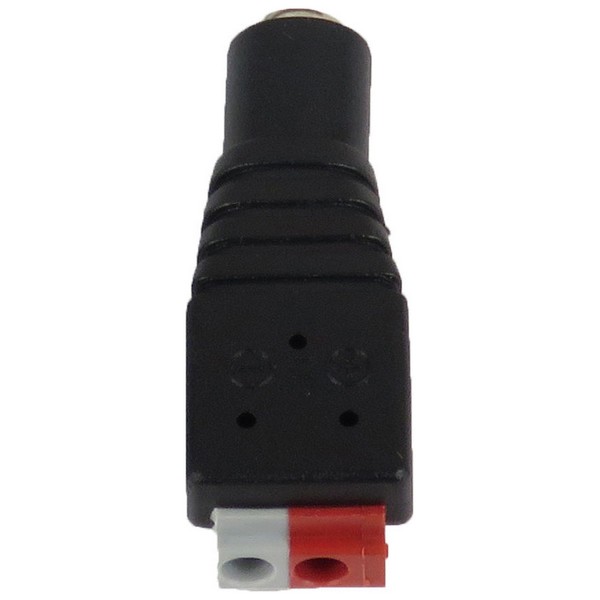

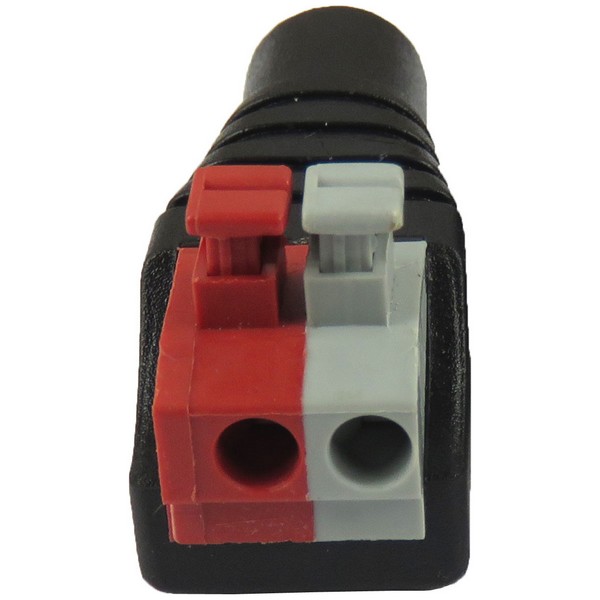

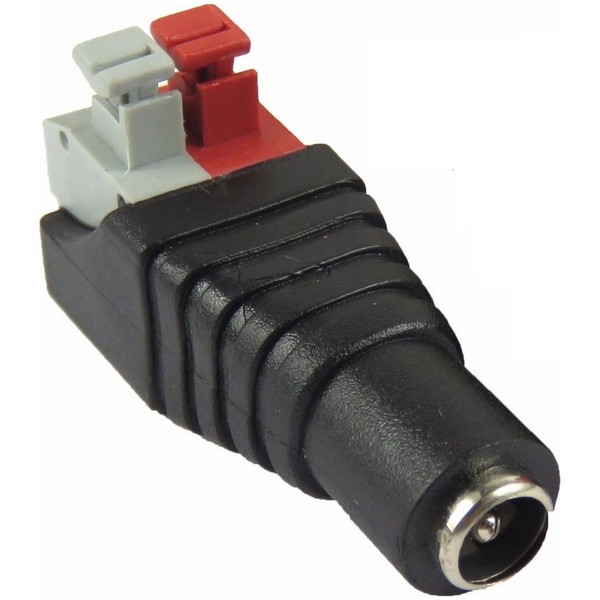

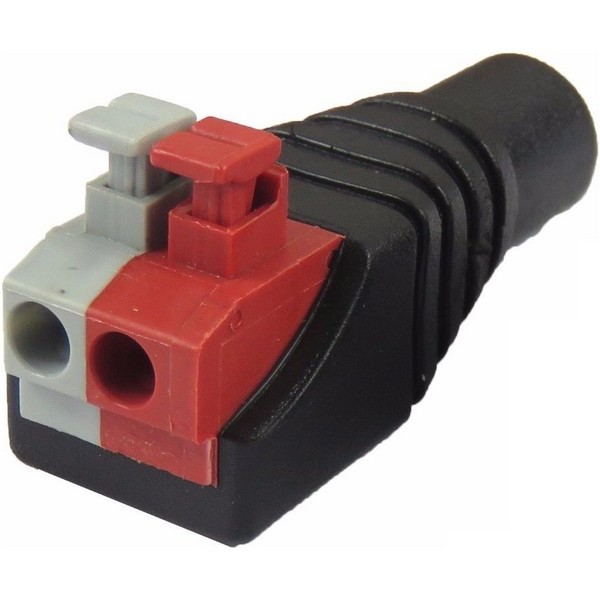

The EZ-MDCJ2 DC Jack to Spring Terminal Block is a connector of a 2.1mm female DC plug to a spring terminal block.

Ιt simplifies any POE Injector/Splitter, LED lighting system, CCTV installation, access control, or security application.

Featuring solid and durable construction, its small size is convenient for travel - simply throw it in your carry-on and go.

Specifications:
2.1mm DC plug Jack
Maximum allowable voltage: 30 VAC/VDC
Maximum allowable current: 2 Amp
Plug dimensions: 5.5 (OD) x 2.1mm
UL-Listed AWG#22 wires


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
