Antenna 2.4GHz » EZ-OMD7VMNM
2.4/5Ghz Dual Band MESH Omni Antenna - N-Type Male Connector
[2095][EZ-OMD7VMNM]
Price: 7,74€
 Order or Qty  Price
 > 500€  5+   7,59€
 > 1000€  10+   7,43€
 > 2000€  20+   7,28€
 > 5000€  40+   7,12€
 > 10000€  100+   6,97€
Prices exclude VAT

2.4/5Ghz Dual Band MESH Omni Antenna - N-Type Male Connector

In Stock: 22
Order Qty:
UPC:728615665017

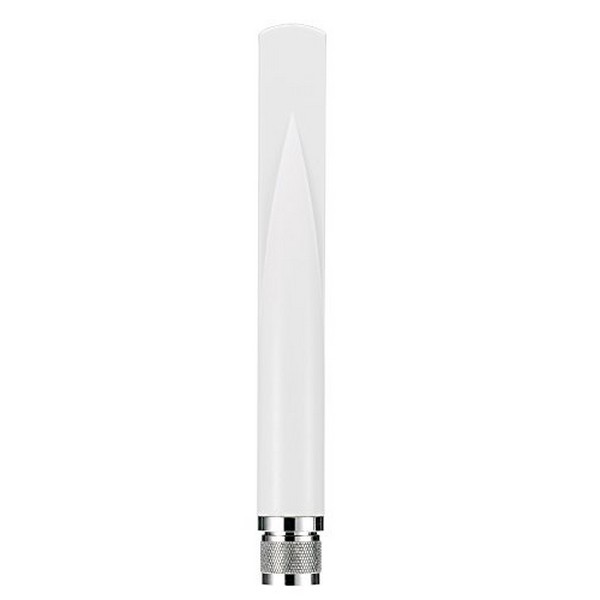

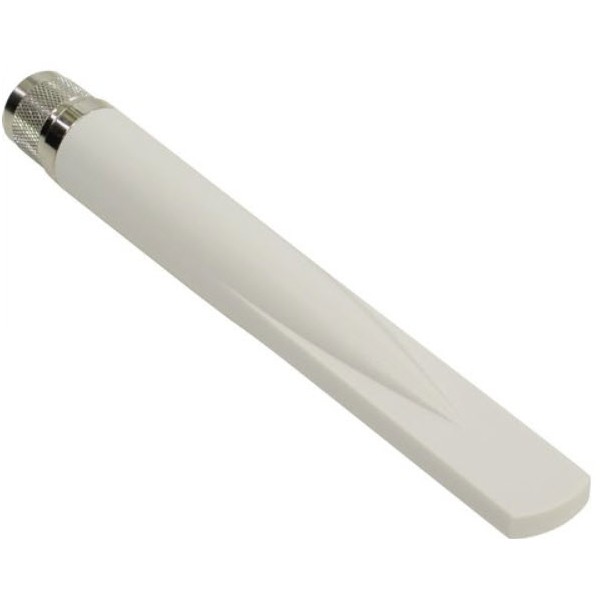

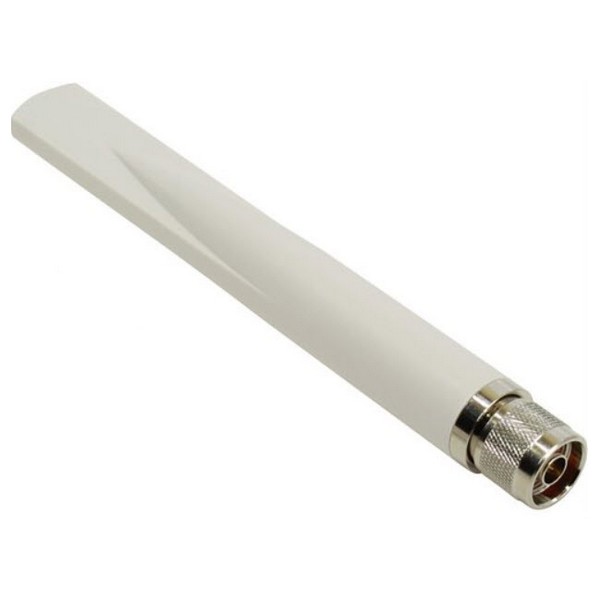

Not to be confused with the typical "rubber duck" antenna, the EZ-OMD7VMNM antenna utilizes a printed antenna circuit to achieve true dual band coverage in a very compact form factor.

The rugged ABS body makes this antenna suitable for use in a wide variety of applications, including office LAN environments, factory floors, remote telemetry and outdoor environments.

Electrical Specifications:
2.4GHz Peak Gain 7 dBi
5.8GHz Peak Gain 4.5 dBi
Impedance 50 Ohm
VSWR 2.0:1 Max
Polarization Vertical, Linear
Horizontal HPBW 360°
Vertical HPBW 30° @ 2.4GHz, 15° @ 5 GHz
Maximum power 2W
Wind Survivability 134 mph
Operating Temperature -40°C to +70°C
Operating Humidity 95% @ 55°C
Radome Colour Gray
Radome Material ABS
Weight 70g
Dimensions 22 x 183 mm


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
