EZ-PSA053-I
802.3af/at - 48v to 5V/2A 10/100 PoE Splitter - 3.5mm with - isolation
[2179][EZ-PSA053-I]
The product is
no longer available
Prices exclude VAT

802.3af/at - 48v to 5V/2A 10/100 PoE Splitter - 3.5mm with - isolation

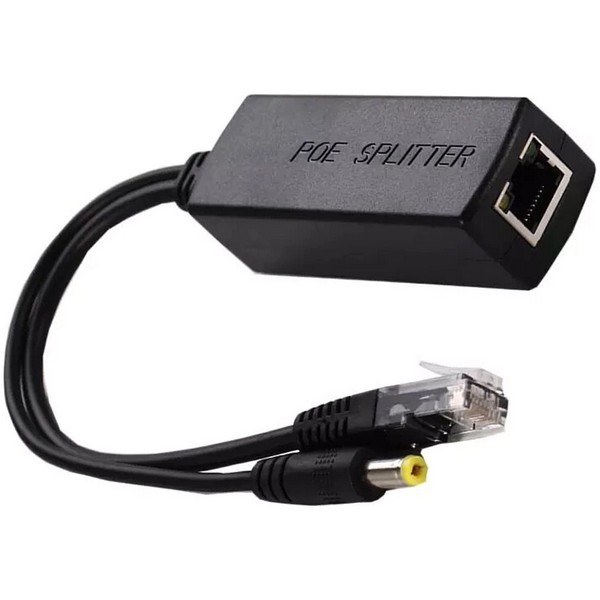

EZ-PSA053-I is an 802.3af/at splitter to power non-PoE enabled devices. - With Isolation Transformer

It accepts 802.3af/at PoE to output fixed 5v/2.4A via the DC Jack (3.5 x 1.35mm) and 10/100 RJ45 Jack.

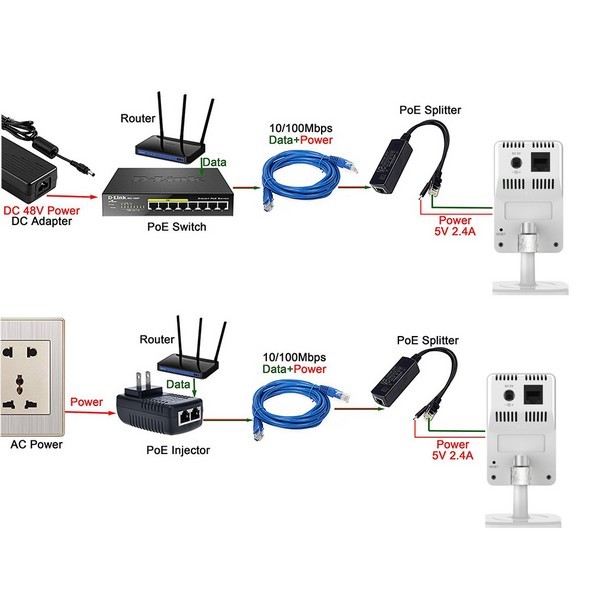

This way a non PoE enabled 5V device (Raspberry Pi, IP Camera) can be powered remotely via any 802.3af/at PoE Injector or PoE Switch

Input / Output Specifications :
DC Input Voltage Max 48V DC
DC Output Voltage 5V DC
Max Output Current 2.4A Max.

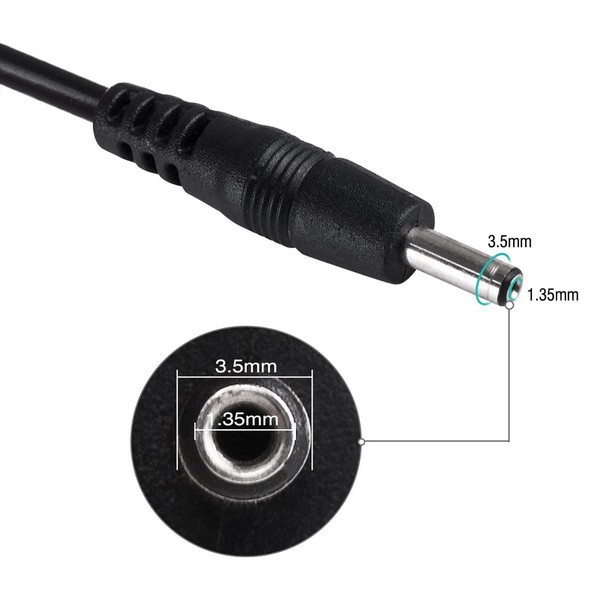

DC Jack 3.5mm x 1.35mm
Operating Temperature -10oC ~ +60oC
Storage Temperature -20oC ~ +70oC
Humidity Up to 90%
Weight 58gr
Dimensions 290mm * 28mm * 21mm


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
