PoE » 802.3af/at Splitter » EZ-PSA05U

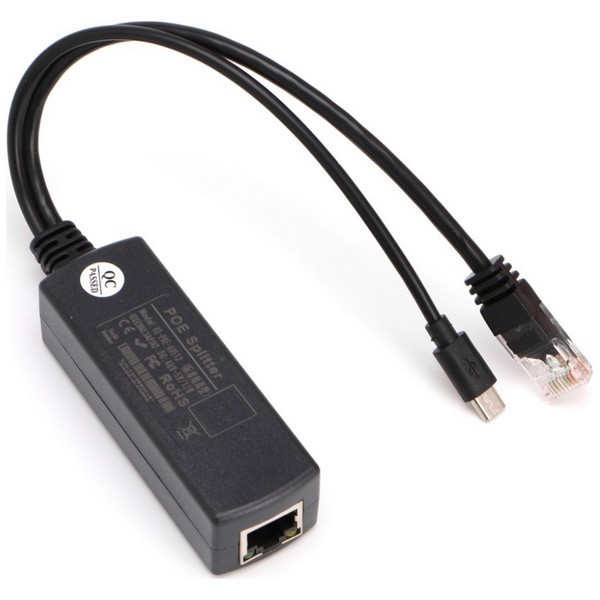

802.3af/at - 48v to 5V/2A 10/100 PoE Splitter - Micro USB with isolation
[EZ-PSA05U]
Price: 4,60€
 Order or Qty  Price
 > 500€  5+   4,51€
 > 1000€  10+   4,42€
 > 2000€  20+   4,32€
 > 5000€  40+   4,23€
 > 10000€  100+   4,14€
Prices exclude VAT

802.3af/at - 48v to 5V/2A 10/100 PoE Splitter - Micro USB with isolation

In Stock: 112
Order Qty:

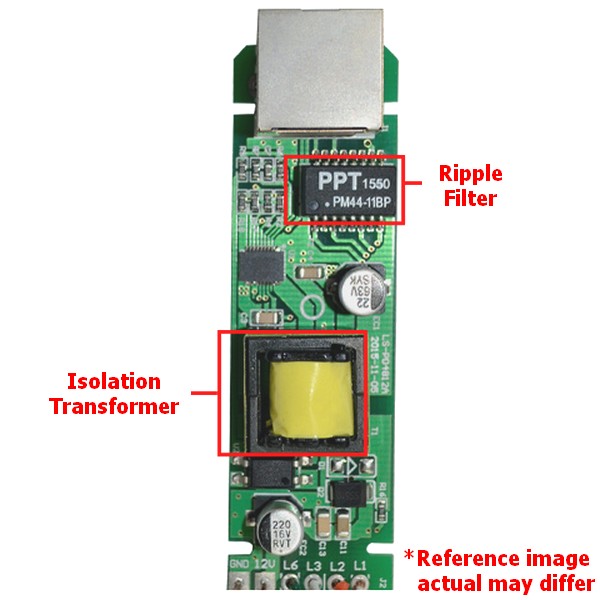

EZ-PSA05U is an 802.3af/at splitter to power non-PoE enabled devices. With isolation transformer

It accepts 802.3af/at PoE to output fixed 5v/2.4A via the Micro USB and 10/100 RJ45 Jack.

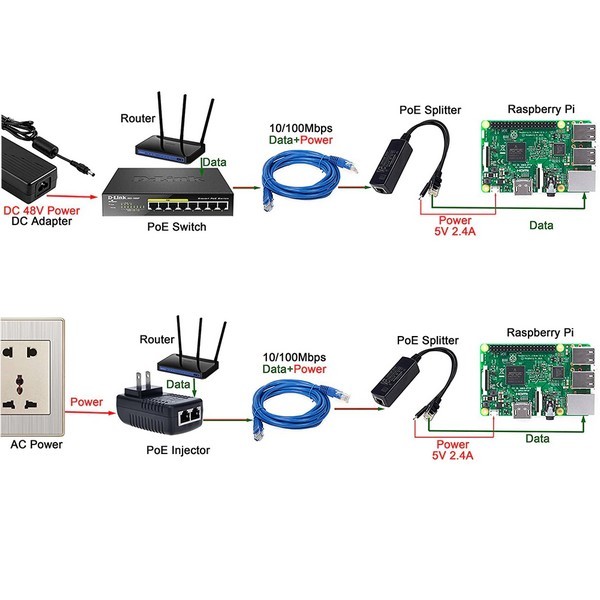

This way a non PoE enabled device can be powered remotely via any 802.3af/at PoE Injector or PoE Switch

Input / Output Specifications :
DC Input Voltage Max 802.3af/at 48V DC
DC Output Voltage 5V DC
Max Output Current 2.4A Max.

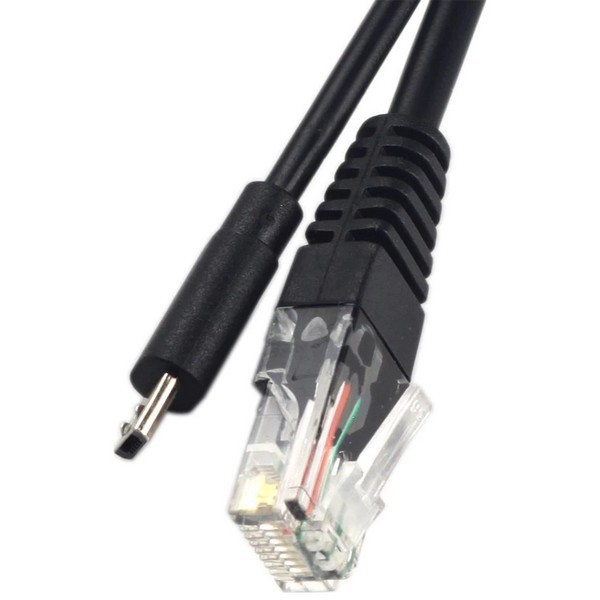

DC Jack Micro USB
Operating Temperature -10oC ~ +60oC
Storage Temperature -20oC ~ +70oC
Humidity Up to 90%
Weight 58gr

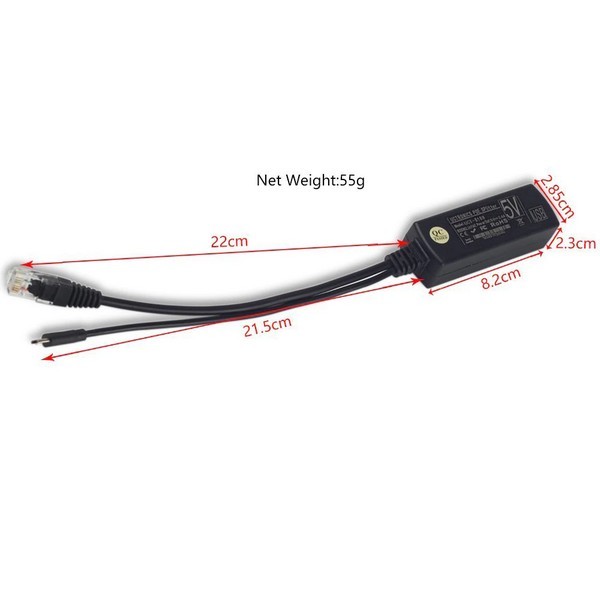

Dimensions 290mm * 28mm * 21mm


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
