CAT5/6 - RJ45 » Accessories » EZ-RJ45ECS22
EZ-RJ45ECS22 - RJ45 Ethernet Connector System Cat.5e - M22
[EZ-RJ45ECS22]
Price: 6,08€
 Order or Qty  Price
 > 500€  5+   5,96€
 > 1000€  10+   5,84€
 > 2000€  20+   5,72€
 > 5000€  50+   5,59€
 > 10000€  100+   5,47€
Prices exclude VAT

EZ-RJ45ECS22 - RJ45 Ethernet Connector System Cat.5e - M22

In Stock: 2
Order Qty:

EZ-RJ45ECS connector system is a field replaceable outdoor rated Ethernet connection system for high speed 10BaseT, 100BaseT and 1000BaseT networks.

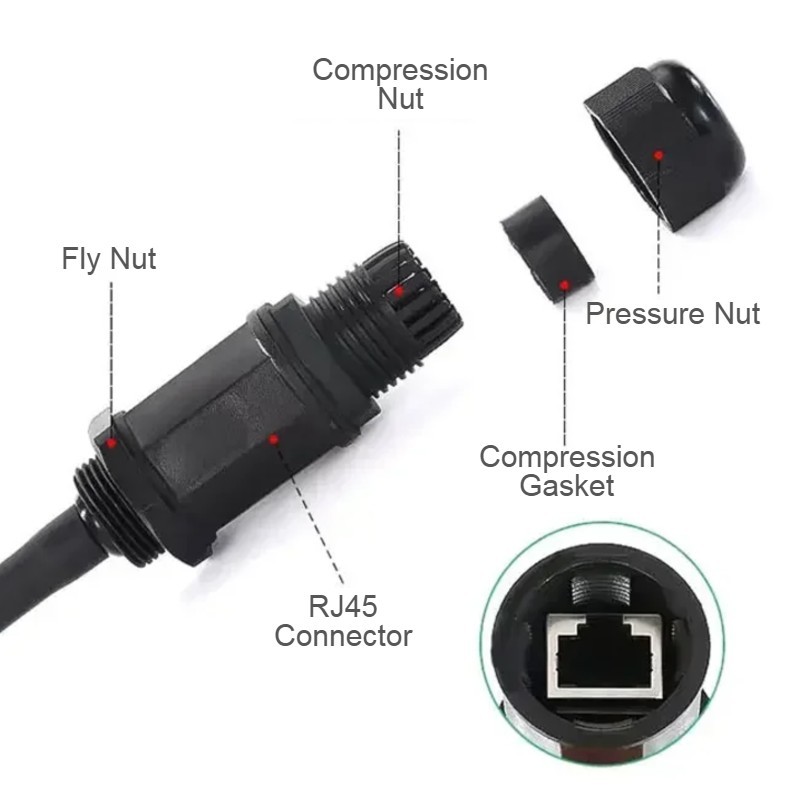

The system features a standard RJ45 Receptacle mounted in a UV protected housing and a mating cable gland which passes an RJ45 connector and seals the cable to IP67 requirements.

These include outdoor applications such as wireless equipment or video surveillance equipment and indoor applications such as equipment used in factory automation or harsh industrial processes.

RJ45 connectors are not designed for high reliability in the presence of moisture, dust or corrosive elements.

Τhe IP68 sealing ability of the EZ-RJ45ECS connector system provides a reliable connection, even in very harsh environments, for many years of trouble free service.

Specifications:
Part Number EZ-RJ45ECS-22
RJ45 10/10/1000 Cat5e
Mechanical Cat5 Cable Strain Relief
Material UV Resistant Nylon 66
Sealing IP67
Temperature -40°C to +85°C

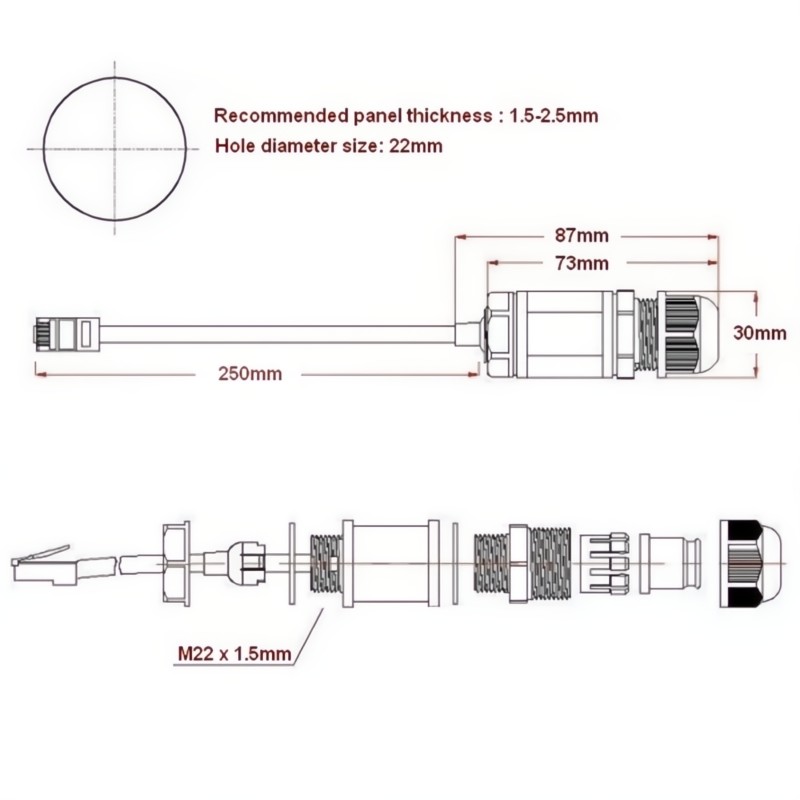

Installation Hole Size ø 22mm
Installation Panel Size 1.5mm-2.5mm
Gland Dimensions 87mm x 30mm
Overal Dimenstions 30cm x 3cm
Weight 60gr
