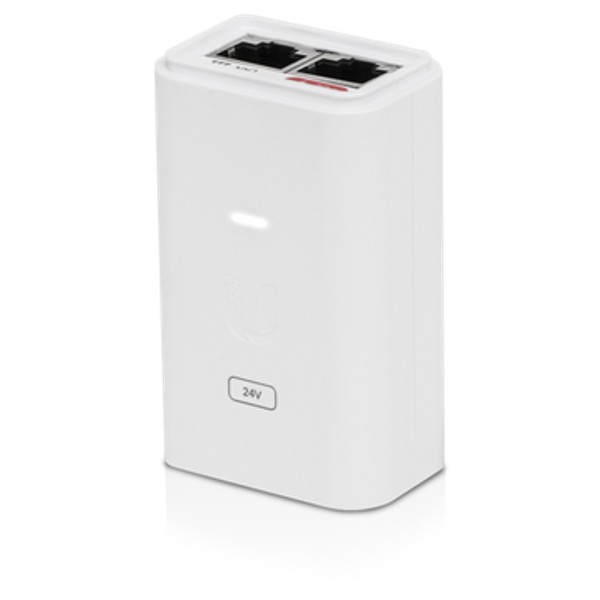

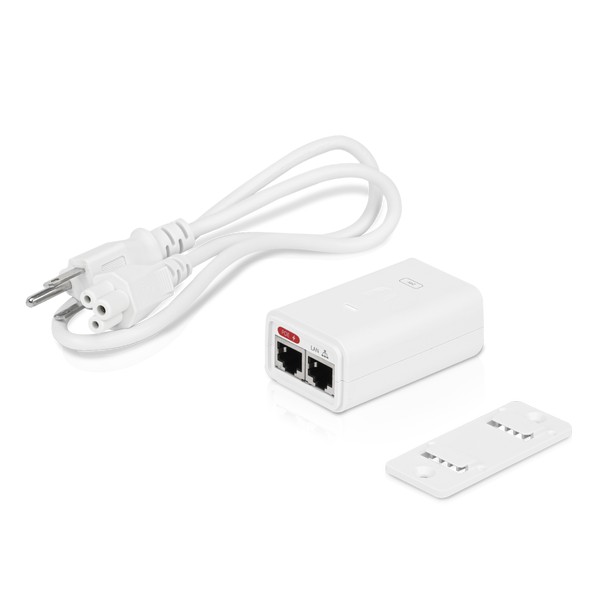

UBNT POE-24-7W-G-WH(EU), PoE Injector, 24V 7W, Gigabit White EU
[POE-24-7W-G-WH]
Price: 5,14€
 Order or Qty  Price
 > 500€  5+   5,09€
 > 1000€  10+   5,04€
 > 2000€  20+   4,99€
 > 5000€  40+   4,93€
 > 10000€  100+   4,88€
Prices exclude VAT

UBNT POE-24-7W-G-WH(EU), PoE Injector, 24V 7W, Gigabit White EU

In Stock: 2
Order Qty:

POE-24-7W-G-WH

Designed by Ubiquiti for Station/CPE Devices.

The POE-24 (24V/0.3A) features earth grounding/ESD protection, power LED, and is available in the EU (CEE 7/16) Version.

Specification:
Output Voltage: 24VDC @ 0.3A
Input Voltage: 90-260VAC @ 47-63Hz
Input Current: 0.3A @120VAC, 0.2A @230VAC
Inrush Current: <15A peak @120VAC, <30A peak
Efficiency: 70+%
Output Ripple: 1% Max
Switching Frquency: 200kHz
Line Regulation: +/- 0.5%
Load Regulation: +/- 1%
Operating Temperature:   -10°C to +60°C
Storage Temperature: -20°C to +85°C
Operating Humidity: 5% to 90% non condensing
Size (l x w x h): 85 x 55 x 33 mm
Weight: 115gr

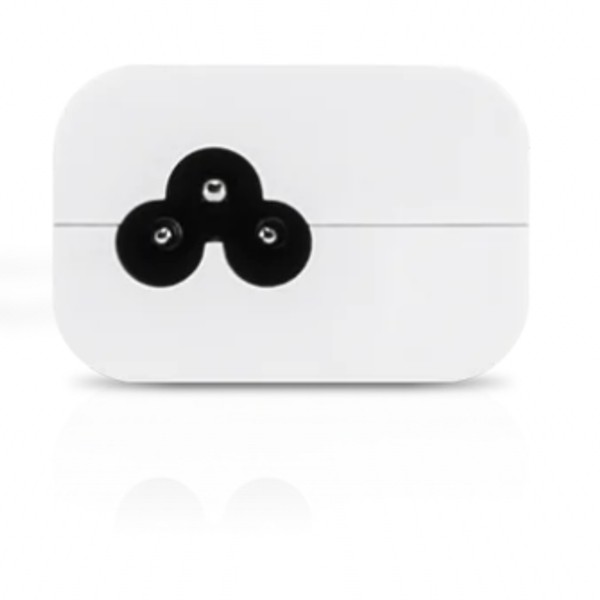

AC Connector: IEC-320 C6

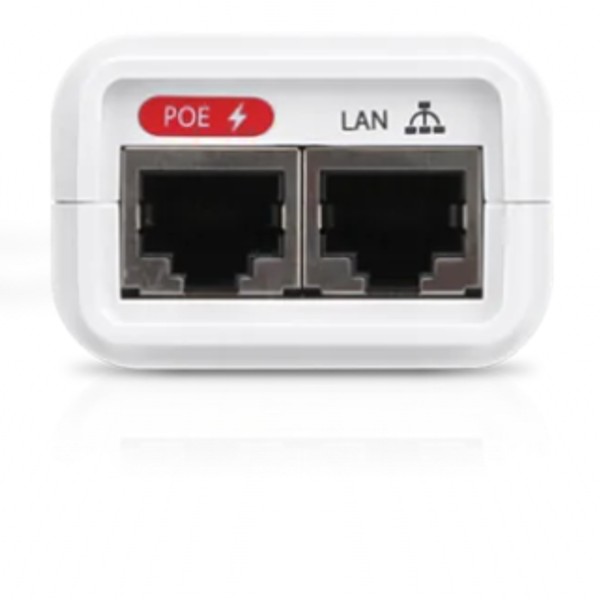

Data IN / POE: RJ45 Shielded Socket
80% Current Indicator: Power LED will change color
Surge Protection: Common Mode
Clamping Protection: 11V Data, 77.5V Power
Max Surge Discharge: 1200A (8/20uS) Power
Peak Pulse Current: 36A (10/1000uS Data)
Shunt Capacitance: <5pF data
Response Time: <1nS
Compliance: UL, EN55022 (CISPR22) class B, Meets CE
Special Features:
LAN Activity Indicator: Detects if LAN is connected to device
