Internet of Things » USB to UART » IOT-RS2TTLP
RS232 to TTL PCB Module
[IOT-RS2TTLP]
Price: 0,68€
 Order or Qty  Price
 > 500€  5+   0,67€
 > 1000€  10+   0,65€
 > 2000€  20+   0,64€
 > 5000€  40+   0,63€
 > 10000€  100+   0,61€
Prices exclude VAT

RS232 to TTL PCB Module

In Stock: 4
Order Qty:

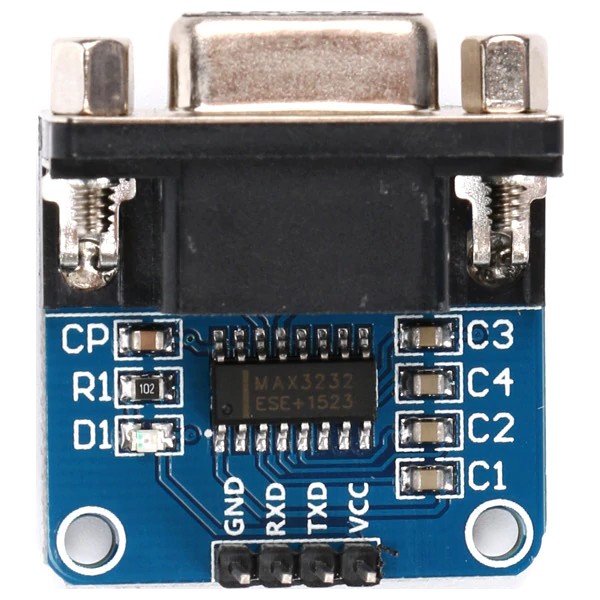

The RS232 to TTL Serial Interface Module is a board with the MAX3232 transceiver integrated circuit (IC). It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion.

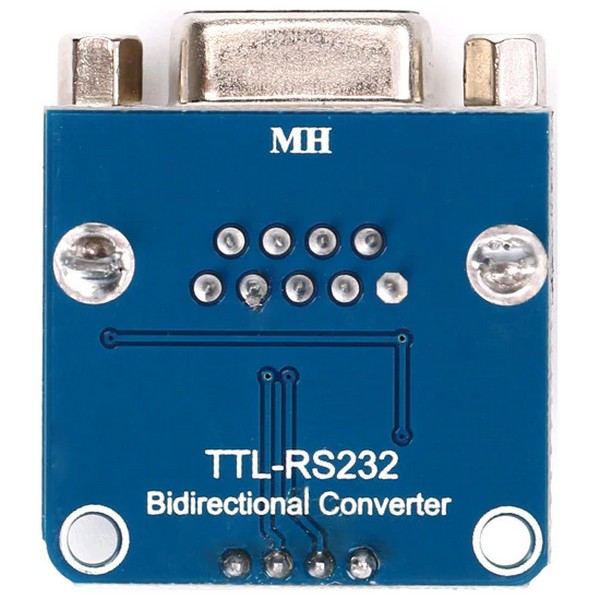

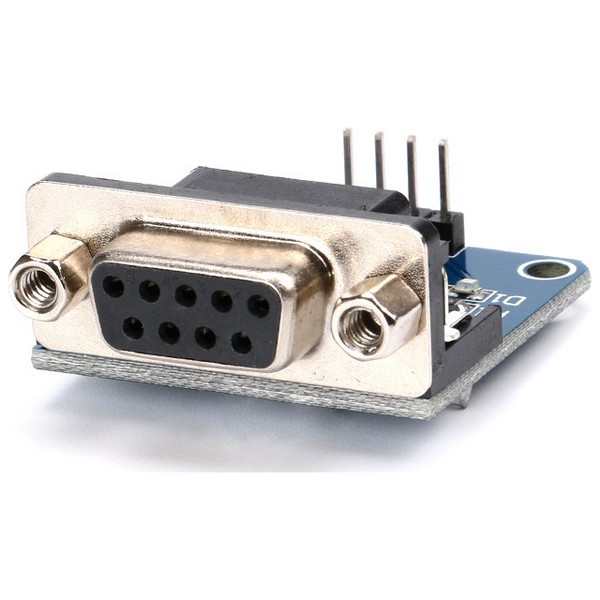

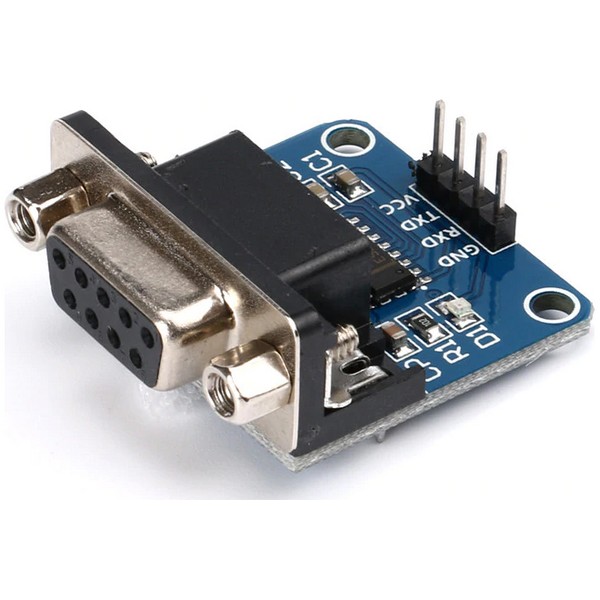

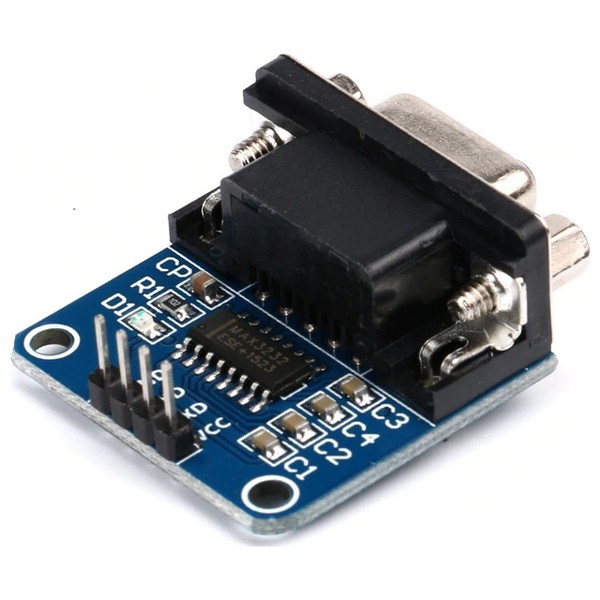

It comes with a DB9 connector soldered at one end, and four header pins at the other end. The DB9 connects directly to a COM port of a computer.

It has a maximum guaranteed data rate of 120 kbps, and the circuitry requires four 0.1µF charge-pump support capacitors.

These boards connect to systems with a UART  hence, they work with most microcontrollers.

Features:

  1. IC Chip: MAX3232
  2. Operating Voltage: 3.3-5.5V
  3. It can be used to program most microcontrollers
  4. Pre-assembled compact size board
  5. Operates up to 250 kbit/s


Additional Images:
