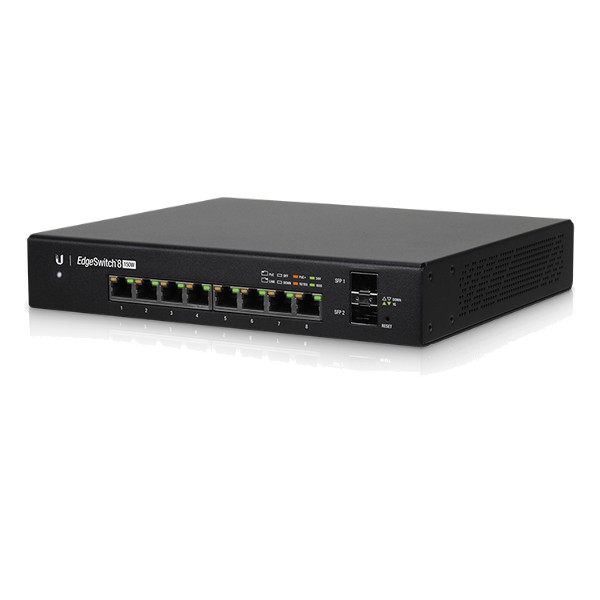

ES-8-150W - EdgeSwitch 8 150W
Build and expand your network with Ubiquiti Networks EdgeSwitch, part of the EdgeMAX line of products.
The ES-8-150W is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
It offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
By default the ES-8-150W automatically detects 802.3af/at connected devices. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.
The ES-8-150W can be powered with either 110-240V AC or 42-56V DC
|
Specifications: |
|
Dimensions |
204 x 43 x 235 mm |
|
Weight |
1.8 kg |
|
Total Non-Blocking Throughput |
10Gbps |
|
Max. Power Consumption |
150W |
|
Power Method |
100-240VAC/50-60Hz, DC 42-56V |
|
Power Supply |
AC/DC, Internal, 150W DC |
|
RJ45 Data Ports LEDs |
PoE, Speed/Link/Activity |
|
SFP Data Ports LEDs |
Speed/Link/Activity |
|
10/100/1000Mbps RJ45 Ethernet Ports |
8 |
|
1Gbps SFP Ethernet Ports |
2 |
|
Management Interface |
Ethernet In/Out of Band |
|
Certifications |
CE, FCC, IC |
|
Casing |
Desktop, Wall mount with brackets |
|
ESD/EMP Protection |
Air: ±24kV, Contact: ±24kV |
|
Operating Temperature |
-5 to 40°C |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Shock and Vibration |
ETSI300-019-1.4 Standard |
|
PoE: |
|
POE+ IEEE 802.3af/at |
Pins 1,2+, 3,6- |
|
24VDC Passive PoE |
Pins 4,5+,7,8- |
|
Max. PoE+ Wattage per Port by PSE |
34.2W |
|
Voltage Range 802.3at Mode |
50-57V |
|
Max. Passive PoE Wattage per Port |
17W |
|
24V Passive PoE Voltage Range |
20-27V |
