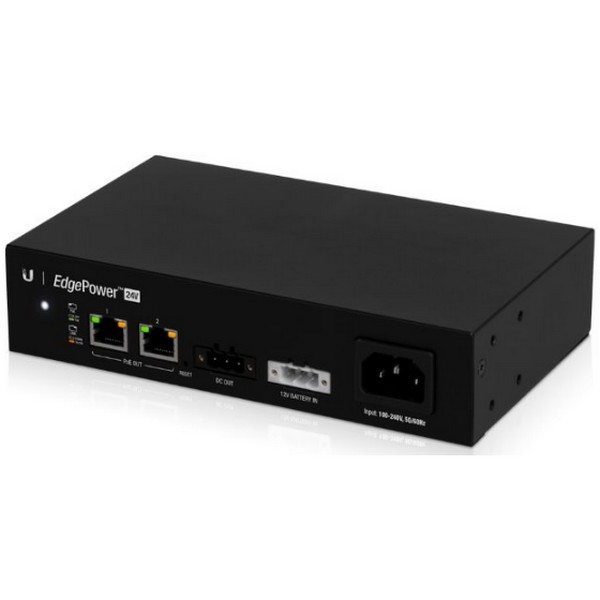

EP-24V-72W
Protect your WISP site against power loss with the EdgePower, a convenient UPS device with dual PoE output ports.

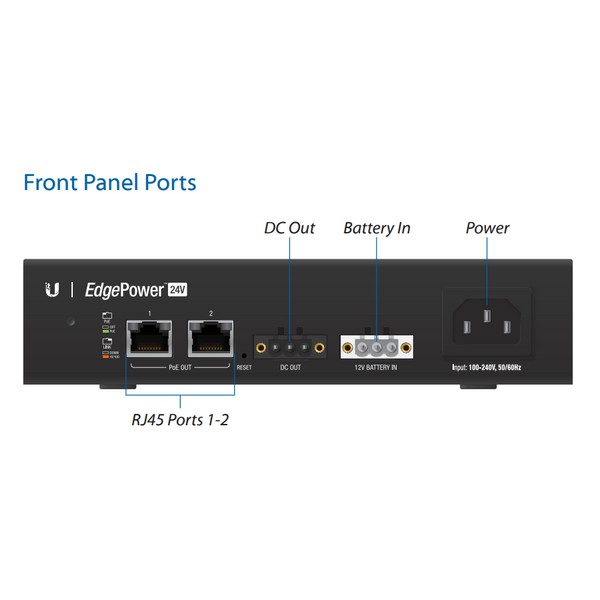

The rack-mountable EdgePower 24V features 24VDC and 2 RJ45 PoE Ports.
You can receive alerts in the event of a power outage, and the EdgePower 24V offers a 12V lead acid battery input for redundancy if the AC input fails over (battery not included).
Designed for convenient management, the EdgePower allows you to configure and monitor PSU features in a graphical user interface.
You can also use UNMS (Ubiquiti Network Management System) for remote management, and SNMP is available to monitor the EdgePower for issues that warrant attention.
|
Specifications: |
|
Dimensions |
192 x 43.7 x 115 mm |
|
Weight |
650 g |
|
Interface Networking |
10/100 Mbps RJ45 Ports |
|
Interface Management |
Ethernet In-Band |
|
PoE Output |
24VDC Passive PoE |
|
DC Output |
24V, 3A |
|
Power Method AC Input |
100-240VAC, 50-60 Hz, Universal Input |
|
Power Method Battery Input |
DC Terminal Block |
|
Power Supply AC Input |
AC/DC 72W |
|
Power Supply Battery Input |
12VDC Lead Acid Battery* |
|
Max. Power Consumption - System |
2W |
|
Max. Power Consumption - Output |
72W |
|
LEDs System |
Status |
|
LEDs RJ45 Data Ports |
PoE; Link/Activity |
|
Operating Temperature |
0 to 40°C |
|
Operating Humidity |
10 to 90% Noncondensing |
