POE-24-12W-O

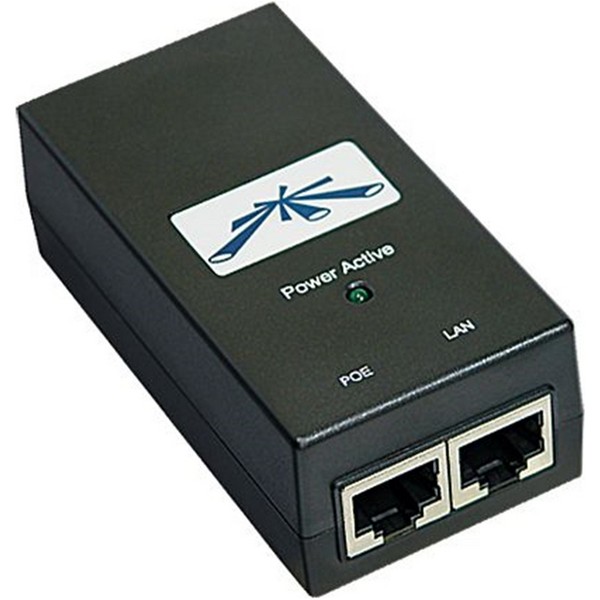

UBNT POE-24-12W-O, PoE Injector, 24V - Bulk - Old type
[POE-24-12W-O]
The product is
no longer available
Prices exclude VAT

UBNT POE-24-12W-O, PoE Injector, 24V - Bulk - Old type

POE-24-12W old type - Bulk - Packed in Poylbag

Designed by Ubiquiti for Station/CPE Devices.

The POE-24 (24V/0.5A) features earth grounding/ESD protection, power LED, and is available in the EU (CEE 7/16) Version.

Specification:
Output Voltage: 24VDC @ 0.5A
Input Voltage: 90-260VAC @ 47-63Hz
Input Current: 0.3A @120VAC, 0.2A @230VAC
Inrush Current: <15A peak @120VAC, <30A peak
Efficiency: 70+%
Output Ripple: 1% Max
Switching Frquency: 200kHz
Line Regulation: +/- 0.5%
Load Regulation: +/- 1%
Operating Temperature:   -10°C to +60°C
Storage Temperature: -20°C to +85°C
Operating Humidity: 5% to 90% non condensing
Size (l x w x h): 85 x 55 x 33 mm
Weight: 115gr
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
80% Current Indicator: Power LED will change color
Surge Protection: Common Mode
Clamping Protection: 11V Data, 77.5V Power
Max Surge Discharge: 1200A (8/20uS) Power
Peak Pulse Current: 36A (10/1000uS Data)
Shunt Capacitance: <5pF data
Response Time: <1nS
Compliance: UL, EN55022 (CISPR22) class B, Meets CE
Special Features:
LAN Activity Indicator: Detects if LAN is connected to device

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
