PoE » 802.3af/at Splitter » EZ-PSA05U-G
EZ-PSA05U-G, 802.3af/at - 48v to 5V/2A Gbit PoE Splitter - Micro USB - with isolation
[2306][EZ-PSA05U-G]
Price: 6,90€
 Order or Qty  Price
 > 500€  5+   6,76€
 > 1000€  10+   6,62€
 > 2000€  20+   6,49€
 > 5000€  40+   6,35€
 > 10000€  100+   6,21€
Prices exclude VAT

EZ-PSA05U-G, 802.3af/at - 48v to 5V/2A Gbit PoE Splitter - Micro USB - with isolation

In Stock: 44
Order Qty:
UPC:728615667035

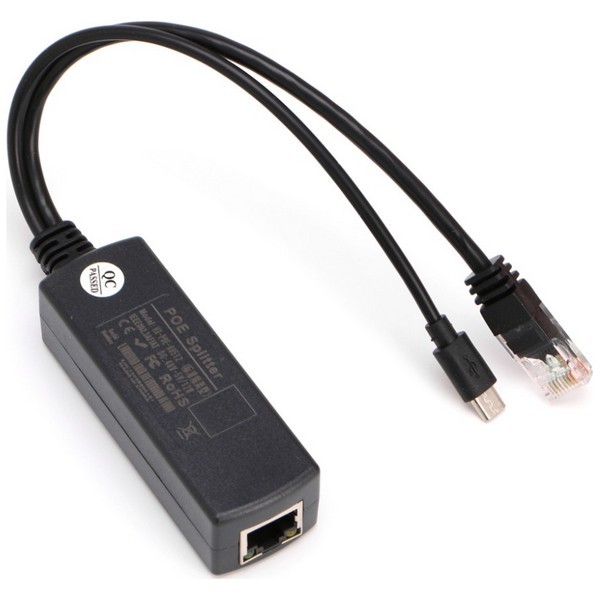

EZ-PSA05U-G is an 802.3af/at ISOLATED splitter to power non-PoE enabled devices. With isolation transformer

It accepts 802.3af/at PoE to output fixed 5v/2.4A via the Micro USB and 10/100/1000 RJ45 Jack.

This way a non PoE enabled device can be powered remotely via any 802.3af/at PoE Injector or PoE Switch

Input / Output Specifications :
DC Input Voltage Max 802.3af/at 48V DC
DC Output Voltage 5V DC
Max Output Current 2.4A Max.
DC Jack Micro USB
Operating Temperature -10oC ~ +60oC
Storage Temperature -20oC ~ +70oC
Humidity Up to 90%
Weight 58gr
Dimensions 290mm * 28mm * 21mm


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
