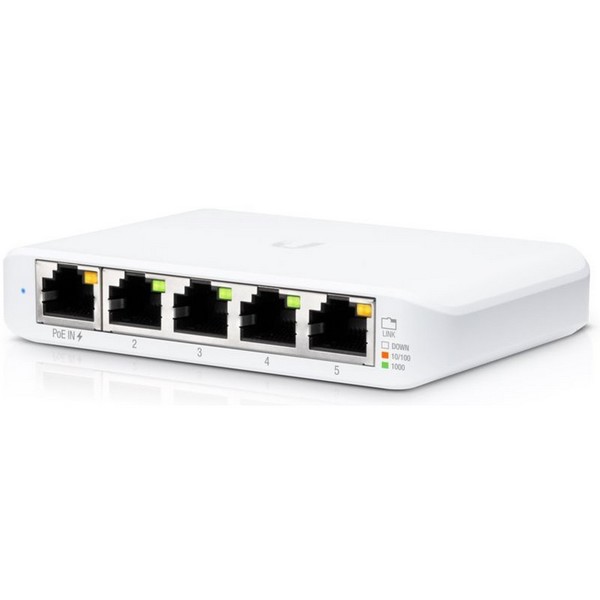

USW Flex Mini - 5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter
Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
|
Specifications |
|
Dimensions |
107.16 x 70.15 x 21.17 mm |
|
Weight |
150 gr |
|
Networking Interfaces |
(5) 10/100/1000 Mbps RJ45 Ports |
|
PoE In Interface |
802.3af/at PoE (Pins 1, 2+; 3, 6-) |
|
Max. Power Consumption |
2.5W |
|
Power Method |
USB Type C, 5V
802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A) |
|
Power Supply |

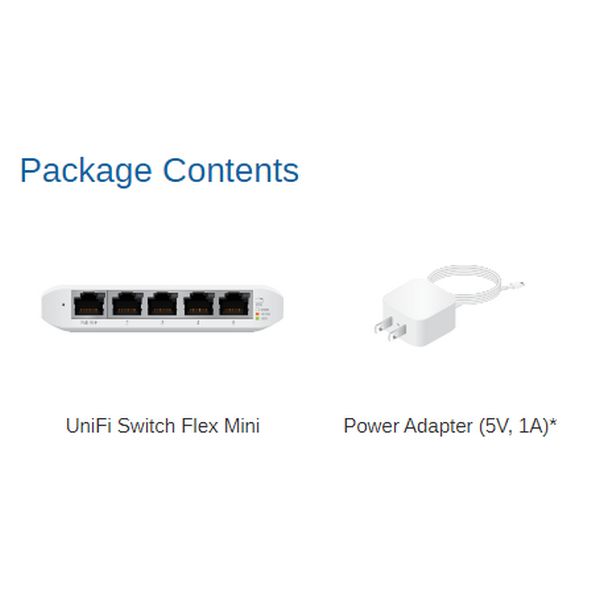

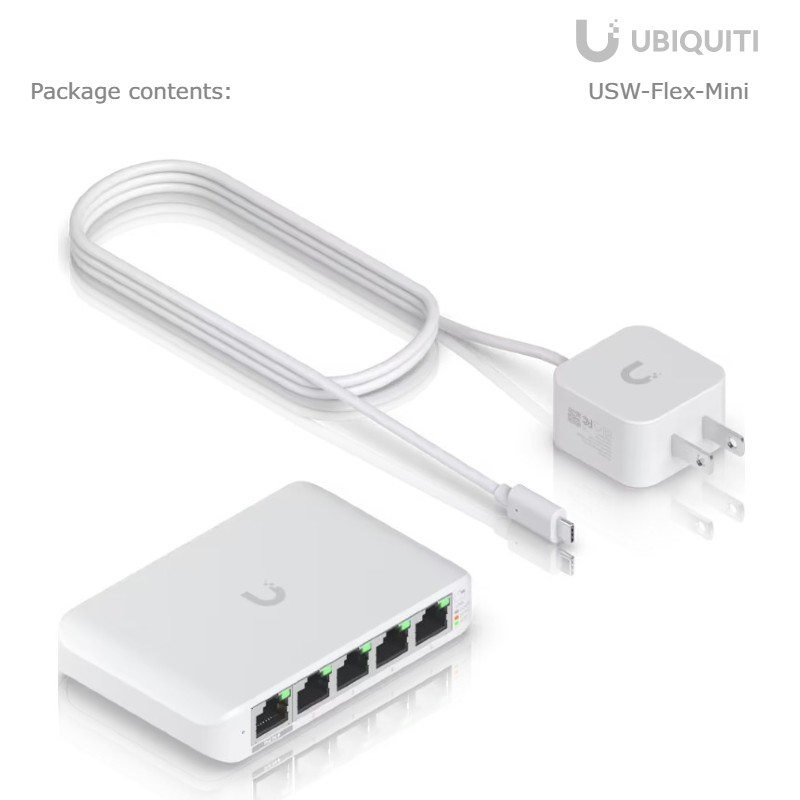

5V, 1A Power Adapter (Included only with the single-pack of the USW-Flex-Mini) |
Voltage Range
USB Type C
802.3af/at PoE |
4.7 - 5.2VDC
44 - 57VDC |
LEDs
System
RJ45 Data Ports |
Status
Link/Speed/Activity |
|
ESD/EMP Protection |
± 16kV Air, ± 12kV Contact |
|
Operating Temperature |
-5 to 45°C |
|
Operating Humidity |
10 to 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
