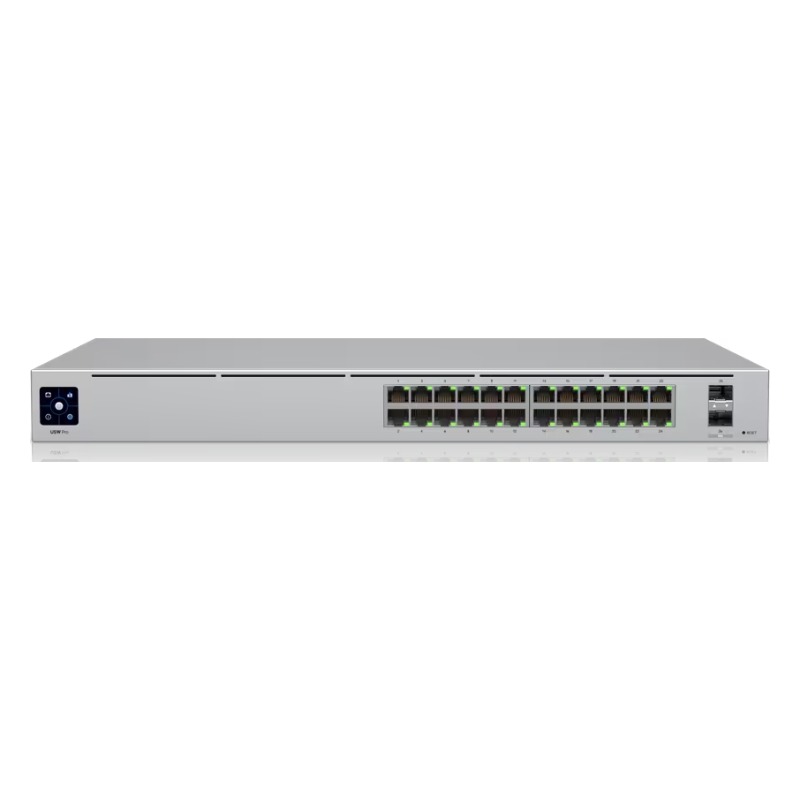

UniFi Switch PRO 24
UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

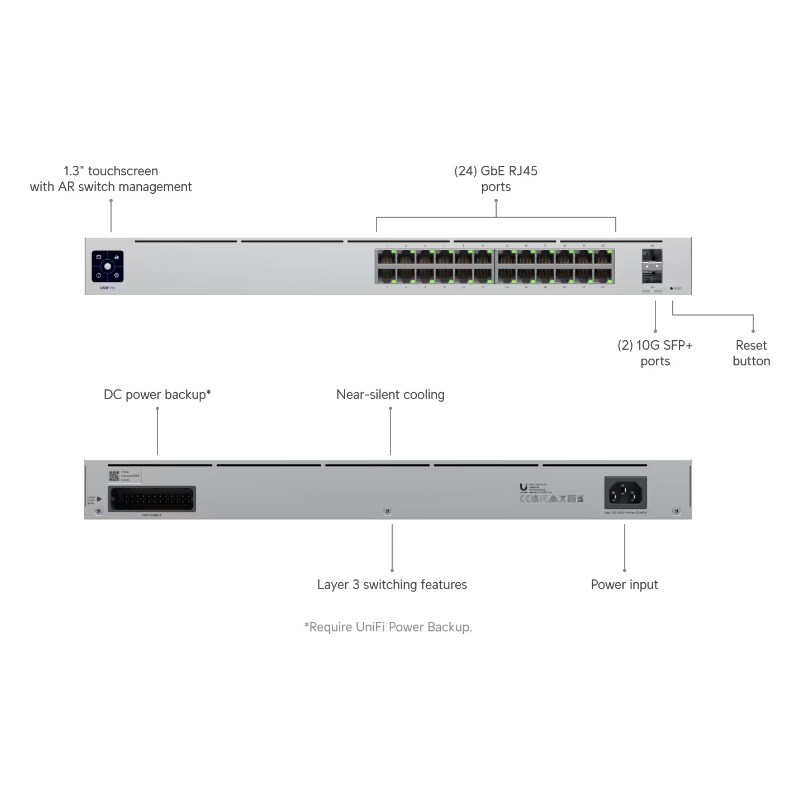

Features :
-
(24) Gigabit RJ45 ports
-
(2) 10G SFP+ ports
-
Layer 2 and Layer 3* features
-
UniFi SmartPower RPS DC input
-
Near-silent cooling
-
1.3" touchscreen display
-
Managed by UniFi Network Controller
|
Specifications: |
|

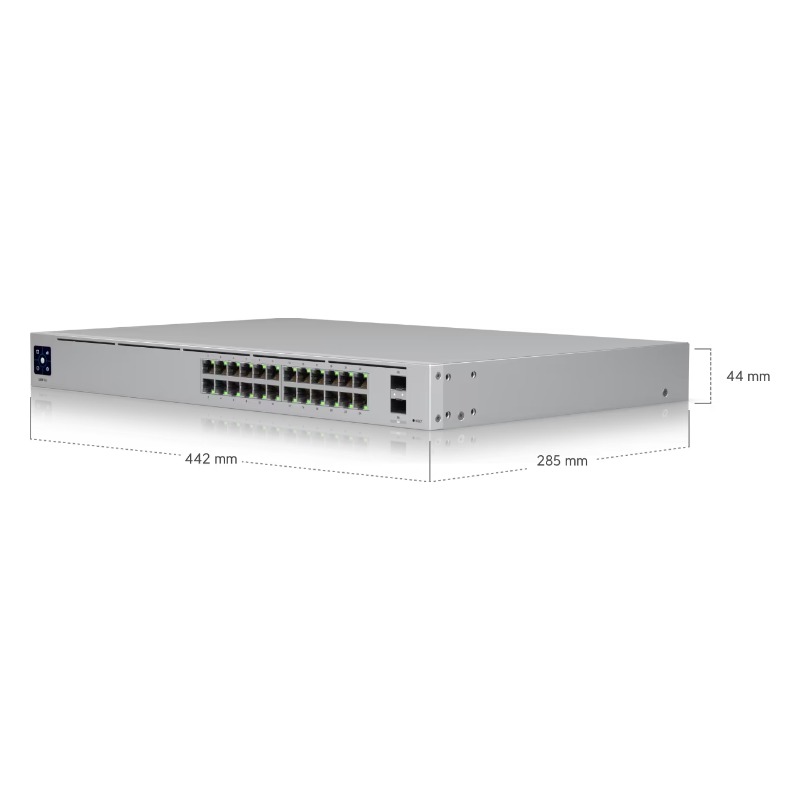

Dimensions |
442 x 285 x 44 mm |
|
Port Layout |
1 GbE RJ45: 24, 10G SFP+: 2 |
|

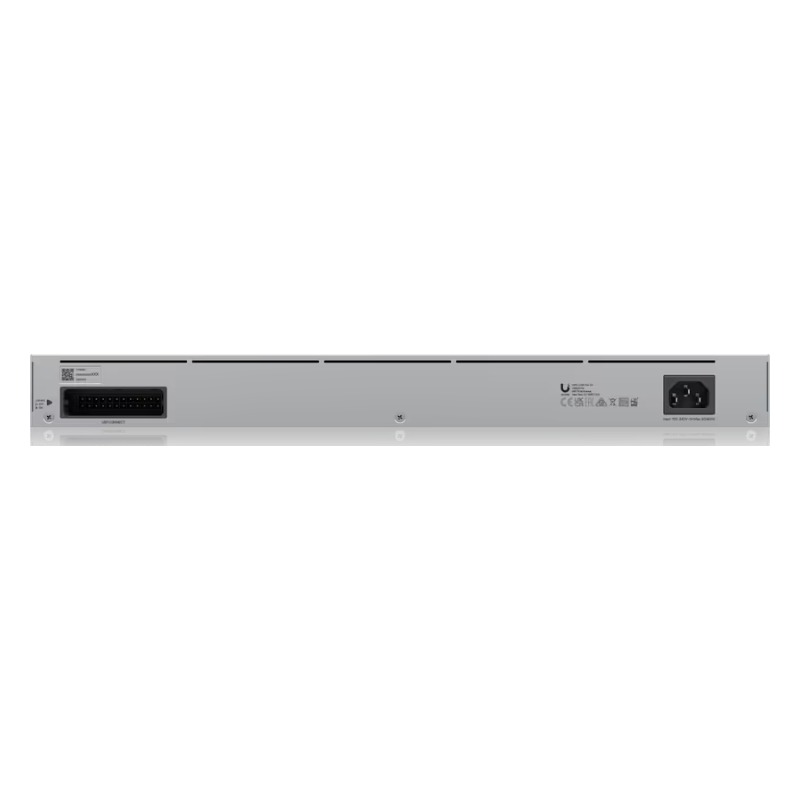

Redundancy |
DC Power Backup |
|
Layer 3 |
✓ |
|
Form Factor |
Rack mount (1U) |
|
Switching Capacity |
88 Gbps |
|
Total Non-Blocking Throughput |
44 Gbps |
|
Forwarding Rate |
65 Mpps |
|
Supported VLANs |
1,000 |
|
MAC Address Table Size |
16,000 |
|
L3 Table Size |
ARP Entries: 768, IPv4 Routes: 64
|
|
Packet Buffer Size |
2 MB |
|
Access Lists |
IPv4: 128, MAC: 128
|
|
Layer 3 Features |
DHCP Server (Local Networks) ✓
DHCP Relay ✓
Inter-VLAN Routing (Local Networks) ✓
Static Routing (Local Networks) ✓
|
|
Max. Power Consumption |
30W |
|
Power Method |
Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input
|
|
Power Input Method |
AC input |
|
Power Supply |
AC/DC, internal, 36W |
|
Supported Voltage Range |
100—240V AC |
|
Management |
Ethernet, AR |
|
Heat Dissipation |
102.36 BTU/hr |
|
Weight |
Without mounting brackets: 3.5 kg
With mounting brackets: 3.6 kg
|
|
Enclosure Material |
SGCC steel |
|
Mount Material |
SGCC steel |
|
Supported Rack Depth |
400~1200 mm |
|
LCM Display |
1.3" touchscreen |
|
ESD Protection |
Air: ± 16kV, contact: ± 12kV |
|
Ambient Operating Temperature |
-5 to 45° C |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC, Anatel |
|
Application Requirements |
UniFi Network, Version 5.12.11 and later |

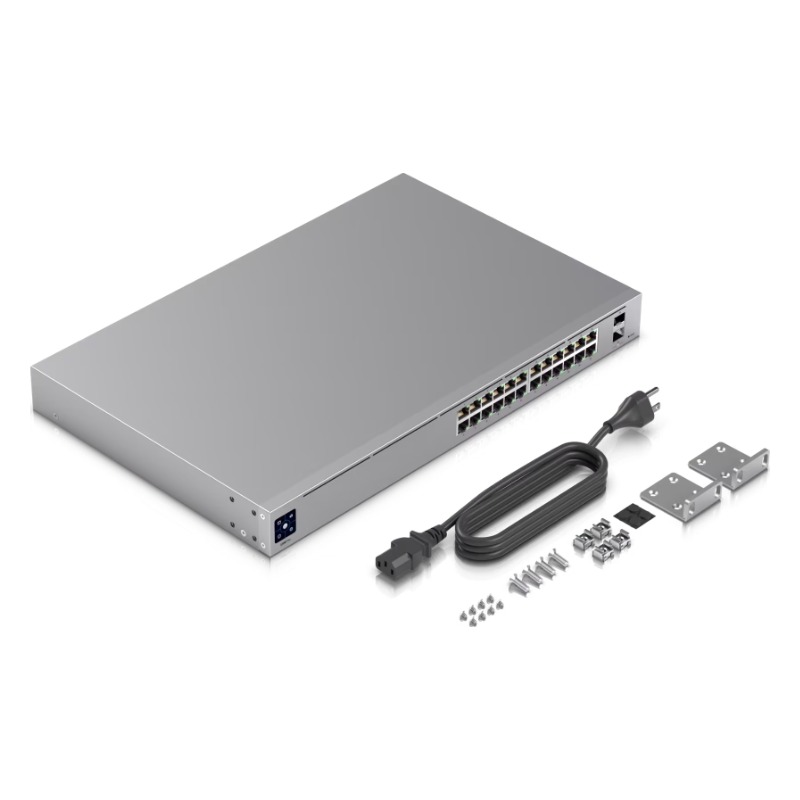

| Package Contents: |
|---|
| 1 x USW-Pro-24
|
| 1 x AC Power Cable
|
| 1 x Rackmount kit |
|
