Ubiquiti POE-24-24W-5P, Gigabit PoE Injector, 24V/1A (24W), 5-Pack
[2491][POE-24-24W-5P]
Price: 45,20€
 Order or Qty  Price
 > 500€  5+   44,75€
 > 1000€  10+   44,29€
 > 2000€  20+   43,84€
 > 5000€  40+   43,39€
 > 10000€  100+   42,94€
Prices exclude VAT

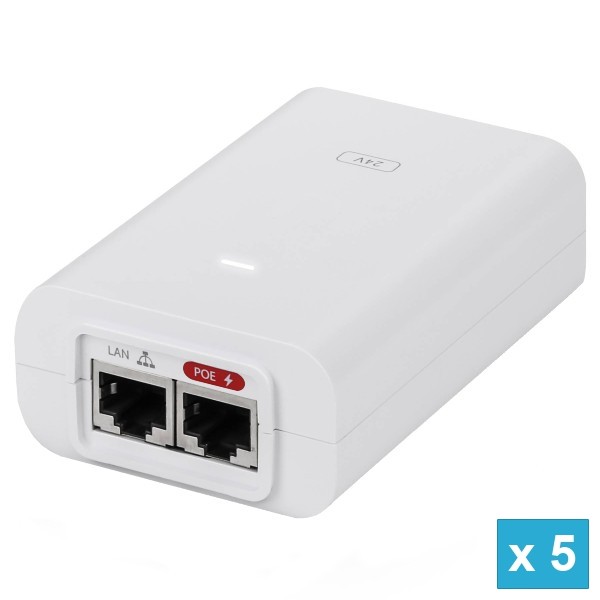

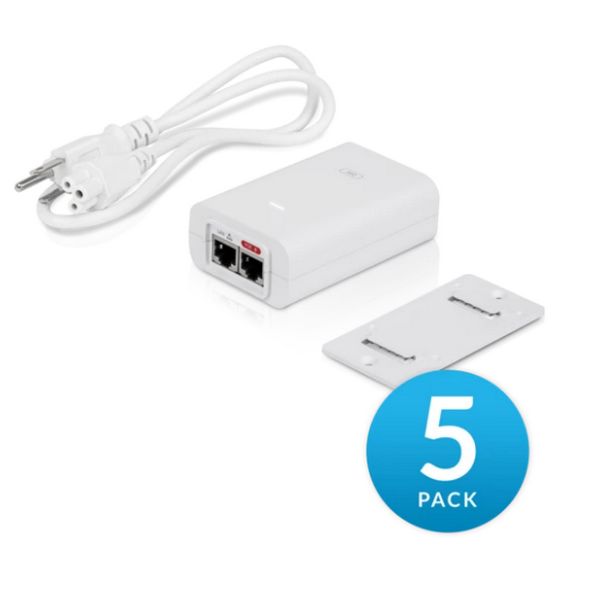

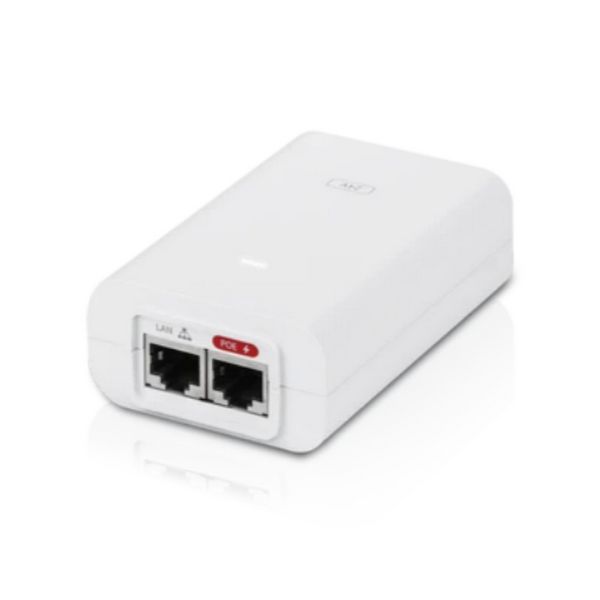

Ubiquiti POE-24-24W-5P, Gigabit PoE Injector, 24V/1A (24W), 5-Pack

In Stock: 2
Order Qty:
UPC:817882024921

POE-24-24W-5P

High-quality, stabilized Gigabit PoE power adapter with earthing, LED indication and output voltage 24V and max. current 1A. The maximum output power is 24W.

Specifications
Dimensions 88 x 57 x 33 mm
Weight 135 g
Output Voltage 24VDC @ 1.0A
LAN Activity Indicator No
Gigabit LAN Port No
Remote Reset Capability Yes
Reset Button Yes
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency 0.8
Output Ripple 1% Max.
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering
Operating Temperature 0 to 40° C
Storage Temperature -30 to 70° C
Operating Humidity 35 to 95% Noncondensing

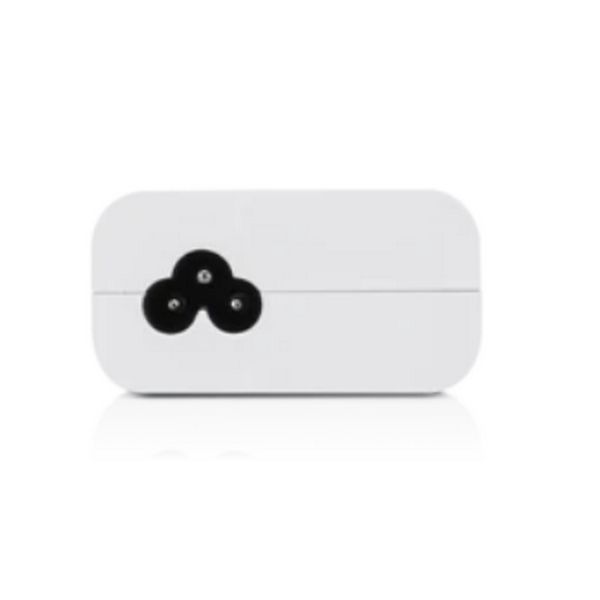

AC Connector IEC-320 C6
Data IN/POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
