5 Port Fast Ethernet Switch

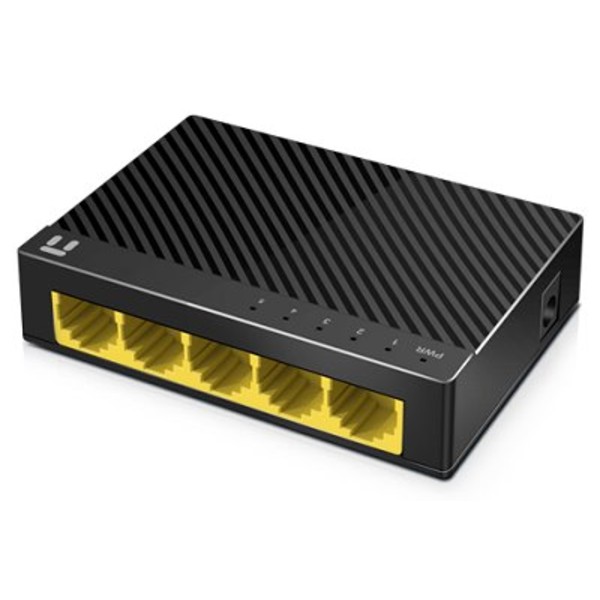

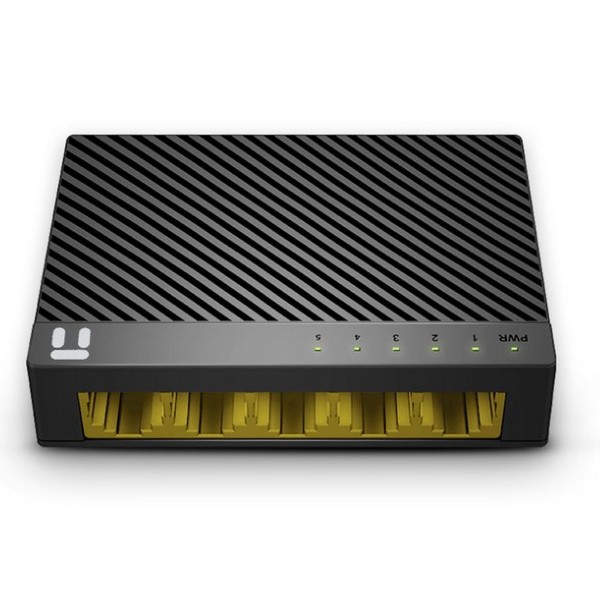

This netis ST3105GC Fast Ethernet Switch provides an easy way to expand your wired network with 5 10/100/1000Mbps Auto-Negotiation RJ45 ports.
All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports.
Together with the plug-and-play & Green Power feature, it may ensure you a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your network to a 1000Mbps network.
|
Hardware |
|
Interface |
5 * 10/100/1000M RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
|
LED |
PWR, 1-5 |
|
Power Supply |
DC 5V/600mA(Output) |
|
Dimensions (L x W x H ) |
85x 75 x 22 mm |
|
Standard |
10Base-T: UTP Cat.3 or up
100Base-TX: UTP Cat.5 or up
1000Bast-T: UTP Cat.5 or up
|
|
Access Method |
CSMA/CD |
|
Transmission Method |
Store and Forward |
|
Data Transmission Rate |
10/100/1000Mbps(Half-duplex)
20/200/2000Mbps(Full-duplex) |
|
MAC Address Table |
2K |
|
Certification |
FCC, CE, BSMI |
|
Operating Temperature |
0℃~40℃ |
|
Operating Humidity |
5%~90% non-condensing |
